Document 7100.001784 Version 5.3 02/2010
Instruction Manual
PU/PI and PS10
Differential Pressure
Transducers
halstrup-walcher GmbH
Stegener Straße 10
D-79199 Kirchzarten
Germany
Phone: +49 (0) 76 61/39 63–0
Fax:
+49 (0) 76 61/39 63–99
E-Mail: info@halstrup-walcher.com
Internet: www.halstrup-walcher.com
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for halstrup-walcher PU10
Summary of Contents for halstrup-walcher PU10

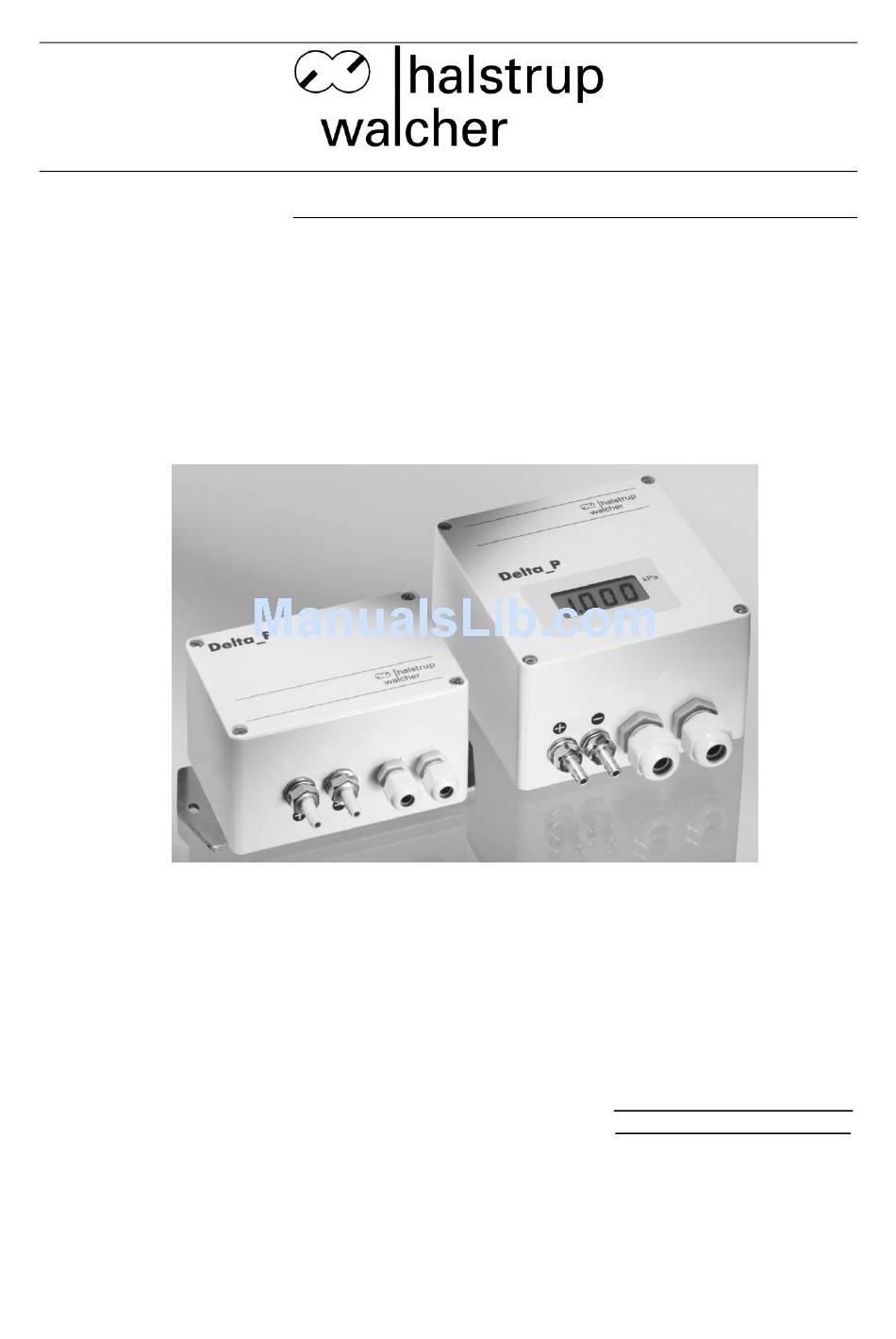

- Page 1 Instruction Manual PU/PI and PS10 Differential Pressure Transducers halstrup-walcher GmbH Stegener Straße 10 D-79199 Kirchzarten Germany Phone: +49 (0) 76 61/39 63–0 Fax: +49 (0) 76 61/39 63–99 E-Mail: info@halstrup-walcher.com Internet: www.halstrup-walcher.com Document 7100.001784 Version 5.3 02/2010...
-
Page 2: Table Of Contents
PU/PI and PS10 Instruction Manual Table of Contents 1 Safety precautions ........................ 4 1.1 Appropriate use ........................ 4 1.2 Shipping, assembly, electrical connections and start-up ..........4 1.3 Troubleshooting, maintenance, repairs, disposal ............4 1.4 Symbols ........................... 5 2 Instrument description ......................6 3 Start-up .......................... - Page 3 PU/PI and PS10 Instruction Manual Purpose of instruction manual This instruction manual describes the features of the PU/PI and PS10 differential pressure transducers and provides guidelines for their use. Improper use of this instrument or failure to follow these instructions may cause injury or equipment damage.
-
Page 4: Safety Precautions
PU/PI and PS10 Instruction Manual Safety precautions 1.1 Appropriate use In addition to differential pressure data, the PU/PI and PS10 differential pressure transducers also record positive and negative overpressures. Always observe the operating requirements—particularly the permissible supply voltage—indicated on the rating plate and in the "Technical data” section of this manual. -
Page 5: Symbols
PU/PI and PS10 Instruction Manual The electronic components of the instrument contain environmentally hazardous materials and materials that can be reused. For this reason the instrument must be recycled in accordance with the environmental guidelines of the jurisdiction in question once it has been taken permanently out of service. 1.4 Symbols The symbols given below are used throughout this manual to indicate instances when improper operation could result in the following hazards:... -
Page 6: Instrument Description
PU/PI and PS10 Instruction Manual Instrument description The PU/PI and PS10 pressure transducers are pneumatic, electronic sensors for measuring overpressures, vacuum pressures and differential pressures. Typical applications include, for instance, pressure measurements in air-conditioning and ventilation ducts. At the heart of the transducer is a pressure measurement capsule with a beryllium bronze membrane spring, which is displaced by the pressure difference between the two chambers of the measurement capsule. -
Page 7: Supply Voltage Connections In The Instrument
PU/PI and PS10 Instruction Manual Supply voltage connections in the instrument: Figure 1: Configuration of circuit board: (not all components are shown) Terminal Supply voltage 24/115/230 V~ 50/60 Hz 24/115/230 V~ 50/60 Hz +20.5 V...28.5 VDC ground (GND) Observe the required supply voltage (see rating plate) as well as the connection diagram located on the housing cover / circuit board mount. -
Page 8: Calibrating The Zero Point
PU/PI and PS10 Instruction Manual Display-connector Calibrating the zero point Please remember that it takes roughly 30 to 60 minutes for the pressure transducer to warm up after it is switched on. The output signal may not remain stable during this period. It is recommended that the zero point after a long operating time (approximately 6 months) is checked and if necessary calibrate it again. -
Page 9: Troubleshooting
PU/PI and PS10 Instruction Manual Troubleshooting Error Description Potential Cause Corrective Action supply voltage is not connect correct supply voltage no output signal connected connect the correct supply voltage incorrect supply voltage (see rating plate). defective fuse ... -
Page 10: Technical Data
PU/PI and PS10 Instruction Manual Technical data Measurement data measurement ranges 0...50 Pa to 0...100 kPa or ±50 Pa to ±100 kPa (others available upon request) overload capacity 10 x the final value of the measurement range (for measurement ranges 20 kPa) 2 x the final value of the measurement range (for measurement ranges >... - Page 11 PU/PI and PS10 Instruction Manual Electrical data power consumption max. 1.2 W supply voltage 24 VDC +20% / -15% (filtered, permissible peak-to-valley ratio = 1000 mV) 230VAC, 115VAC, 24VAC +6 % / -15 %, 50/60 Hz (optional) minimum load resistance R ...
-
Page 12: Dimension Drawings
PU/PI and PS10 Instruction Manual Dimension drawings PU/PI/PS10 (standard) PU/PI/PS10 with LCD Option LCD...
