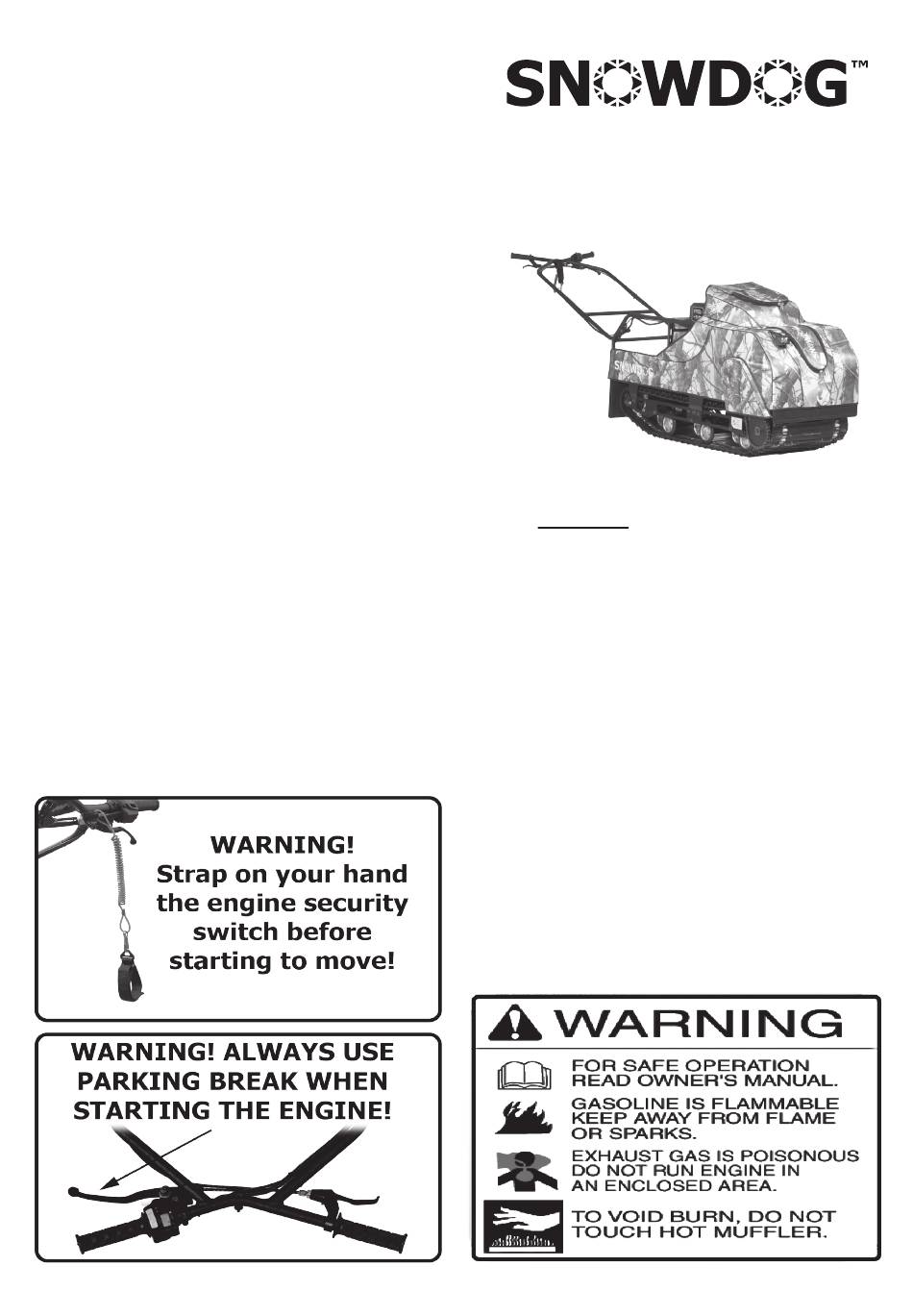

SNOWDOG COMPACT B7ZE L Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

1 Preamble

Thank you for purchasing the "SNOWDOG"!
To get the most of your SNOWDOG, please read this manual
carefully. Following technical instructions and safety tips
ensures continuous years of reliable product usage.
"SNOWDOG" is a compactly designed and highly reliable
SNOWDOG, equipped with a quality Briggs & Stratton engines
and ready for off-road work or recreation.
Contents
1. Preamble ...............................................................1
2. Safety tips ..............................................................1
3. Introduction ...........................................................1
5. Overview ..............................................................3
6. Basic controls ........................................................3
7. Packaging ..............................................................4
8. SNOWDOG set-up ...................................................5
9. Operating the SNOWDOG ........................................6
10. Storage ..................................................................7
11. Pre-start engine inspection ......................................8
12. Fueling .................................................................8
13. Starting the engine ................................................8
14. Start drive .............................................................8
15. Stopping the engine ...............................................8
16. Reverse gearbox* ...................................................9
17. Maintenance tips ....................................................9

2 Safety tips

This Owner's manual contains important information on safety
tips and operating instructions for SNOWDOG. In case of resale,
please transfer this document and the engine service manual
to the next SNOWDOG owner due to the importance of the
information contained.
Please read this manual carefully before operating the
SNOWDOG. Non-compliance with the following rules and
instructions may cause serious damage and even injuries.
SNOWDOG operating safety tips and instructions are marked
with "CAUTION!" tag listed herein.
OWNER`S MANUAL
SNOWDOG COMPACT
SNOWDOG STANDARD
CAUTION!
Y
1. Before operating the SNOWDOG you must read the Owner's
manual and engine operator's manual.
2. It is prohibited to operate the SNOWDOG for minors under 16
years old, and not recommended to operate SNOWDOG for
people who are not capable of safe operating due to different
reasons.
3. It is prohibited to operate the SNOWDOG under the influence
of alcohol and/or drugs .
4. It's prohibited to use SNOWDOG without the chain protection
cover, mud flaps and emergency engine shutdown switch.
5. Operating a faulty or defective SNOWDOG unit is prohibited.
6. Riding the SNOWDOG on public roads and trails is strictly
prohibited.
7. SNOWDOG is designated strictly for outdoor use. Indoor use
is prohibited.

3 Introduction

The purpose of this manual is to familiarize you with the
SNOWDOG maintenance and operation procedures, and give
you troubleshooting tips. SNOWDOG «SNOWDOG Compact»
and «SNOWDOG Standard» are towing modules designed for
transporting cargo in the luggage compartment, hauling cargo
on sledge and skis over ice designated and snow-covered
terrains. SNOWDOG is lightweight and compact, for convenient
storage and transport.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPACT B7ZE L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SNOWDOG COMPACT B7ZE L

Summary of Contents for SNOWDOG COMPACT B7ZE L

  • Page 1: Table Of Contents

    1. Before operating the SNOWDOG you must read the Owner’s manual and engine operator’s manual. 17. Maintenance tips ............9 2. It is prohibited to operate the SNOWDOG for minors under 16 years old, and not recommended to operate SNOWDOG for 2 Safety tips people who are not capable of safe operating due to different This Owner’s manual contains important information on safety...

  • Page 2: Technical Specifications For "Snowdog

    • Do not fold the steering handles while the engine is running. • Please do not use the parking brake during the ride. It may cause the loss of control of SNOWDOG, trauma an damage the CVT. • Before starting the engine please make sure the throttle control lever moves freely and is not fixed.

  • Page 3: Overview

    6. Muffler. 7. Hooking device. 8. Transmission chain. 9. Track. 6.1 Snowdog identification 10. Axle bearings (self-centering). Serial no. is placed on the front part of the chassis, 11. Driven pulley CVT. It is also shown on the back part of the chassis using point 12.

  • Page 4: Packaging

    Dual-sided WARNING label #4 Information label with serial no. 7 Packaging SNOWDOG delivery set contents: 1. SNOWDOG - 1 pc. 2. Support bracket - 1 pc. 3. Battery - 1 pc. 4. Eye bolt - 1 pc. WARNING label #1 and #2 Owner’s documentation:...

  • Page 5: Snowdog Set-Up

    WARNING! Do not turn on the headlight when Then put fabric cover on the Snowdog. When you put on the the battery is not connected! cover make sure that there is a distance between cover and muffler of not less than 4 inches (100mm). If the distance is NOTE less the 4 inches (100mm), bend the cover bracket.

  • Page 6: Operating The Snowdog

    3. Check the chain tension – the chain should be neither loose, 9.1 Driving nor tight. SNOWDOG is operated by a driver in a standing position. 4. Check the throttle and brake cable (lubricate if needed). Throttle arm on the right side of the steering handles controls 5.

  • Page 7: Storage

    This ensures are missing or worn out - insert new ones. the safe preservation of the SNOWDOG for up to 12 months when (For models with SAFARY CVT) stored normally. For the next 12 months of storage, reproduce the steps above.

  • Page 8: Pre-Start Engine Inspection

    2. Release the parking brake. before operating. Slowly squeeze lever to engage the transmission and to start the SNOWDOG moving. Increase pressure on the throttle lever until desired speed is reached. CAUTION Running the engine with insufficient oil level will cause damage and is not covered by warranty.

  • Page 9: Reverse Gearbox

    Before starting any movement check the condition and tension of the track. Over tension leads to engine power loss and causes overloads. Place the SNOWDOG on a flat surface. Place a rigid metal of wooden «straight edge» on top of the track supported by the front and back rollers.
  • Page 10 Snowdog movement. 3. Check the chain tension. Repeat step 2 if necessary. 4. Tighten six bolts to the engine mounts of the Snowdog chassis platform.
  • Page 11 2. If the lever adjustment is not enough to set up the free lever The three spring trolley may turn upside-down if Snowdog is motion, adjust the brake caliper and check on the condition of driven over obstacles, such as logs, rocks, etc.
  • Page 12 17.7 Brake caliper dismantling Adjusting the brake caliper Fully loosen the tension of the brake cable on the lever, as Loosen the screws 1 and disassemble the caliper. described in paragraph 17.6.1. Ensure ease of pushing and return to the starting position of the lever and the parking brake cable.
  • Page 13 17.9 Reverse gearbox* 2. Let the used oil drain completely then place back the oil drain hole bolt and washer. Tighten up the oil drain *For models with Reverse gearbox. hole bolt with a torque 15 ft·lb (21 Н*м). 17.9.1 Oil change NOTE 1.
  • Page 14 17.10 Snowdog`s general electric circuit scheme* *For engines detailed electric circuit please contact Briggs&Stratton dealers...
  • Page 16 If a difference is found between this Manual and your Snowdog, please contact your Snowdog dealer for the latest information. The service life of the Snowdog, subject to the rules of operation and maintenance specified in the Manual, is 5 years.
