- Page 1 REFRIGERATOR SR-L62..., SR-L65... SR-L67..., SR-L70... OWNER’S INSTRUCTIONS DA68-00998A REV(0.0)
-
Page 2: Table Of Contents
• When you want to refrigerate the storage foods quickly. Door alarm • When the refrigerator door is left open for more than two minutes, a musical alarm is automatically triggered. This feature helps you save electricity and preserve stored foods. -
Page 3: Warnings / Safety Precautions
• If the water spills on to any electrical parts, it may lead to fire or electric shock. Do not install the refrigerator/freezer in a damp place, where it could be splashed with water. • Incorrect insulation of the electrical parts may cause an electric shock or fire. - Page 4 • Do not damage the refrigerant circuit. • Do not use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer. Caution Do not store too much food in the appliance.
-
Page 5: Installing The Refrigerator/Freezer
INSTALLING THE REFRIGERATOR/FREEZER Allow an adequate space and install the refrigerator/freezer on a firm, level floor. • If the appliance is not level, there may be unusual noises and poor cooling. • Wait for at least one hour before plugging the appliance in. -
Page 6: Preparing The Refrigerator /Freezer
During this period, it may be slightly noisy. This is quite normal and does not represent a fault. Store food once the temperature in the refrigerator is sufficiently low. It takes a few hours after starting the refrigerator to reach the proper temperature. -
Page 7: Using The Control Features
QUICK FREEZE BUTTON Speeds up the freezing process in the freezer. REFRIGERATOR TEMPERATURE BUTTON Sets the refrigerator temperature. Press the button repeatedly to change the temperature in sequence between 7°C and 1°C. QUICK COOL When you want to refrigerate the storage... -
Page 8: Indicators
Temperature display • The temperatures displayed for the freezer and refrigerator are the actual temperatures of each compartment when starting up for the first time or when the door is open. • There may be little difference between the set temperature and the actual temperature. -
Page 9: Storing Food In The Refrigerator Or Freezer
• It is possible to remove the drawer if you need more space to store fruit and vegetables. Multi-purpose guard and egg tray • The refrigerator is warmest at the front, at the top and in the door. • Store small packaged foods, like milk, yogurt and beverages here. - Page 10 Upper freezer drawer • Store packed frozen foods, like ice cream and bacon. Middle/lower freezer drawer • Store fresh meat and fish or dried foods divided into suitably sized portions. Wrapping food Note Pack the food in suitably sized portions for your household. Vegetable and fruit portions should be no heavier than 1 kg, while meat portions can be up to 2.5 kg.
-
Page 11: Making Ice
Close the freezer door. Danger of explosion • The coldest parts of the refrigerator are the rear panel and the lowest shelf. This is the best Warning place to store delicate foodstuffs. • Glass bottles containing liquids that can freeze should never be stored in the freezer as the glass will explode when the contents freeze. -
Page 12: Using The Water Dispenser (Optional)
USING THE WATER DISPENSER (OPTIONAL) You can easily obtain chilled water with the water dispenser without opening the refrigerator door. In addition, you can save electricity by reducing the number of times the door is opened by more than 30%. - Page 13 INSTALLING A REGULAR BOTTLE Press the fixing lever, lift the exclusive water tank upwards, then remove it. Remove the water supply device from the exclusive water tank, then set the inner groove of the water supply device in a regular spring water bottle and fix it in position by turning it.
-
Page 14: Removing And Cleaning Accessories
REMOVING AND CLEANING ACCESSORIES Before cleaning the appliance, you must always switch it off and unplug it from the wall socket. Do not use a steam cleaner. Hot steam could damage the surface of the appliance or the electrical components, with a risk of electric shock. Ice cube maker •... -
Page 15: Cleaning The Water Dispenser
CLEANING THE WATER DISPENSER Cup Support / Dispenser Tray Cup support/Dispenser tray Press “PUSH” behind the dispenser tray slightly, then remove the dispenser tray. Using the cup support handle, pull the cup support right out. Empty the water in the dispenser tray, then clean it using warm water and detergent. -
Page 16: Replacing Interior Lights
REPLACING INTERIOR LIGHTS INDOOR LAMP IN THE REFRIGERATOR Always unplug the appliance when replacing the refrigerator light. Otherwise, there is the danger of electric shock. Unscrew the cover with a philips-head screwdriver. - Incandescent light • Turn the interior light to pull it out and replace it with a new one. -
Page 17: Troubleshooting
• Is the temperature control on the front panel set to the coldest temperature? • Is the surrounding temperature too low? • Did you put food with a high water content in the refrigerator? There are unusual noises • Check that the appliance is installed on a stable, level floor. -
Page 18: Usage Precautions
• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator. • Defrost the freezer when ice builds up. A thick coat of ice will impair the transfer of cold to the frozen products, thereby increasing power consumption. -
Page 19: Product View
VIEW OF YOUR REFRIGERATOR / FREEZER REFRIGERATOR REFRIGERATOR SHELVES FRESH SALAD DRAWER TWIST ICE MAKER AND ICE STORAGE BIN FREEZER FREEZER DRAWER REFRIGERATOR LIGHT FREEZER LIGHT MULTI-PURPOSE GUARD BOTTLE GUARD WATER DISPENSER (OPTIONAL) - Page 20 MEMO...
- Page 21 MEMO...
-
Page 22: Ambient Room Temperature Limits
Ambient Room Temperature Limits This refrigerator/freezer is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate. Temperature Class Extended Temperate Temperate Subtropical Tropical NOTE: Internal temperatures may be affected by such factors as the location of the refrigerator/freezer, ambient temperature and the frequency with which you open the door.
Need help?
Do you have a question about the SR-L62 series and is the answer not in the manual?
Questions and answers

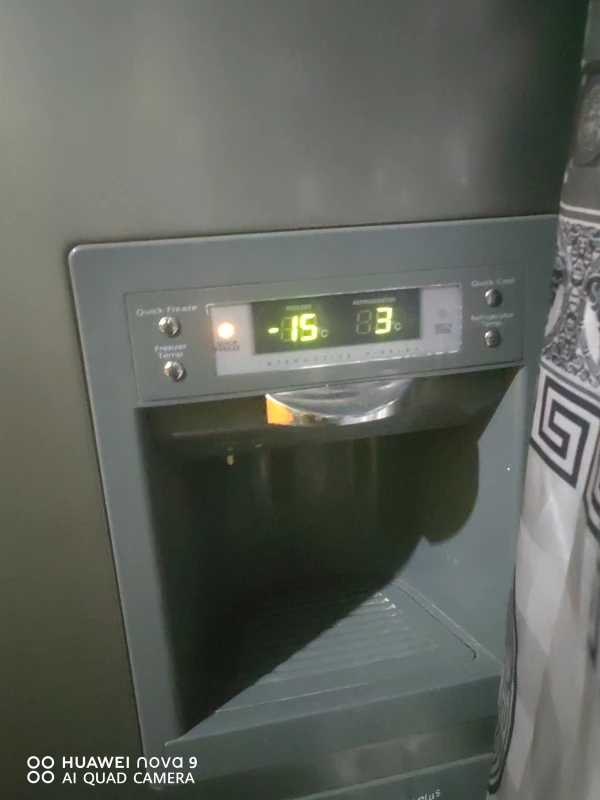

Mine only reaches - 19 then starts decreaing to even - 9 is it normal
No, it is not normal. The Samsung SR-L62 series freezer is designed to operate between -14°C and -25°C. A temperature increase to -9°C is outside the normal range and may indicate a problem. Check the electricity supply and other factors like door opening frequency or ambient temperature. If the issue continues, contact your dealer.
This answer is automatically generated
Light and open door sound aren’t working? How do I fix it?
To fix the light and open door sound not working on a Samsung SR-L62 series refrigerator, follow these steps:
1. Check Power Connection: Ensure the power plug is correctly connected.
2. Replace Refrigerator Light:
- Unplug the appliance to avoid electric shock.
- Use a Philips-head screwdriver to remove the light cover.
- Remove the incandescent bulb by turning it and replace it with a new one that matches the watt and voltage listed on the type plate.
- Reattach the cover with the screwdriver.
3. Replace Freezer Lamp:
- Press and raise the hanging sill under the lamp cover.
- Turn and remove the bulb, then replace it with one of the correct watt and voltage.
- Fit the upper part of the cover, then insert the lower hanging sill.
4. Check Door Alarm Function:
- The alarm sounds if the door is open for 2 minutes or more.
- If the door alarm is not sounding, ensure the control panel is functioning and not in a special mode that disables sound.
- You may need to press the freezer and refrigerator temperature buttons together for 5 seconds to cancel certain modes.
If these steps do not fix the issue, the problem may be with internal sensors or the control panel.
This answer is automatically generated

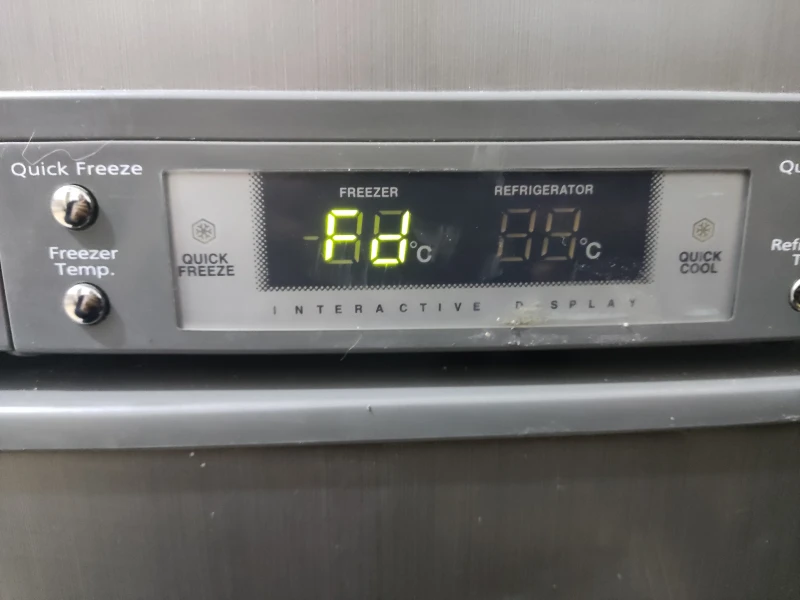

Hey there I have this error code (Fd) appearing on my refrigerator screen and I can't figure out what it means or what is causing it, can you help me understand the problem?
The error code (Fd) on a Samsung SR-L62 series refrigerator indicates a problem with the freezer defrost function. It may be related to a faulty connection, wire open or short, faulty sensor, or faulty geared-motor.
This answer is automatically generated

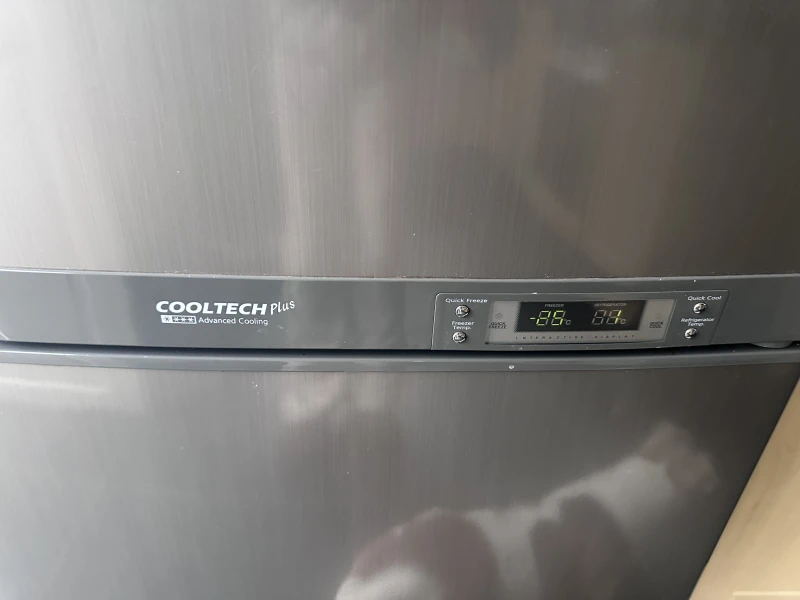

The refrigerator and freezer temperature is changing automatically
The temperature of the Samsung SR-L62 series refrigerator and freezer changes automatically because the temperature display cycles through preset values. The freezer temperature display changes sequentially between -14°C and -25°C, returning to -14°C after reaching -25°C. Similarly, the refrigerator temperature display changes in sequence and then reverts to the average temperature. Additionally, after five seconds, the display reverts to the average freezer temperature as the freezer reaches the new set temperature.
This answer is automatically generated
internal sensors is not stopping to make sound even the doors are closed
The internal sensor (alarm) on the Samsung SR-L62 series may make noise even when the doors are closed if the door is not properly closed. The MICOM detects the door as open if it does not receive the correct signal from the door switch. This can cause the alarm to run continuously. Additionally, if the door remains open (or detected as open) for over 10 minutes, the inner lamp switches off and will not turn on even if the door is opened again.
This answer is automatically generated
