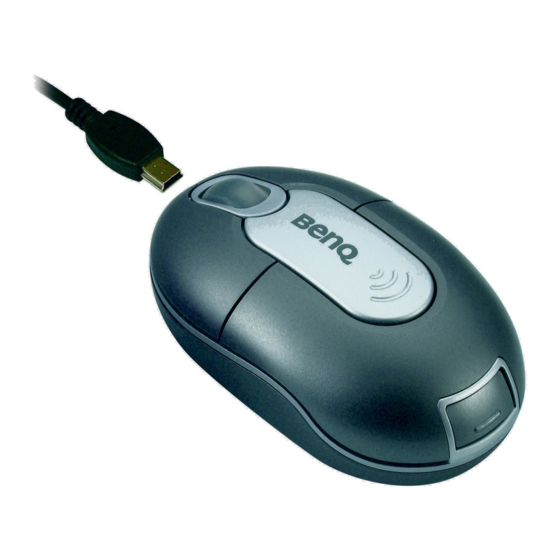

M310 Quick start guide

Pictorial instruction

Mouse

1. Left click button
2. Right click button
3. Scroll wheel
4. Battery cover

5. Receiver

6. Battery cover release button
7. Receiver release button
8. Connect button
Receiver
9. USB connector
10. Connect button
System requirements
IBM-compatible system or Macintosh
Windows 98/2000/ME/XP or Mac OS 10.0 or later
USB Port
Installation instruction

Battery installation

1.
Press「battery cover release button」to remove the battery cover.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BenQ M310

  • Page 1 M310 Quick start guide Pictorial instruction Mouse 1. Left click button 2. Right click button 3. Scroll wheel 4. Battery cover 5. Receiver 6. Battery cover release button 7. Receiver release button 8. Connect button Receiver 9. USB connector 10. Connect button...
  • Page 2 Load with two AAA batteries in the mouse. Lock battery cover again Operation instruction Plug the receiver into the USB port of your system, then system will automatically detect for new hardware To activate the mouse, please press the connect button on the receiver and mouse bottom successively (within 10 seconds.) Repeat Step 2 if the mouse not activated.
  • Page 3 when traveling. Battery life of normal work under 2 AAA Duracell Alkaline lasts ”20” days. In stand-by mode, battery life lasts “60” days. Without interference from other RF device, the operation distance of the mouse is more than 4 feet (1.2 m). When the mouse doesn’t work.
  • Page 4 FCC Warning! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 5 M310 Specification Features: 1. RF 27Mhz optical technology 2. 800 CPI resolution 3. 1 channel, 256 ID 4. Elegant ID design for both left and right -handed 5. USB interface 6. 1m of RF distance RF Module Specification: Operation Frequency...
