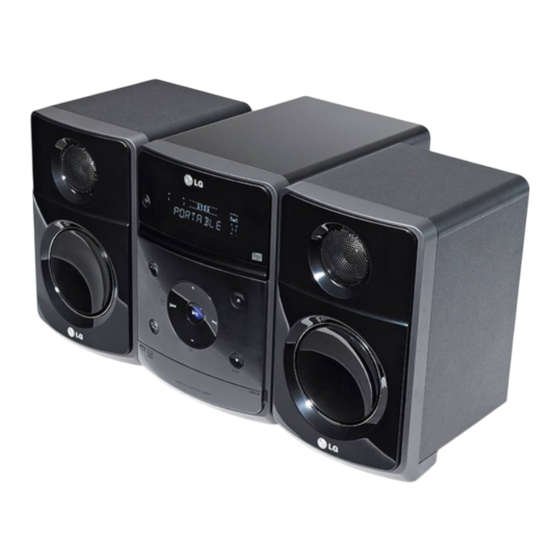

OWNER'S MANUAL DVD Micro Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. MODEL XB64 (XB64-F0U/XBS64V) P/NO : MFL61543978 ENG.indd 1 ENG.indd 1 2010.2.8 11:32:20 AM 2010.2.8 11:32:20 AM...
Page 2
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 2 CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and Safety Precaution no objects filled with liquids, such as vases, shall be placed on the apparatus. CAUTION concerning the Power Cord CAUTION Most appliances recommend they be placed upon a dedicated circuit ;...
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 3 Welcome to your New DVD MICRO Hi-Fi SYSTEM Contents Setting up Main Unit Remote control OSD initial language settings - Optional Initial setting of the Area Code - Optional Adjusting the general settings Setting the Clock...
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 4 Setting up Connecting your unit to your TV and aerials. Connect jacks on the unit and your TV (DVD player or Digital Device etc.) using the cables. Check the jacks of your TV and choose the A, B connection. Picture quality improves in order from A to B.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 5 Main Unit DISPLAY WINDOW Confirms the setting 1 1 /] ] Power on/off REC. DISC TRAY Recording (Recording to USB) USB Connector FUNC. Selects the function. Z Z OPEN/CLOSE You can use it when inserting or EQ: Sound quality adjustment removing CDs.
TV Control buttons: Controls the TV. (LG TV only) Controlling the TV. You can control the sound level, input source, and power switching of LG TVs as well. Hold POWER (TV) Put the battery into the remote control. and press PR/CH (+/–) button repeatedly until the TV Make sure that the + (plus) and - (minus) on the turns on or off.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 7 OSD initial language settings Initial setting of the Area - Optional Code - Optional when using this unit for the first time, the initial language setup menu When you use this unit for the first time, you have to set the Area Code appears on your TV screen.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 8 Adjusting the display settings Adjusting the general settings TV Aspect – Select which screen aspect to use based on the shape of your TV screen. [4:3] Select when a standard 4:3 TV is connected.
Page 9
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 9 Adjusting the audio settings DRC (Dynamic Range Control) – Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this effect. Vocal – Select [On] to mix karaoke channels into normal stereo.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 10 Enjoying a pre-programmed sound field Setting the Clock The system has a number of pre-set surround sound fields. You can select a desired sound mode by using EQ. The displayed items for the Equalizer may be different depending on sound sources and effects.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 11 Displaying Disc information Playing a Disc or file ON REMOTE ON REMOTE Z Z OPEN/CLOSE 1 Press 1 Insert a disc into the unit DISPLAY 2 Select a DVD/CD FUNCTION 2 Select an item...
Page 12
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 12 Pausing playback Viewing the Title menu 1 Press PAUSE/STEP (X) to pause playback. Press TITLE to display the disc's title menu, if available. 2 Press PLAY (B) to continue playback. Starting play from selected time...
Page 13
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 13 Skipping to the next/ previous photo MP3/ WMA • Sampling frequency: between 32 to 48 kHz (MP3/ WMA) I I i i Press SKIP (. or >) or to view the previous/ next photo.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 14 Listening to the radio Make sure both the FM aerials be fully extended. ON REMOTE 1 Select FM FUNCTION 2 Select a radio station TUN.- / + 3 To save a radio station PROG./MEMO.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 15 Listening to music from your Using a USB device portable player You can enjoy media files saved on a USB device by connecting it to the USB port of the unit. If you want to operate other function, see the ON REMOTE Playing a Disc or file section.
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 16 When you are recording, look out for the following Recording to USB • You can check the recording percentage rate for the USB record on the screen during the recording.(AUDIO, MP3/ WMA CD only) •...
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 17 Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Language Code Language Code Afar...
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 18 Troubleshooting PROBLEM CAUSE CORRECTION No power. The power cord is disconnected. Plug the power cord into the wall outlet securely. No picture. The TV is not set to receive the DVD signal. Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.
You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players. (Mastered/ Live File System: Disc format system for Windows Vista)
XB64-F0U-AMYSLL-ENG 2/19/10 10:14 AM Page 20 Specifications General Power supply Refer to the main label. Power consumption Refer to the main label. Net Weight 2.8 kg Bus power supply (USB) DC 5 V 500 mA USB Version External dimensions (170 x 244 x 275) mm (W x H x D) 5 °C to 35 °C...
