Auburn Gear Power Wheel Model 8 Service Manual

Single reduction shaft and spindle output drives with bearing locknut option

Advertisement

Quick Links

®
Power Wheel
Service Manual
Model 8 Single Reduction
Shaft and Spindle Output Drives
AUBURN, INDIANA 46706-3499
With Bearing Locknut Option
U.S.A.
PHONE: (219) 925-3200
FAX: (219) 925-4725

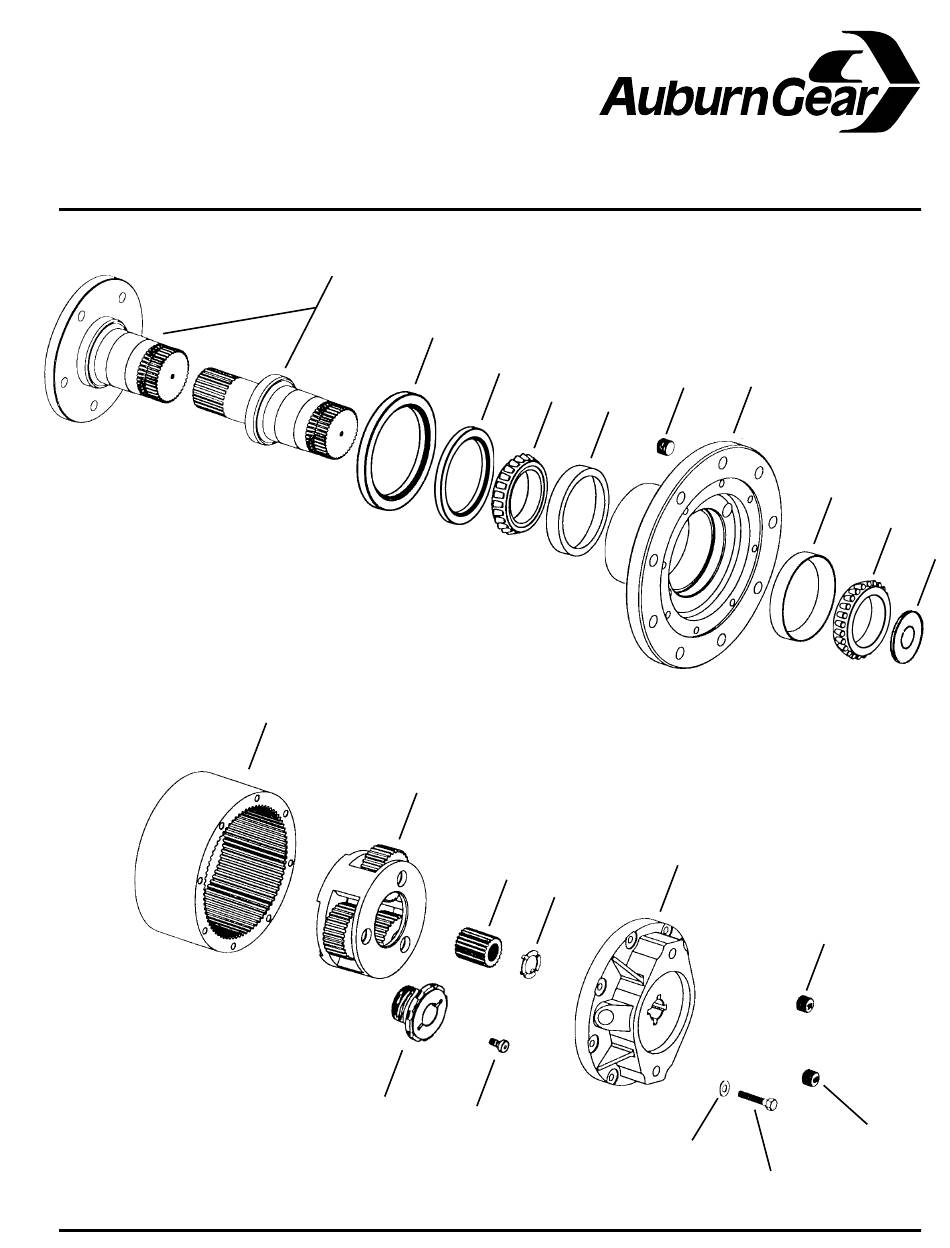

1
2
3
7
6
4
5
8
9
10
11
12
17
15
16
21
13
14
20
18
19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Wheel Model 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Auburn Gear Power Wheel Model 8

  • Page 1 ® Power Wheel Service Manual Model 8 Single Reduction Shaft and Spindle Output Drives AUBURN, INDIANA 46706-3499 With Bearing Locknut Option U.S.A. PHONE: (219) 925-3200 FAX: (219) 925-4725...
  • Page 2 IDENTIFICATION IMPORTANT: All Power Wheel units and kits are shipped with a nameplate that includes the Auburn Gear part number and order code as shown. ® Power Wheel ORDER CODE: 6WB13156C Example: PART NO.: 6000236 SERIAL NO.: 143434 AUBURN, IN U.S.A.
  • Page 3: Specifications

    NOTE: When installing a hydraulic motor to the Power Wheel drive it is necessary to place an “O” ring or gasket (not supplied by Auburn Gear) between the motor and the planetary drive. “O” ring sizes: SAE A 2-042, SAE B 2-155, SAE C 2-159, SAE D 2- 163.
  • Page 4 Thrust Washer Magnetic Plug 14-00-052-002 Ring Gear * Contact Auburn Gear with part number and order code of drive to obtain the appropriate parts list. Refer to parts list for the specific part numbers and quantities. ® Model 8 Power Wheel Service Kits Part No.
