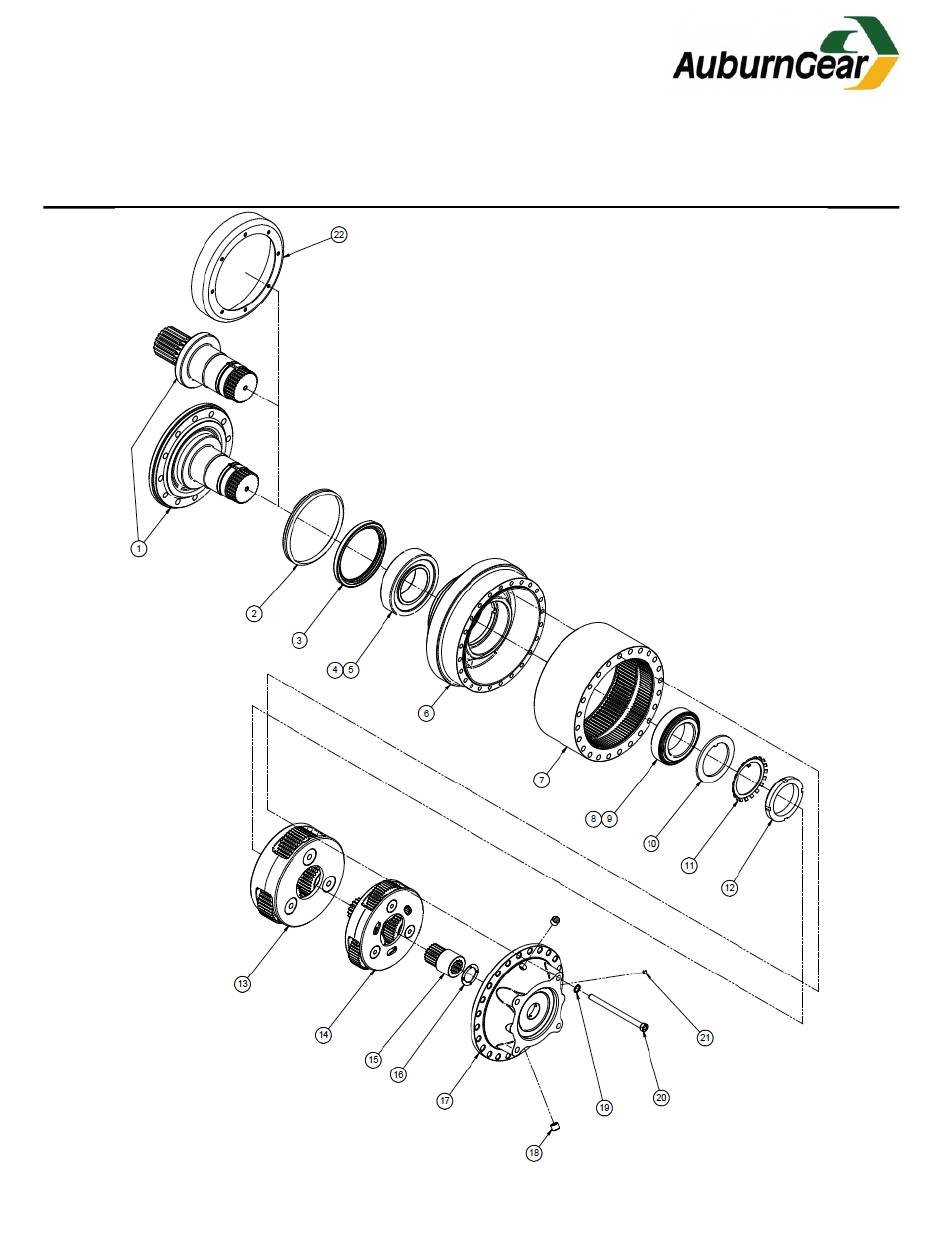

- Page 1 Power Wheel® Service Manual Model 250 Double Reduction Shaft and Spindle Output Drives 400 E. Auburn Drive Auburn, Indiana 46706-3499 Phone: (260) 925-3200 MH749-0817...
- Page 2 IDENTIFICATION IMPORTANT: All Power Wheel units and kits are shipped with a label that includes the Auburn Gear part number, order code and work order. Power Wheel Example: In addition to the label, Power Wheel drives are stamped with an identification number ®...
-
Page 3: Carrier Assemblies
NOTE: When installing a hydraulic motor to the Power Wheel drive it is necessary to place an “O” ring or gasket (not supplied by Auburn Gear) between the motor and the planetary drive. “O” ring sizes: SAE A 2-042, SAE B 2-155, SAE C 2-159, SAE D 2-163. -
Page 4: Specifications
Metal Seal Guard Bearing Nut 614933 * Contact Auburn Gear with part number and order code of drive to obtain the appropriate parts list. Refer to parts list for the specific part numbers and quantities. ** Not required in all assemblies... - Page 5 MH749-0817...
- Page 6 MH749-0817...
- Page 7 MH749-0817...
- Page 8 MH749-0817...
