Cooper Lighting ATLANTIC PLUS Installation Instructions

Installation Instructions for:

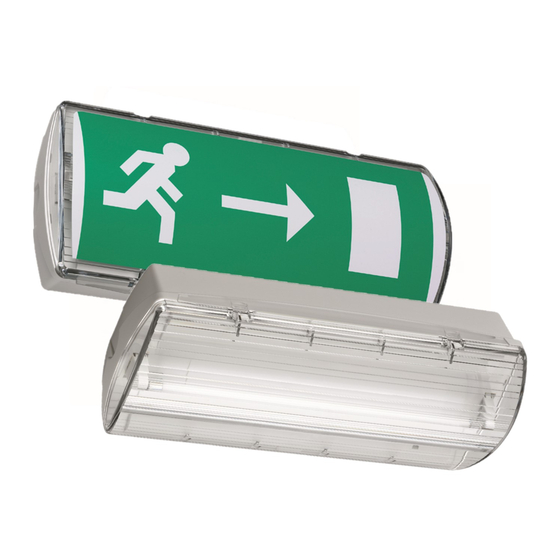

ATLANTIC and ATLANTIC PLUS
Remove all packaging before installation.
3
Remove Diffuser
Remove Geartray
Mounting
F
Ensure mounting fixings are watertight.
Use BESA, or drill mounting holes:
Cable Entries
Glands must be waterproofed by applying a thin layer of grease to the
flange & threads.
Remove connector
from transport clamp
Caution
DO NOT MEGGA after installation. In accordance with IEE regulation 613-7 and ECA/LIF recommendations, disconnect live and neutral wires before
insulation resistance check. This is most easily done by removing the geartray.
1 x4
2
290
Use cable entry knockouts:
Wiring
Fit the connector into the
2
elevated holder
1
Cable Routing
Due to the high operating temperature of some components on the
printed circuit board (PCB) it is essential that the incoming mains cable
is kept clear of the PCB and its components.
If the lamp is to be continuously alight link L2 to L1.
Connection to L2 not required for non-maintained operation.
See note overleaf regarding EMC requirements.
Re-assembly
2
CLASS 2 fitting
Earth terminal provided
for looping-in only
Press diffuser
onto bulkhead
FIRMLY to
3
secure all
four clips
1
