Lumatek Pro DE Reflector Assembly Instructions & Parts List

Pro DE Reflector
Assembly Instructions & Parts List
A Spine Assembly x1
B Top Diffuser Plate
Side Panels x4 (2 Feature Cutout)
C
Fixings Bag
D
E
Space Bar x2
BEFORE ASSEMBLY PLEASE REMOVE ALL PROTECTIVE FILM FROM LEAVES

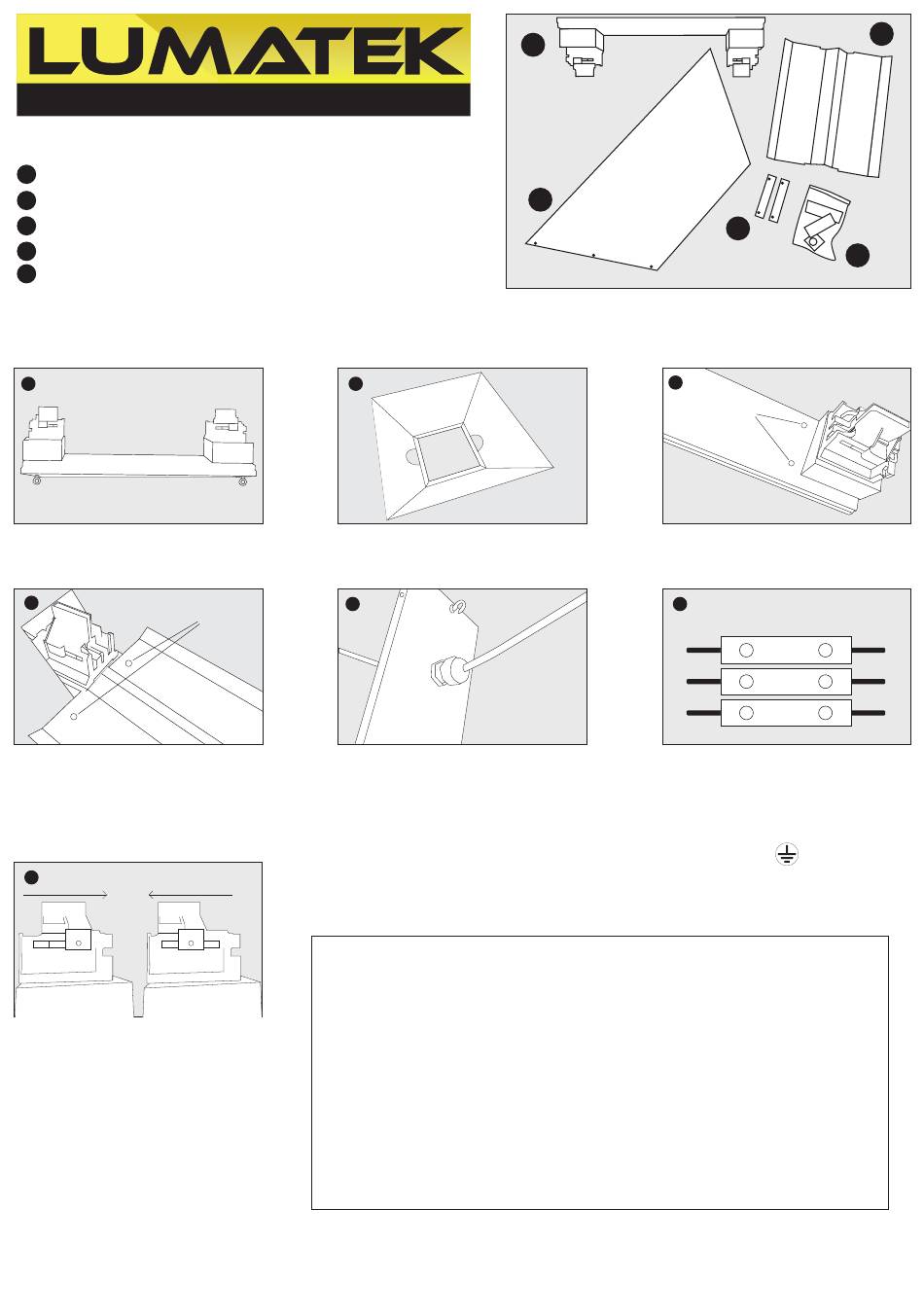

1
Remove the top spine cover and place the spine on a
level surface, with the bulb holders facing upwards.
4
Next, line up the space bar with the mounting holes
of the spine and shade, and then do the same with the
top diffuser plate. Pass one of the long bolts through
the top plate, spacer bar, shade and then spine (in that
order). Secure the bolt from inside the spine with a
nut and washer. Do this with all 4 mounting points on
the spine.
7
open close
Bolt the spine cover onto the spine housing with 6
small bolts and washers, and tighten with the cable
gland.
To install the bulb, simply slide the bulb holders to
the outside, insert the bulb, and then close the bulb
holders. Please ensure that the bulb is securely located
before moving the shade.
ENGINEERED BY QWOD
2
Using 12 of the shorter bolts, nuts and washers,
assemble the 4 side panels together, ensuring that the 2
panels with cutouts are opposite each other.
5
feed bolts
through here
Loosen the gland lock nut and feed your ballasts cable
through the gland.
www.Lumatek.co.uk
A
C
3
Place the part built shade onto the spine lining up the
mounting holes. The bulb holders should be coming
through the cutouts in the shade.
6
from shade
Next, wire your ballast into your shade ensuring that
both lives, both neutrals, and both earths are securely
connected into the correct place on the connector
block. With no stripped cable showing once the wires
are secured.
Live is marked L
Neutral is marked N
Earth is symbolised with
If unsure, please get a qualified electrician to complete
this stage of the assembly process.
B
E
D
mount holes
from ballast
live
earth
neutral
