IDEAL LT 8000 series Quick Reference Card

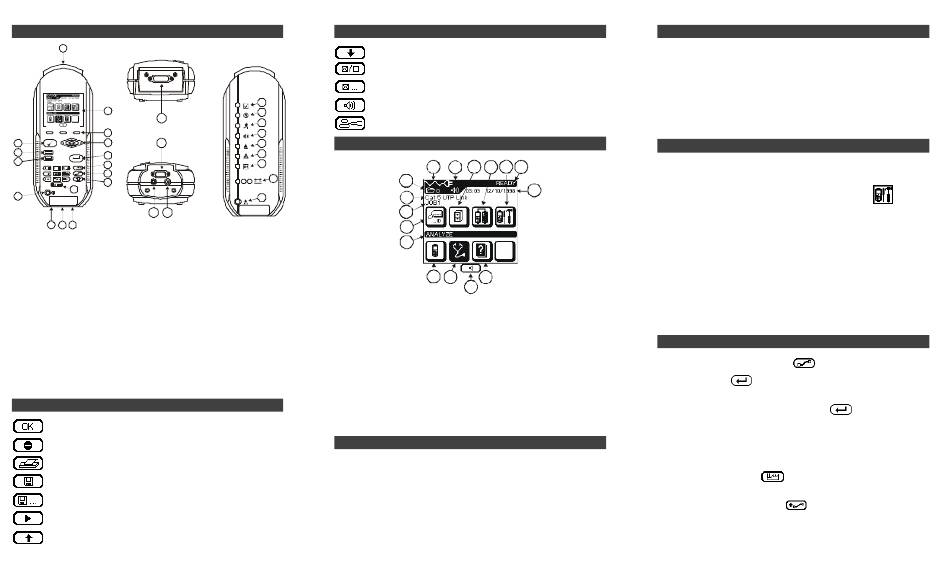

I. Display and Remote Handsets
13
1
13
2
4 15
3
5
7
6
9
10
1 1
8
12
14 16
14 15
1 6
1. Graphical Display 14. Talkset Jack
2. Option Keys 15. DB-9 Serial Port
3. Autotest Key 16. DC Input Jack
4. Arrow Keys 17. Pass LED
5. Wiremap Key 18. Fail LED
6. Length Key 19. Testing LED
7. Enter Key 20. Talk LED
8. Alphanumeric Keys 21. Tone LED
9. Escape Key 22. High Voltage LED
10. Cable Selection Key 23. No Patch Cable LED
11. Backlight Key 24. Battery Level LED's
12. On/Off Switch 25. Tone switch
13. Connector Port
II. Soft Keys
Okay or confirm an action.
Stop or cancel an action.
Print data.
Save data using Auto Increment naming convention.
Overwrite or rename data.
Run the selected test in continuous mode (real time).
Page-up for information.
Soft Keys (Continued)
Page-down for information.
Select/Deselect an item in a list box.
Select an action item.
17
Activate/Deactivate the Talk Set option.
18
19
Delete characters.
20
III. Ready Screen
21
22
23
2
24
1
25 6
7
9
8
13 14
Screen Indicators
1. Memory Usage
2. Battery Meter or AC Cable
3. Talk Set Indicator
4. Screen Title
Screen Functions
9. Cable ID
10. Test Record
11. Field Calibration
12. Preferences
IV. Tester Calibration
A calibration screen will always appear 24 hours after the last
field calibration.
1. To recalibrate the tester, connect the DH and RH end-to-
end using the Field Calibration Adapter.
2. From the DH Tools screen, select the Field Calibration
icon.
10 11 12
4
3
5
16
15
5. Time and Date
6. Setting
7. Label
8. Label
13. Instrument Information
14. Analyze
15. Talk Set Select
16. Help
LT 8000 Series: Quick Reference Card - 1
Tester Calibration (Continued)
1. Press the Tone Key on the RH.
2. Select the Run option on the DH.
If the calibration was successful, remove the Field Calibration
Adapter.
If the calibration was unsuccessful, refer to the User's Guide,
Chapter 3, Tester Field Calibration.
V. Tester Configuration
Most tester configuration parameters are set from the
Preferences screen
1. From the Tools screen, select the Instrument
The Preferences screen displays.
2. Use the Arrow keys to select one of the following
configuration options:
- User Information - Autotest Preferences
- Display Contrast - Time-out Options
- Measurement Units - PC & Printer I/F
- Talkset Option - Date & Time
- Display Language - Factory Defaults
- Clear Memory
3. Enter new configuration parameter(s) as required.
VI. Cable Type Selection
1. Press the Cable Selection hard key.
2. Press Enter to select a cable type and its associated
default NVP for testing.
3. Position the cursor and press Enter
new cable type and its associated default NVP for testing.
Note: A number of unique cable manufacturer NVP values
are stored in the tester memory. To access the list of
manufacturer cables for the currently highlighted test
standard, press the soft key.
4. If you want to use the selected cable as the basis for a
Custom Cable, press the soft key
5. Change the default cable features and save the cable as a
new Custom Cable.
Icon.
to change to a
