Operating Instructions & Parts Manual
Model 28045
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.

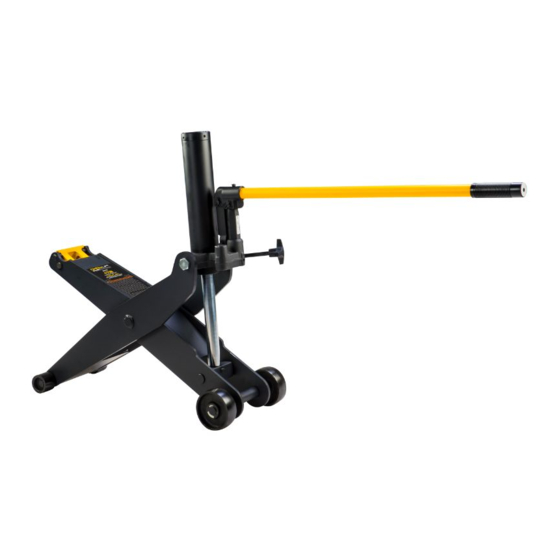

Forklift Jack
Model
28045
28047
(Air option)
WARNING
!
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
forklift jack. ALWAYS use adequately
rated forklift stands.
Capacity
4 Ton
4 Ton
Model 28047
SFA Companies
Advertisement
Table of Contents
Related Manuals for Omega Lift 28045
Summary of Contents for Omega Lift 28045
- Page 1 4 Ton 28047 (Air option) Model 28045 Model 28047 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
-
Page 2: Safety And General Information
WARNING: Never use hydraulic jack as a stand alone device. After lifting, immediately support the lifted forklift with a pair of appropriately rated forklift stands. SPECIFICATIONS Model Capacity Jack Size (L x W) Min. Height Max. Height Hydraulic Lift 28045 4 Ton 29-3/4" x 10" 2-1/8" 17-1/8" 15" 28047 Hydraulic Unit Oil Filler Plug... - Page 3 PREPARATION Assembly (refer to Fig. 2) 1. Attach ram plunger(1) to the swivel block(2). Insert cotter pin(3) through the hole on swivel block and spread ends of the cotter pin to secure the ram to the swivel block. 2. Insert handle(4) to handle sleeve(5) and secure with provided bolt (6).
-
Page 4: Operation
WARNING WARNING • Study, understand, and follow all printed materials provided with/on this product before use. • Do not exceed rated capacity. • Use only on hard, level surface. • This is a lifting device only! Immediately To avoid crushing and related injuries: after lifting, support the forklift with a pair of •... -
Page 5: Maintenance
MAINTENANCE Important: Use ONLY good grade hydraulic jack oil. Avoid mixing different types of fluid and Never use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause failure of the jack and the potential for sudden and immediate loss of load. -
Page 6: Replacement Parts
Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, please give the Model number, part number and parts description. Models 28045 & 28047: 33, 34 Figure 2 - Replacement Parts Illustration for Models 28045 & 28047... - Page 7 Replacement Parts List for models 28045 & 28047: Item Part No. Description Item Part No. Description 505-9-0092-207 Oil Filler Plug 667-5-0160-003 C-clip G46-6-2101-101 Handle 500-1-0500-304 Wheel, Front 506-9-0264-106 Handle Grip 667-5-0180-009 C-clip G34-6-1709-104 Release Valve Knob 601-8-0006-001 Grease fitting G46-6-1710-101...
- Page 8 ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.
