MODEL #:
DESCRIPTION:
CAPACITY:
JACK SIZE:
SADDLE MIN. HEIGHT:
SADDLE MAX. HEIGHT:
HANDLE LENGTH:
OPERATING FORCE:
SADDLE DIA.:
F. WHEEL DIA.:
F. WHEEL WIDTH:
CASTER DIA.:
NET WEIGHT:
GROSS WEIGHT:
CARTON BOX DIM.:
CUFT.:

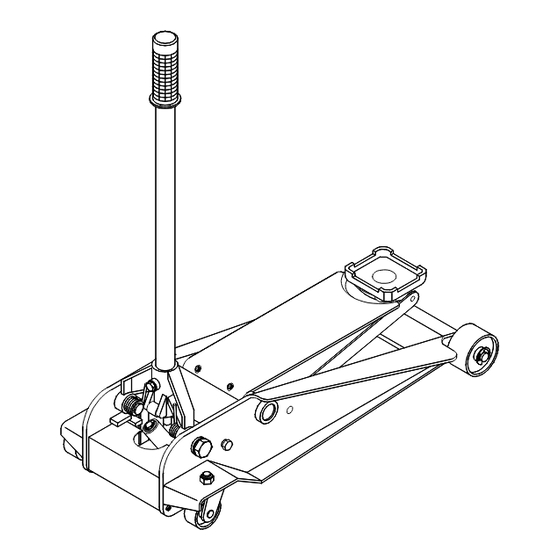

PRODUCT SPECIFICATIONS
YA1706
SERVICE JACK
3 TON
31 7/8" (L) X 15 3/8" (W) X 7 3/8" (H)
4"
23"
49 7/8"
159 lbf
5 1/2" x 5 1/2""
3 5/8"
2 1/4"
2 3/4"
136 LBS
140 LBS
36 1/4" (L) X 16 1/2" (W) X 9 1/2" (H)
3.2 CUFT (270 PCs/ 20' CTN)
FEATURE
• MEETS ASME/ANSI - PALD SAFETY
STANDARDS
• MAGIC LIFT™ PUMPING SYSTEM
• LIFTING RANGE: 4" TO 23"
• U-JOINT RELEASE SYSTEM
• EXTRA HEAVY-DUTY WELDED
STEEL CHASSIS
• PATENTED BUILT-IN BY-PASS DEVICE
MECHANISM
Updated
Sep. `06
Advertisement
Table of Contents
Related Manuals for Omega Lift MagicLift 25037
Summary of Contents for Omega Lift MagicLift 25037
- Page 1 PRODUCT SPECIFICATIONS MODEL #: YA1706 DESCRIPTION: SERVICE JACK CAPACITY: 3 TON JACK SIZE: 31 7/8” (L) X 15 3/8” (W) X 7 3/8” (H) SADDLE MIN. HEIGHT: 4” SADDLE MAX. HEIGHT: 23” HANDLE LENGTH: 49 7/8” OPERATING FORCE: 159 lbf SADDLE DIA.: 5 1/2"...
- Page 2 Operating Instructions & Parts Manual MagicLift™ Hydraulic Service Jacks Model Capacity 3 Ton 25037 U.S Patent No.s 5,755,099/5,946,912 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING To avoid crushing and related injuries: NEVER work on, under or around a...
-
Page 3: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. For your safety, read, understand, and follow the information provided with and on this device before using. The owner and/or operator shall have an understanding of the device, its operating characteristics and safety operating instructions before operating the equipment. The owner and/or operator shall be aware that use and repair of this product may require special skills and knowledge. -
Page 4: Specifications
WARNING WARNING • Study, understand, and follow all instructions before operating this device. • Do not exceed rated capacity. To avoid crushing and related injuries: • Use only on hard, level surface. • Never work on, under or around a load supported • Lifting device only. Immediately after lifting, only by hydraulic jack. support the vehicle with appropriate means. • Always use adequately rated jack stands. -
Page 5: Maintenance
OPERATION (cont.) 1. Raise load high enough to clear the jack stands. 2. Remove jack stands carefully. 3. Turn handle counter-clockwise, but no more than 1/2 full turn. If the load fails to lower: a. Use another jack to raise the vehicle high enough to reinstall jack stands. b. -
Page 6: Troubleshooting
TROUBLESHOOTING Symptom Possible Causes Corrective Action Jack will not lift load • Release valve not tightly closed • Ensure release valve tightly closed • Load is too heavy • Consider higher capacity jack Jack will lift, but not maintain • Release valve not tightly closed •... -
Page 8: Replacement Parts
REPLACEMENT PARTS Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, please give the Model number, part number and parts de- scription. Call or write for current pricing: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. e-mail: sales@omegalift.com;... -
Page 9: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.
