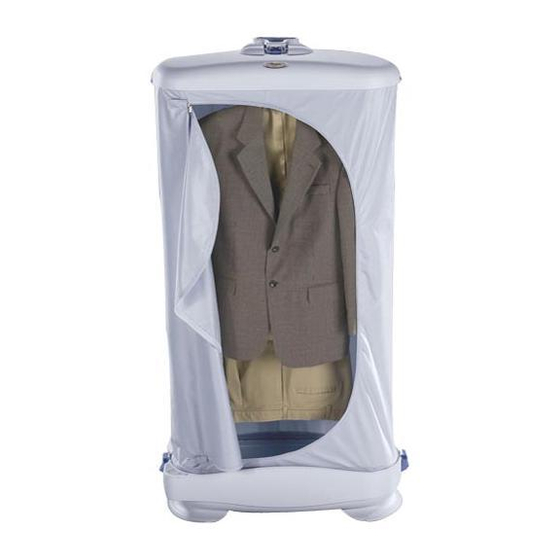

New Fabric Freshener Quick Start Guide
1
2
3
4
PLEASE READ ALL STEPS BEFORE ATTEMPTING THE SET-UP
Grip the pole over the
green dot and slide out
until you reach the black
line on the pole.
Holding the pole firmly in
place, rotate to a vertical
position. The Fabric
Freshener should look
like this.
Before extending the pole
any further, release the
latches on EACH side
of the Fabric Freshener.
While pressing down on
the Fabric Freshener, lift
EACH latch up and out.
The garment bag should be
freed and ready to lift onto
the support bracket.
SEE REVERSE SIDE FOR INSTRUCTIONS ON ADDING GARMENTS
5
6
7
8
With the handle pointing
toward you, lift the garment
bag and place the steel pin
into the slot of the blue
support bracket.
The pin will rest on the
support bracket like this.
Holding the top of the pole,
extend both the pole and
garment bag upward until
you hear the pole click
into place.
Slowly flip the handle toward
the back to lock into place.
The Fabric Freshener
is now ready for use.
Advertisement
Related Manuals for Whirlpool LRF4001RY
Summary of Contents for Whirlpool LRF4001RY
- Page 1 New Fabric Freshener Quick Start Guide PLEASE READ ALL STEPS BEFORE ATTEMPTING THE SET-UP Grip the pole over the With the handle pointing green dot and slide out toward you, lift the garment until you reach the black bag and place the steel pin line on the pole.
- Page 2 Knits/ the cycle. Sweaters/ Normal 35-40 Min. Wools Rayon/Poly/Silk Delicate 18-24 Min. Hand Washables/ Delicates/ Dry Cycle 30-35 Min. Swimsuits ®Registered trademark/™Trademark of Whirlpool, U.S.A. ©2005 Whirlpool Corporation. All rights reserved. Form No. WWLL172. Printed in the U.S.A. XX/05. www.whirlpool.com.
