10.5.3.3.2 CHART
This screen allows you to view the data history at different time ranges and in a graphically way. It also shows the maximum value, the minimum
value and the average recorded value of each channel during the download period.
Tapping on a point in the graph lets you see the value and time displayed at that point.
The number of logs displayed in the chart is limited to allow better viewing on your smartphone. Each screen displays 500 acquisitions. To navigate
the chart and view the other records, you must use the
10.5.3.3.3 LOG SCREEN OPTION MENU
For the Android application, pressing the icon
27. For the iOS application, as you can see, the icons for Download, Save Files and Share will automatically appear:
NOVUS AUTOMATION
Android

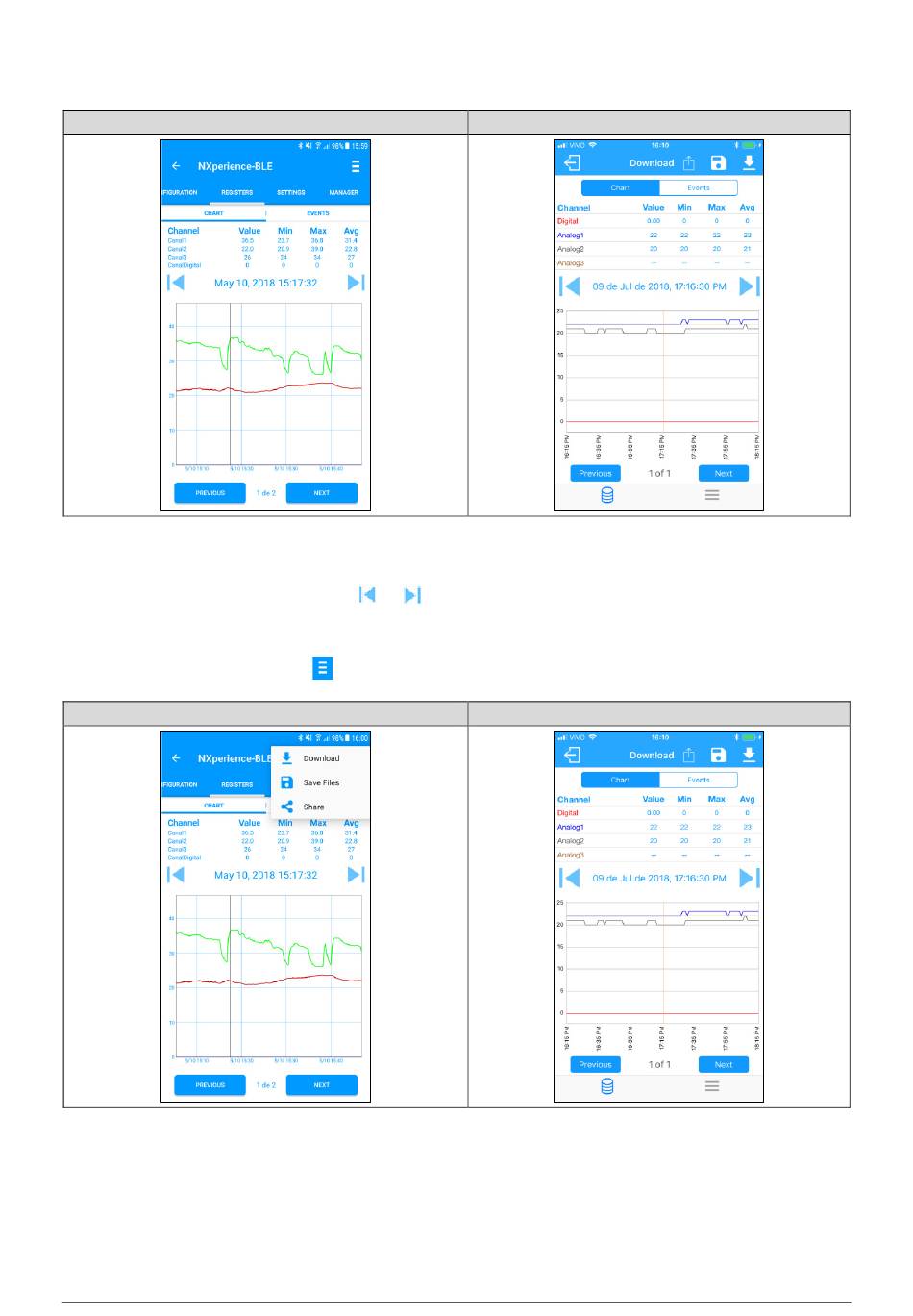

Fig. 26 – Chart screen
and
in the upper right corner of the screen will show the options shown and described below in Fig.
Android
Fig. 27 – Log screen option
arrows. They will allow you to roll back or advance through 500 acquisitions.
iOS
iOS
