Summary of Contents for Calphalon TSCLTRDG1

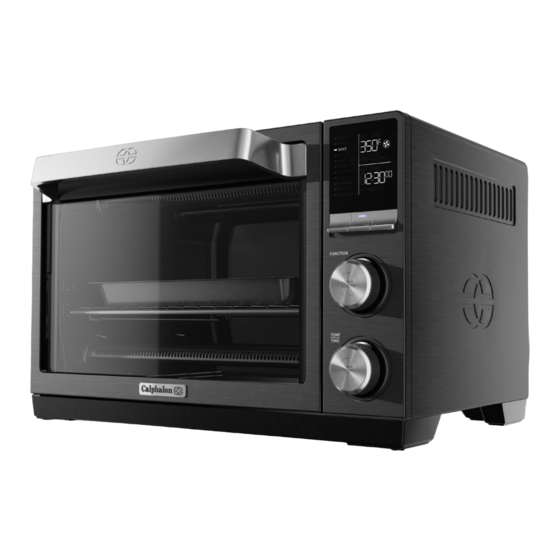

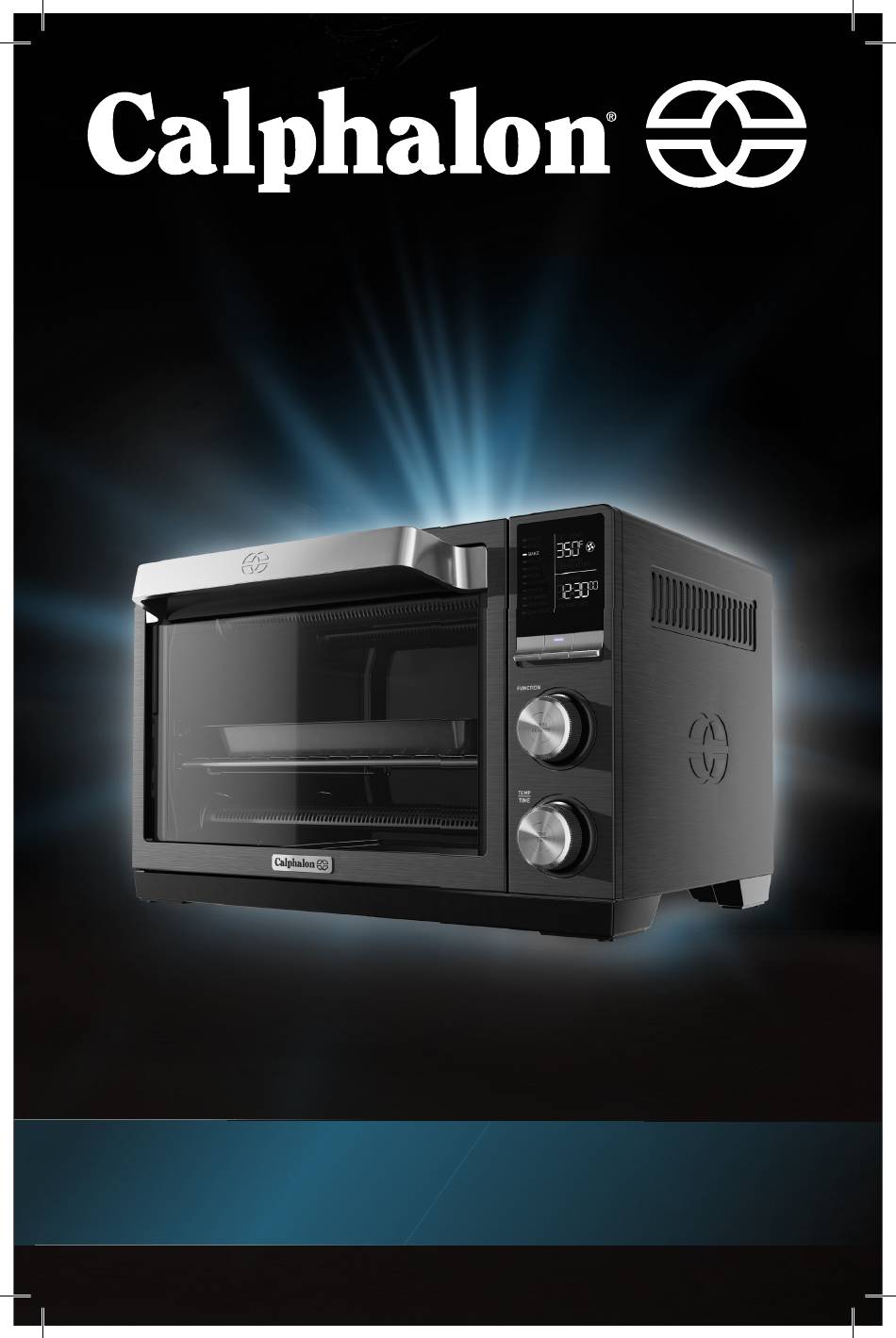

- Page 1 QUARTZ HEAT COUNTERTOP OVEN INSTRUCTION MANUAL MODEL: TSCLTRDG1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFEGUARDS POLARIZED PLUG PRODUCT DIAGRAM LCD DISPLAY USAGE INSTRUCTIONS PREPARING YOUR COUNTERTOP OVEN OVEN FUNCTIONS OVERVIEW HOW TO USE YOUR COUNTERTOP OVEN FUNCTIONS CLEANING & MAINTENANCE CHANGING THE LIGHTBULB TROUBLESHOOTING WARRANTY... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions, product labels and warnings before using Quartz Heat countertop oven. 2. This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs. Always protect your hands with non-slip oven mitts or similar. -
Page 4: Polarized Plug
20. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven. 21. Empty the crumb tray after each use. 22. The glass door is made of tempered glass. Always inspect the glass door for chips, cracks or any other damage. -
Page 5: Product Diagram
13. *Interior Light (G9 bulb 18w 120v) 4. Turbo Convection Selector Button (not shown in image) 5. Time/Temperature Control Dial 6. Time/Temperature Selector Button *These parts can be replaced on Calphalon.com or 7. Two Rack Positions at 1-800-809-7267 8. *Dehydrate Rack 9. *Baking Pan... -
Page 6: Preparing Your Countertop Oven
PREPARING YOUR COUNTERTOP OVEN • Remove all packaging before using the Calphalon® Quartz Heat Countertop Oven. • Wipe Countertop Oven with a damp cloth. DO NOT IMMERSE IN WATER. Make sure to only use mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit. -
Page 7: How To Use Your Countertop Oven
HOW TO USE YOUR COUNTERTOP OVEN • Once the Calphalon® Quartz Heat Countertop Oven is plugged in, the LCD screen will illuminate and the START Button LED light will flash. • The Function Options will be displayed on the LCD Screen with the Function Indicator on the default preset TOAST function. -
Page 8: Functions
COOKING FUNCTIONS DETAILS Toast For best TOAST results, place wire rack in the upper rack position. This function is ideal for sliced toast, English muffins and frozen waffles. NOTE: For darker toast results, use a higher shade setting. 1. Insert the wire rack into the upper rack position. 2. - Page 9 use the Time/Temperature Control Dial to select the desired cooking temperature and time. Turn the Time/Temperature Control Dial clockwise to increase temperature and time and counter-clockwise to decrease. 4. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen.
- Page 10 For optimal results, place wire rack in the lower rack position. 1. Insert the wire rack into the lower rack position. 2. Ensure the countertop oven door is closed for preheating. 3. Turn the Function Selector Dial to select the BROIL function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired cooking temperature and time.
- Page 11 Note: The timer will not begin until the START button is pressed. 10. When pizza cycle is complete, an audible alert will sound. 11. Open countertop oven door fully and remove food carefully with oven mitt. WARNING: Cooked food can be very hot. Handle with care. Do not leave countertop oven unattended. Cookies For optimal results, place wire rack in the upper rack position.
- Page 12 5. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen. To cancel convection setting, press the TURBO CONVECT button once more. 6. Press the START button to begin the reheat cycle. Note: The timer will not begin until the START button is pressed.
- Page 13 4. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen. To cancel convection setting, press the TURBO CONVECT button once more. 5. Press the START button to begin preheating. PREHEATING will appear on the LCD screen. 6.
-
Page 14: Cleaning & Maintenance
CLEANING & MAINTENANCE • Clean oven and any accessory after each use. • Before cleaning your Calphalon® Quartz Heat Countertop Oven, press the CANCEL/OFF button to turn OFF the countertop oven. Unplug the cord and allow it to cool before cleaning. -
Page 15: Troubleshooting
TROUBLESHOOTING Possible Problem Easy Solution Oven does not turn ON • Plug the Countertop into the electrical outlet. • Check that the power plug is securely inserted into the outlet. • Insert the power plug into a different outlet. • Press the START button. Smoke odor •... -
Page 16: Warranty
Calphalon dealers, service centers, or retail stores selling Calphalon, do not have the right to alter, modify or any way change the terms and conditions of this guarantee. This guarantee does not cover damage resulting from any of the...
Need help?
Do you have a question about the TSCLTRDG1 and is the answer not in the manual?
Questions and answers
How do I change the temperature settings from Celsius to Fahrenheit?
To change the temperature settings from Celsius to Fahrenheit on the Calphalon TSCLTRDG1:
1. Plug in the unit.
2. Rotate the Function Selector Dial so that the display turns on.
3. Hold the Time/Temperature Selector Button (center of the lower dial) for 3 seconds. A short beep will sound, and the displayed temperature will switch from Celsius to Fahrenheit.
4. Release the Time/Temperature Selector Button.
The same steps can be used to switch back to Celsius if needed.
