Firefighter Gateway User Interfaces
Optional Optional
Antenna1 Antenna2
(ZigBee,
Wi-Fi)
LEDs
LCD and LCD-Menu Buttons
The LCD screen displays status information of the SolarEdge firefighter gateway and various menus for
configuration options. The LCD panel and buttons are used during the following processes:
Operational Mode: The LCD panel allows checking that the gateway is working properly. Refer to
Status Screens on page 26 for a description of this option. Use the LCD user buttons to toggle
through the informative displays and select options.
Setup: After mounting the gateway, the installer may perform basic gateway configuration, as
described in Setup Menu Options on page 29.
Four buttons are used for controlling the LCD menus (see Figure 3).
Esc: Moves the cursor to the beginning of the parameter, goes to the previous menu, and cancels a
value change.
Up (1), Down (2): Moves the cursor between menu options, moves among the characters of a
parameter, and toggles between possible characters when setting a value.
Enter (3): Selects a menu option or accepts a value change. Also used to enable LCD backlight.
8
Control RS485-1
DC
Micro SD Ethernet
(power
supply
input)

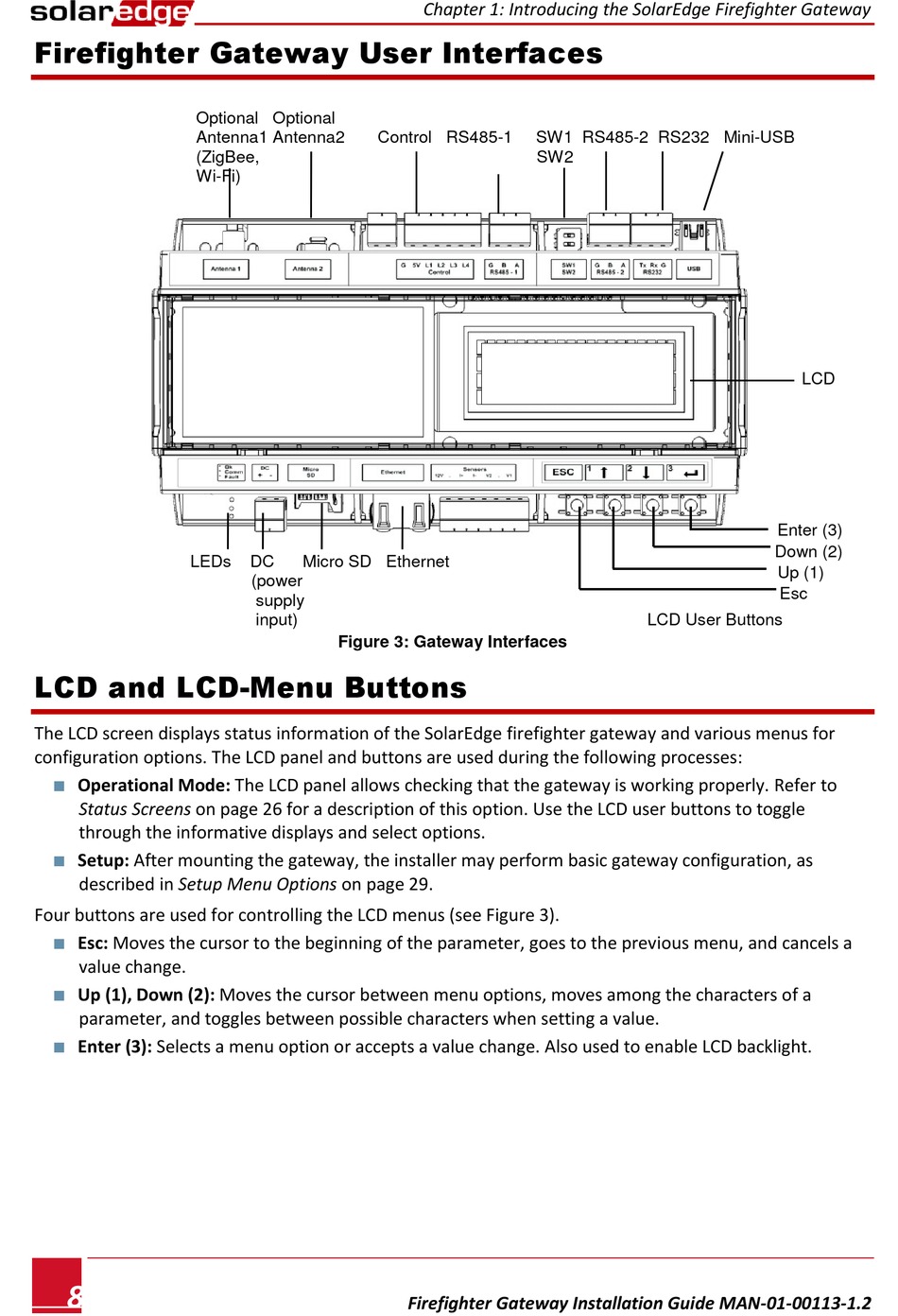

Figure 3: Gateway Interfaces
Firefighter Gateway Installation Guide MAN-01-00113-1.2
Chapter 1: Introducing the SolarEdge Firefighter Gateway
SW1 RS485-2 RS232 Mini-USB
SW2
LCD
Enter (3)
Down (2)
Up (1)
Esc
LCD User Buttons
