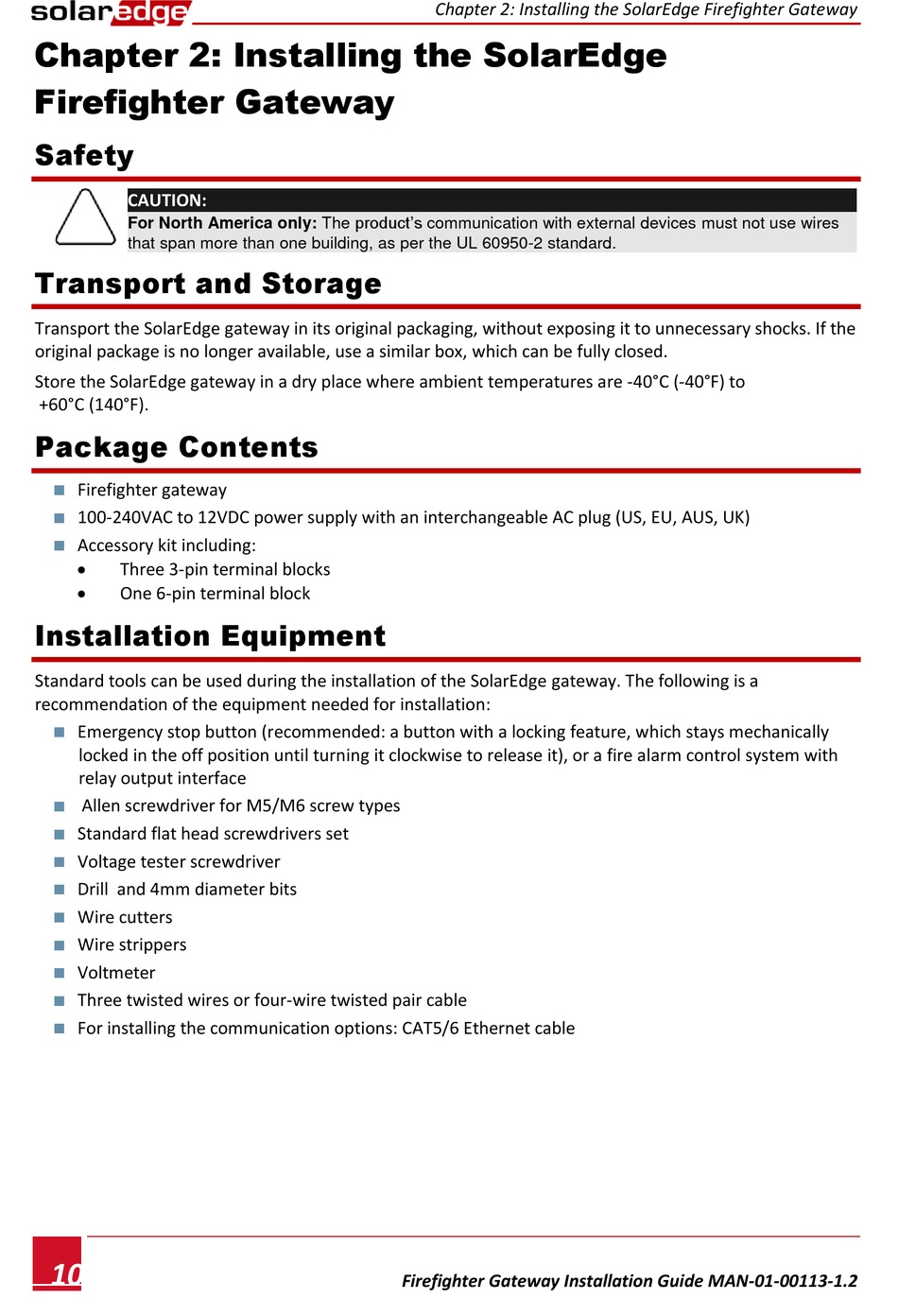

Chapter 2: Installing the SolarEdge
Firefighter Gateway

Safety

CAUTION:
For North America only: The product's communication with external devices must not use wires
that span more than one building, as per the UL 60950-2 standard.

Transport and Storage

Transport the SolarEdge gateway in its original packaging, without exposing it to unnecessary shocks. If the
original package is no longer available, use a similar box, which can be fully closed.
Store the SolarEdge gateway in a dry place where ambient temperatures are -40°C (-40°F) to
+60°C (140°F).

Package Contents



Firefighter gateway

100-240VAC to 12VDC power supply with an interchangeable AC plug (US, EU, AUS, UK)

Accessory kit including:

Three 3-pin terminal blocks
One 6-pin terminal block

Installation Equipment

Standard tools can be used during the installation of the SolarEdge gateway. The following is a

recommendation of the equipment needed for installation:
Emergency stop button (recommended: a button with a locking feature, which stays mechanically
locked in the off position until turning it clockwise to release it), or a fire alarm control system with

relay output interface

Allen screwdriver for M5/M6 screw types

Standard flat head screwdrivers set

Voltage tester screwdriver

Drill and 4mm diameter bits

Wire cutters

Wire strippers

Voltmeter

Three twisted wires or four-wire twisted pair cable
For installing the communication options: CAT5/6 Ethernet cable
