LOG EFFECT
STOVE FIRE
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
MODEL WL46020
This product is only suitable for well insulated spaces or occasional use.
www.warmlite.co

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL46020 and is the answer not in the manual?

Questions and answers

Lynn westell
February 15, 2025

The bar is not moving in the back of fire so no flame effect

1 comments:
Mr. Anderson
February 15, 2025

The flame effect in the Warmlite WL46020 fire is created using LED bulbs and a rotating bar mechanism. If the bar is not moving, resulting in no flame effect, the possible reasons could be:

1. Power Issue – Ensure the fire is plugged in and switched on.
2. Motor Malfunction – The motor responsible for moving the bar may be faulty.
3. Obstruction – Debris or dust may be blocking the movement of the bar.
4. Loose Connection – A loose wire inside the unit could be preventing the motor from functioning.
5. Component Failure – The LED bulbs or internal components may need checking or replacement.

To resolve the issue, check the power supply and clean the unit. If the problem persists, contact customer support or return the product under warranty with proof of purchase.

This answer is automatically generated

James
January 28, 2025

Flame effect bulb not working but heating part is still working. Can you change bulbs?

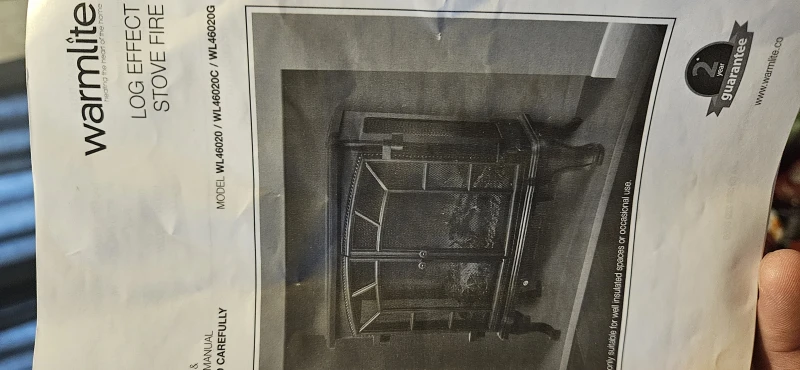

User image 6798f5e4f1f39
1 comments:
Mr. Anderson
February 10, 2025

The Warmlite WL46020 heater uses LED bulbs for the flame effect. The provided information does not specify whether these LED bulbs are replaceable.

This answer is automatically generated

Tauqeer Hassan
January 20, 2025

Hi, the heaters glow effect is not working, the heat function is working. How can I fix this problem?

1 comments:
Mr. Anderson
May 14, 2025

To fix the glow effect on your Warmlite WL46020 heater, try adjusting the flame brightness using the flame dimmer control. This feature allows you to change the brightness of the LED flame effect. If the glow is not working at all, ensure the heater is plugged in and powered on. If the issue persists, the LED flame component may be faulty and may require professional servicing or replacement.

This answer is automatically generated

Summary of Contents for Warmlite WL46020

  • Page 1 LOG EFFECT STOVE FIRE YOUR SAFETY & INSTRUCTION MANUAL PLEASE READ CAREFULLY MODEL WL46020 This product is only suitable for well insulated spaces or occasional use. www.warmlite.co...
  • Page 2: Technical Data

    TECHNICAL DATA Description: Log Effect Stove Fire Model: WL46020 Rated Voltage: 220 - 240V Frequency: ~ 50/60Hz Power consumption: 1800W – 2000W LED Bulbs: 5 x 1W DOCUMENTATION We declare that this product conforms to the following product legislation in accordance with the...
  • Page 3 The plug must be fitted with a fuse of the same rating already fitted and conforming to BS 1362 and be ASTA approved. If in doubt consult a qualified electrician who will be pleased to do this for you. WARNING: This Appliance MUST be Earthed www.warmlite.co...
  • Page 4: Product Safety

    PRODUCT SAFETY When using any electrical appliance, basic safety precautions should always be followed including the following: • Check that the voltage of the • Switch off at the wall socket main circuit corresponds with then remove the plug from the rating of the appliance the socket when not in use or before operating.
  • Page 5 • DO NOT operate the heater on a timer or leave on overnight. • When not being used, please unplug the heater from the mains socket. HIGH VOLTAGE HOT SURFACE DO NOT COVER www.warmlite.co...
  • Page 6: Before Your First Use

    WHAT’S IN THE BOX Instruction Manual Log Effect Stove Fire Remote Control 4 X Legs 12 X Screws Glowing Effect Glass Pane Door Handle Hot Air Vent Legs BEFORE YOUR FIRST USE: Remove your appliance from the packaging. Attach the legs as per the instructions opposite. (generic images) Keep the front of the appliance through which the heat is radiated at least one meter away from furniture, curtains and other flammable objects at all times.
  • Page 7: Using Your Appliance

    1000W and High is 2000W. The it to overheat and possibly cause a fire, the heat setting can also be used to turn off the heat. heater will automatically shut off. Flame Brightness – Adjusts the brightness of the flame. www.warmlite.co...
  • Page 8: Cleaning And Care

    CLEANING AND CARE • Before cleaning always switch off the fire and remove the plug from the electrical socket. • Ensure that the unit is cool enough to work on. • To remove the dust, wipe the appliance with a dry cloth. •...
  • Page 9 Model Identifier(s): WL46020 Item Symbol Valve Unit Item Unit Type of heat input for electric storage, local space Heat Output heaters only (select one) Nominal heat Manual heat charge with integrated Pnom 1,8 –2,0 output thermostat Minimum heat Manual heat charge control with room...
  • Page 10 NOTES CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056...
  • Page 11 NOTES www.warmlite.co...
  • Page 12 1 year peace of mind. *To receive your extra guarantee period, register your appliance online within 28 days of purchase by visiting: www.warmlite.co Make sure to retain your original receipt. Should you have a problem...
