Summary of Contents for eXact iDip

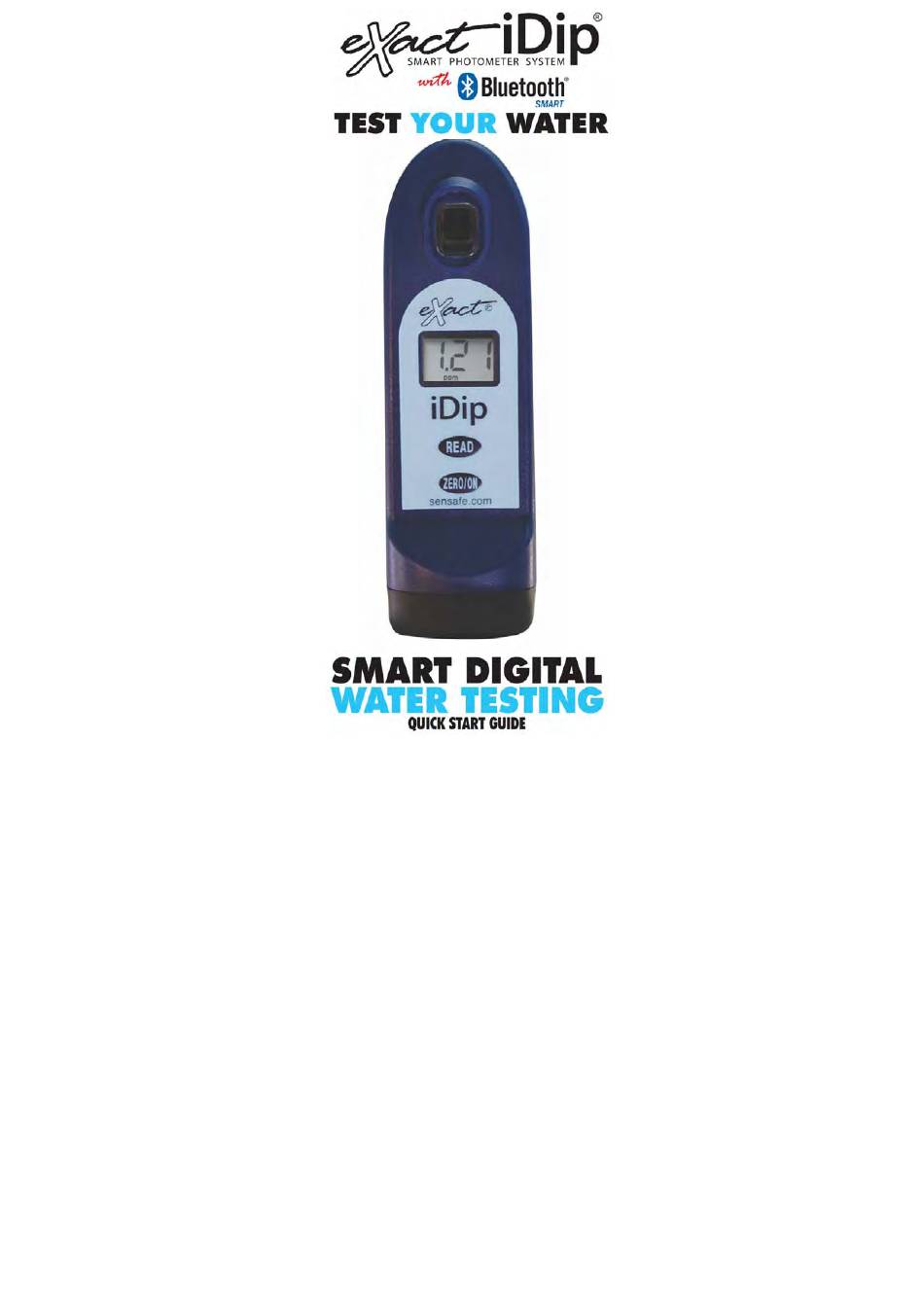

  • Page 1 QUICK START GUIDE...

  • Page 2: Table Of Contents

    Compatible smart devices: Apple iPad ® (Mini, Mini Retina, 3 gen, 4 gen, Air) Apple iPhone ® (4s, 5, 5c, 5s) Apple iPod touch ® gen) We are constantly adding new devices, check out our full list at sensafe.com/idip.

  • Page 3: Idip ® Overview

    IDIP ® OVERVIEW YOUR NEW EXACT IDIP ® IS IDEAL FOR TESTING DRINKING WATER, POOLS & SPAS, PONDS & AQUARIUMS, FOOD & BEVERAGE PROCESS WATER, NVIRONMENTAL WATERS, AND MORE SAMPLE CELL Built-in plastic 4ml cell for collecting your water sample...

  • Page 4: Let's Get Started

    1. Use a Phillips head screwdriver to remove the screw from the base of your iDip®. 2. Remove the base. 3. Install 4 new AAA batteries as illustrated inside your iDip®. We recommend using high quality batteries. 4. Replace the base firmly with pressure while tightening the screw.

  • Page 5: Home Screen

    LET’S GET STARTED SETTINGS: HOME SCREEN Opens menu for easy access to all app features History: Accesses all CALENDAR: previously saved Displays your results which can schedule/ be sorted, edited, appointments and emailed STORE: CUSTOMERS: Opens store to Attaches results unlock additional to people and/or tests...

  • Page 6: Select, Fill, Dip, Read

    SELECT, FILL, DIp, READ a. Select ‘Customers’ from the ‘Home’ screen. b. Tap ‘Add Customers From Contacts.’ c. Select a contact from your list. Power on the eXact iDip ® hand-held photometer. Tap ‘ ’ and select ‘Bluetooth Test’ on the slide out...

  • Page 7: Bluetooth

    SELECT, FILL, DIp, READ Select your iDip from the bottom of the screen. Verify it has connected and tap ‘OK’. * * Refer to the back of your iDip ® to determine the serial number for your device. This will also be the serial number for the bluetooth connection.

  • Page 8: Fill Cell

    ® Press and the iDip display reads 0 indicating the meter is ready to test. For Standard Liquid Method, place Cell Cover on CELL before zeroing. Standard Strip Method Tests (count-up if required): •...

  • Page 9: Standard Strip Method

    SELECT, FILL, DIp, READ STANDARD STRIp METhOD Remove one eXact Strip Micro (e.g. Total Alkalinity) and set in a dry, convenient place. to initiate a 20 second countdown and PRESS simultaneously the test strip by submerging all pads in the sample then use a gentle constant back and forth motion (2 strokes per second) until the timer displays “1”.

  • Page 10: Standard Liquid Method

    20 second countdown begins. Turn the meter upside-down repetitively during the 20 seconds. When the timer displays “1”, place the ® iDip on a flat surface. Wait for count-up time. READ result displayed on the iDip ® and in the app. To run additional tests, repeat steps 5-10.

  • Page 11: Data Management

    DATA MANAGEMENT When all tests have been performed, tap ‘Results’ at the bottom of the screen. To add notes tap the desired test result. Type notes in the ‘Notes’ box, which are automatically saved. Go back to ‘Results’ screen and tap ‘Save’ to store into ‘History’.

  • Page 12: History

    DATA MANAGEMENT In History, you can edit, select, and email your results. To email, you can either tap an individual result, or use the ‘Select’ button to access multiple data points. Press the blue envelope icon if a single result is selected. Tap ‘Email’ at the top if multiple tests are selected.

  • Page 13: Tips

    Meter is not compatible for use with powder pillows, tablets, and liquids from other manufacturers. • Dip strip for entire countdown. • Each eXact Strip Micro is valid for ONLY one test. Discard strip after use. • Dry the outside of the meter before storage. • Remove batteries before storing for prolonged periods.

  • Page 14: About

    30 feet (10 meters) and a 2.1 Mbps data transfer rate. This allows a ® seamless transfer of data between a smart device and the eXact iDip ABOUT THE BUILT IN SAMPLE CELL The built-in sample cell is made of transparent plastic; the sturdy cell design will last for over 20,000 readings.

  • Page 15: Compliance Testing

    Strip DPD delivery devices. The eXact Strip Micro CL (DPD-1) for Free Chlorine, and the eXact Strip Micro CL (DPD-3) or the eXact Strip Micro CL (DPD-4) for Total Chlorine meet your reportable testing requirements because the eXact Strip Micro CL delivers the same chemicals in identical proportions (see table below);...

  • Page 16: Reorder

    For resellers and distributors - products sold in case quantities (12 units per case). **Test uses a non-standard test method. Visit sensafe.com/idip for details. US Designed and Patent-Protected by Industrial Test Systems, Inc. 1875 Langston Street, Rock Hill, SC USA Manufactured by Metertech Inc.
  • Page 17 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limit s for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
