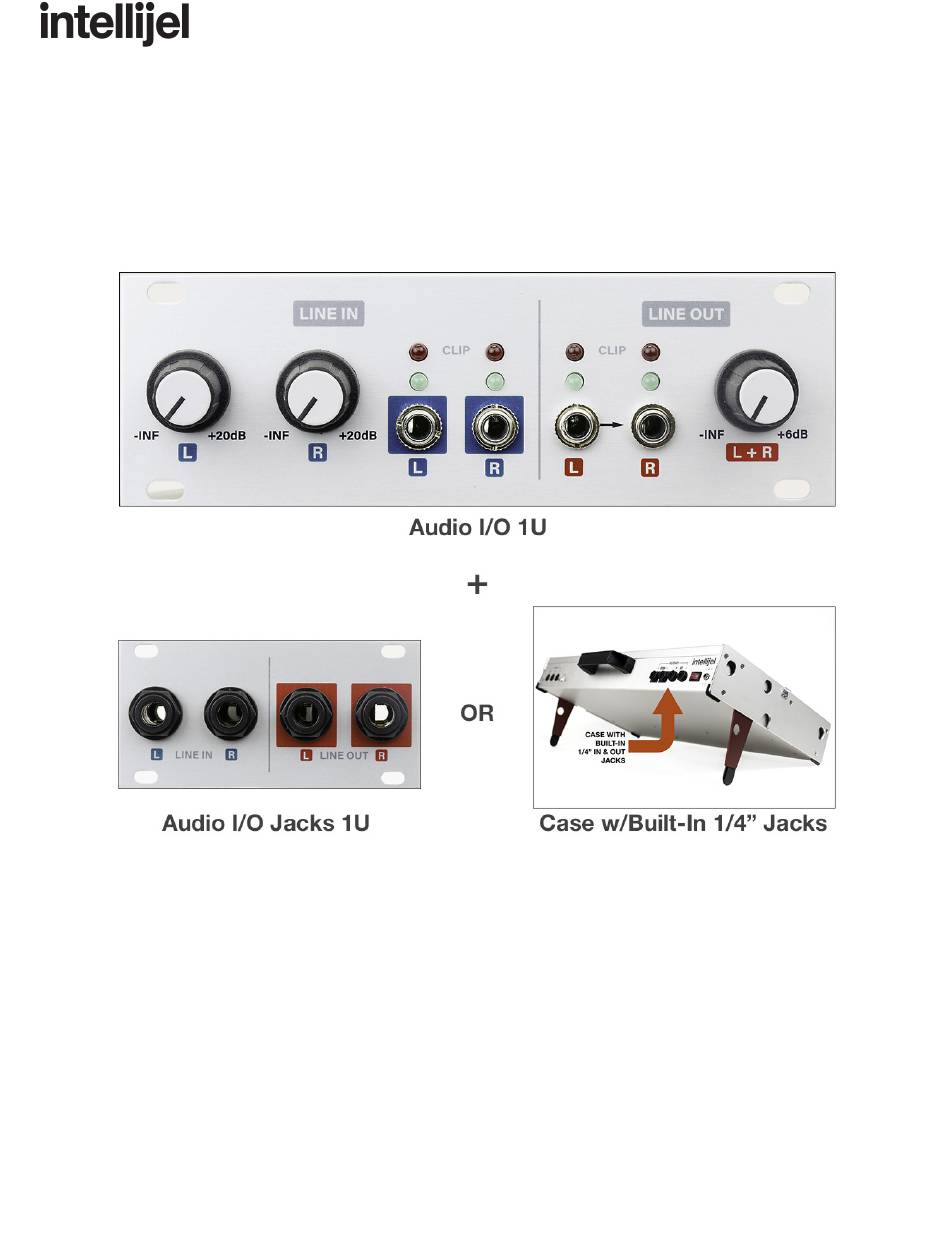

- Page 1 Audio I/O 1U Manual Audio I/O 1U System Dual Balanced Line Audio Input and Balanced Line Audio Output Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
Before Your Start Installing Your Module Connecting To The Audio I/O Jacks 1U Module Connecting the TRS Jacks on the 7U Case Front Panel (Audio I/O 1U) Controls Inputs & Outputs Front Panel (Audio I/O Jacks 1U) Inputs & Outputs ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Overview
DAW; and much more. The Audio I/O 1U system comprises two halves: an Audio I/O 1U module (for connecting to your modular gear), and either an Audio I/O Jacks module or a 7U case with built-in ¼” audio jacks ... -
Page 5: System
Audio I/O Jacks 1U module or an Intellijel 7U case as outlined below. ● Either an Audio I/O Jacks 1U module or an Intellijel 7U Case with built-in ¼” TRS audio jacks. Audio I/O Jacks 1U Module If you don’t own an Intellijel 7U ... -
Page 6: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... -
Page 7: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ... - Page 8 Audio I/O 1U Manual Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on ...
-
Page 9: Connecting To The Audio I/O Jacks 1U Module
The main Audio I/O 1U module ships with a ribbon cable for connecting to a set of ¼” TRS audio jacks — either those built-in to the Intellijel 7U case or those contained within the separately available Audio I/O Jacks 1U module. To connect the Audio I/O 1U module to an ... -
Page 10: Connecting The Trs Jacks On The 7U Case
The main Audio I/O 1U module ships with a ribbon cable for connecting to a set of ¼” TRS audio jacks — either those built-in to the Intellijel 7U case or those contained within the separately available Audio I/O Jacks 1U module. To connect the Audio I/O 1U module to an ... -
Page 11: Front Panel (Audio I/O 1U)
Front Panel (Audio I/O 1U) Controls A. LINE IN GAIN (L) knob - Adjusts the level of the signal coming into the modular via either the 7U Case’s left ¼” input jack or the Audio I/O Jack 1U module’s left ¼” input ... -
Page 12: Inputs & Outputs
Audio I/O 1U Manual E. OUTPUT VU LEDs - This pair of LEDs monitors the signal level going out of your modular. The green LED lights around 600mV rms (with a 1kHz sine), which indicates a ... -
Page 13: Front Panel (Audio I/O Jacks 1U)
Audio I/O 1U Manual Front Panel (Audio I/O Jacks 1U) Inputs & Outputs 1. LINE IN (L) - Connect the output of any external pro-level audio source to this ¼” TRS jack for processing within your eurorack modular. The signal present here will be ... -
Page 14: Technical Specifications
Audio I/O 1U Manual Technical Specifications Audio I/O Width 24 hp Audio I/O Jacks Width 16 hp Audio I/O Maximum Depth 36 mm Audio I/O Jacks Maximum Depth 38 mm Audio I/O Current Draw ...
