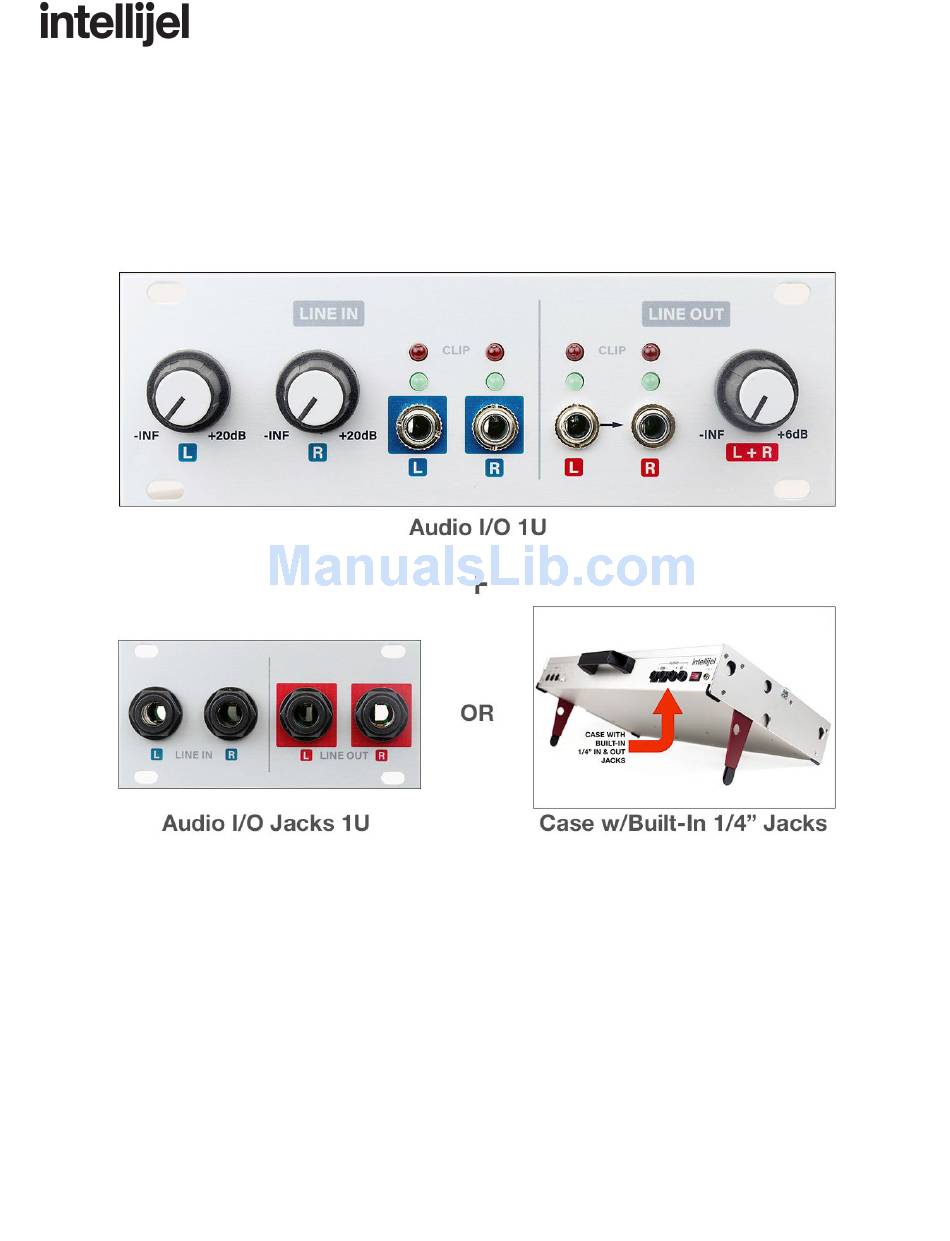

- Page 1 Audio I/O 1U Manual Audio I/O 1U System Dual Balanced Line Audio Input and Balanced Line Audio Output Manual Revision: 2018.02.07...
-
Page 2: Table Of Contents
Before Your Start Powering Your Module Connecting To The Audio I/O Jacks 1U Module Connecting the TRS Jacks on the 7U Case Front Panel (Audio I/O 1U) Controls Inputs & Outputs Front Panel (Audio I/O Jacks 1U) Inputs & Outputs... -
Page 3: Overview
DAW; and much more. The Audio I/O 1U system comprises two halves: an Audio I/O 1U module (for connecting to your modular gear), and either an Audio I/O Jacks module or a 7U case with built-in ¼” audio jacks (for connecting to your external studio gear). -
Page 4: System
Audio I/O Jacks 1U module or an Intellijel 7 U case as outlined below. ● Either an A udio I/O Jacks 1U module or an Intellijel 7 U Case with built-in ¼” TRS audio jacks. Audio I/O Jacks 1U Module If you don’t own an Intellijel 7U... -
Page 5: Installation
Audio I/O 1U Manual Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. Before Your Start Before installing a new module in your case you must ensure your case’s power supply has sufficient available capacity to power the module: ●... - Page 6 The other end of the cable, with a 16-pin connector, connects to the power bus board of your Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: Page 5...
- Page 7 Audio I/O 1U Manual If you are using another manufacturer’s power supply, check their documentation for instructions. Once connected, the cabling between a module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on both ends and that all the pins are correctly aligned.
-
Page 8: Connecting To The Audio I/O Jacks 1U Module
Audio I/O 1U Manual Connecting To The Audio I/O Jacks 1U Module The main A udio I/O 1U m odule ships with a ribbon cable for connecting to a set of ¼” TRS audio jacks — either those built-in to the I ntellijel 7U case or those contained within the separately available ... -
Page 9: Connecting The Trs Jacks On The 7U Case
IMPORTANT: Do not connect this jack to a power supply. NOTE: Do not try to connect the Audio I/O 1U to the MIDI circuit board, which is located at the opposite end of the 7U case. -
Page 10: Front Panel (Audio I/O 1U)
Audio I/O 1U Manual Front Panel (Audio I/O 1U) Controls A. LINE IN GAIN (L) knob - Adjusts the level of the signal coming into the modular via either the 7 U Case’s left ¼” input jack or the A udio I/O Jack 1U module’s left ¼” input jack. -
Page 11: Inputs & Outputs
Audio I/O 1U Manual E. OUTPUT VU LEDs - This pair of LEDs monitors the signal level going out of your modular. The green LED lights around 600mV rms (with a 1kHz sine), which indicates a decent signal level is present. Red indicates that the signal is clipping the output and comes out when the output is 6.2V rms. -
Page 12: Front Panel (Audio I/O Jacks 1U)
Audio I/O 1U Manual Front Panel (Audio I/O Jacks 1U) Inputs & Outputs 1. LINE IN (L) - Connect the output of any external pro-level audio source to this ¼” TRS jack for processing within your eurorack modular. The signal present here will be amplified to eurorack levels by the ... -
Page 13: Technical Specifications
Audio I/O 1U Manual Technical Specifications Audio I/O Width 24 hp Audio I/O Jacks Width 16 hp Audio I/O Maximum Depth 36 mm Audio I/O Jacks Maximum Depth 38 mm Audio I/O Current Draw 39 mA @ +12V | 28 mA @ -12V...
