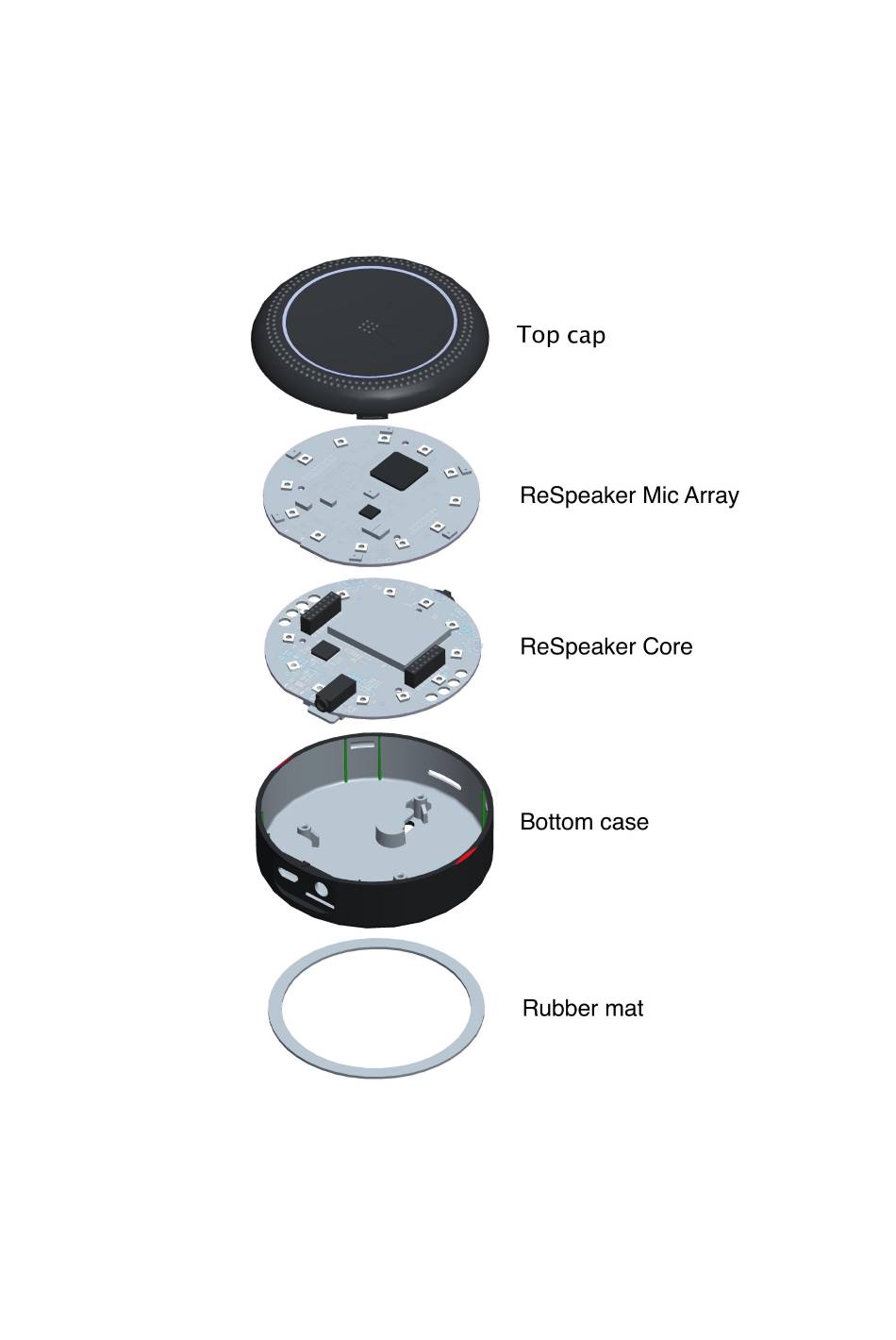

- Page 1 ReSpeaker Pro Case Assembly Instructions...
- Page 2 Step 1. Install ReSpeaker Core into the bottom case 1.Tilt ReSpeaker Core and install the navigator button into the hole. 2.Spin ReSpeaker Core to put it down. Step 2. Fix ReSpeaker Core with 3 screws •Make sure the audio jack and Micro-USB port on the board align with the holes on the bottom case. ...
- Page 3 Step 3. Insert ReSpeaker Mic Array •Please confirm the insertion direction of ReSpeaker Mic Array. Step 4. Snap the top cap •Align the alignment marks on the top cap and bottom case, snap them together. alignment marks...
- Page 4 Step 5. Stickup rubber mat •Tear off the PET sheeting on the rubber mat. •Stickup the rubber mat to the bottom case and make align it with the red circle.
- Page 5 Step 6. How to open the top cap •There are 2 grooves on the side of the bottom case. Place your thumb in a groove and open the top cap.
