U S E R M A N U A L
(CGA 870 Connection)
CAUTiON
300 Held Drive
Northampton, PA 18067 USA
ISO 13485 Certified
1900 SERiES
SAVE THESE iNSTRUCTiONS
Federal (USA) law restricts this device to
sale by or on the order of a physician.
Tel: (+001) 610-262-6090
Fax: (+001) 610-262-6080
www.precisionmedical.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Medical EasyPulse 5
Summary of Contents for Precision Medical EasyPulse 5
- Page 1 U S E R M A N U A L 1900 SERiES (CGA 870 Connection) SAVE THESE iNSTRUCTiONS Federal (USA) law restricts this device to CAUTiON sale by or on the order of a physician. 300 Held Drive Tel: (+001) 610-262-6090 Northampton, PA 18067 USA Fax: (+001) 610-262-6080 ISO 13485 Certified...
-
Page 2: Table Of Contents
CONTENTS RECEIVING / INSPECTION ..............2 INTENDED USE .................. 2 READ ALL INSTRUCTIONS BEFORE USING ........2 ExPLANATION OF ABBREVIATIONS ..........2 SAFETY INFORmATION - WARNINGS AND CAUTIONS ....3 PRINCIPLES OF OPERATION ............5 SPECIFICATIONS ................6 COmPONENT DESCRIPTION ............7 INSTALLATION .................. -
Page 3: Receiving / Inspection

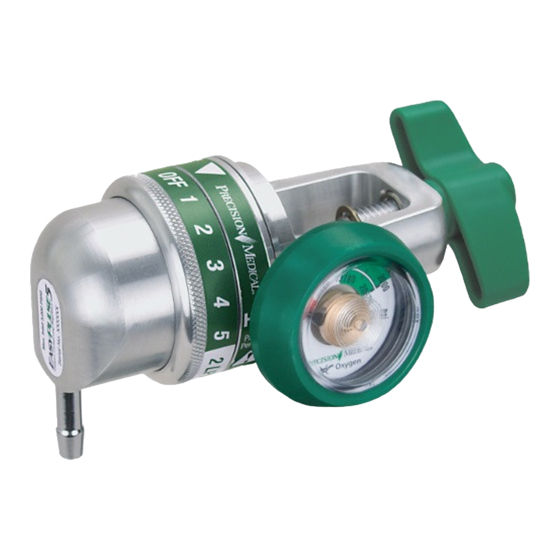

RECEiViNG / iNSPECTiON Remove the Precision medical, Inc. EasyPulse5 Oxygen Conserving Regulator (Conserver) from the packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. iNTENdEd USE To regulate high pressure cylinders that provide supplemental oxygen to patients who may have difficulty extracting oxygen from the air they breathe. -
Page 4: Safety Information - Warnings And Cautions
SAFETY iNFORMATiON - WARNiNGS ANd CAUTiONS Indicates an imminently hazardous situation dANGER which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation WARNiNG which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation CAUTiON which, if not avoided, may result in minor or... - Page 5 WARNiNG • ALWAYS confirm prescribed dose before administering to patient and monitor on a frequent basis. • Always follow ANSI and CGA standards for medical Gas Products and Oxygen Handling (G-4). • Keep cylinder valve closed at all times when cylinder is not in use. •...
-
Page 6: Principles Of Operation
CAUTiON • Only personnel instructed and trained in its use should operate the Conserver. • The Conserver contains magnetic, ferrous material that may affect the results of an mRI. • dO NOT autoclave. • dO NOT gas sterilize with Ethylene Oxide. • dO NOT clean with aromatic hydrocarbons. -
Page 7: Specifications
SPECiFiCATiONS inlet Pressure Range: 300 - 3000 psi (2068 - 20684 kPa) internal Regulated Pressure: 50 psi (345 kPa) Pressure Gauge Accuracy: 3 - 2 - 3% of full scale dimensions: ( Are approximate and may vary by model Model: 198705 Weight: 9.9 oz (279 g) -
Page 8: Component Description
COMPONENT dESCRiPTiON CAUTiON missing or illegible labels must be replaced, contact Precision medical, Inc. Indicator Dial T-Handle Pointer Cannula Contents Connection Gauge Yoke Seal Index Pins... -
Page 9: Installation
• dO NOT use without yoke seal. • dO NOT use plastic yoke seals. • Use Precision medical, Inc. yoke seal made of viton and brass. • The yoke seal supplied with the Conserver is reusable. CAUTiON •... -
Page 10: Operating Instructions
OPERATiNG iNSTRUCTiONS 1. Attach a standard adult single lumen oxygen nasal cannula, no longer than 7 feet (2.1 m) to the Conserver’s outlet according to the cannula manufacturer’s instructions. CAUTiON • dO NOT use pediatric, low flow nasal cannulas or oxygen masks with the Conserver. - Page 11 • ALWAYS confirm prescribed setting before administering to patient and monitor flow on a frequent basis. WARNiNG • Use only Precision medical, Inc. carry bag designed for the EasyPulse5 to prevent an oxygen enriched environment. • dO NOT place the unit under clothing while in use. When the Conserver is in use, a small amount of oxygen is vented.
-
Page 12: Maintenance / Cleaning
• dO NOT immerse the Conserver in any kind of liquid. • dO NOT attempt to repair the EasyPulse5 Oxygen Conserving Regulator. • All repairs must be performed by Precision medical, Inc. or Authorized Representative. RETURNS Returned products require a Returned Goods Authorization (RGA) number, contact Precision medical, Inc. -
Page 13: Troubleshooting
5. Conserver not 5. Check position of sensing breath cannula in nose, DO NOT breathe through mouth Leaking at 1. missing or defective 1. Replace with cylinder yoke seal Precision medical connection yoke seal 2. Contact your 2. Defective cylinder Provider valve... -
Page 14: Replacement Parts
REPLACEMENT PARTS description Part # Cannula 504833 Yoke Seal 1221 ACCESSORiES description Part # Carry Bag m6 503920 Carry Bag m4/m6 504184 Carry Bag mL6/mL9 504185 Carry Bag with Conserver properly shoulder strap installed in Carry Bag... -
Page 15: Limited Warranty
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. The representative of Precision Medical, Inc. or any retailers are not authorized to make oral warranties about the merchandise described in this contract, and any such statements shall not be relied upon and are not part of the contract for sale. - Page 16 OF CONFORMiTY manufacturer: Precision medical, Inc. 300 Held Drive, Northampton, PA 18067, USA CONTACT: Quality manager Phone: 610-262-6090 Authorized European Representative: Emergo Europe (European Office) molenstraat 15 2513 BH, The Hague The Netherlands Phone: +31 (0) 70.345.8570 Fax: +31 (0) 70.346.7299...
