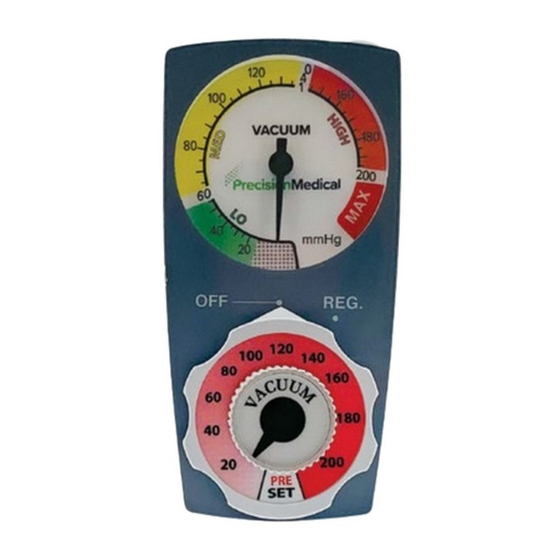

U S E R M A N U A L
MODEL SERIES: PS3000
CAUTION
300 Held Drive
Northampton, PA 18067 USA
ISO 13485 Certified
PS3300 (Shown)
SAVE THESE INSTRUCTIONS
Federal (USA) law restricts this device to sale by or
on the order of a physician.
CONTINUOUS INTERMITTENT
PS3100
PS3300
Tel: (+001) 610-262-6090
Fax: (+001) 610-262-6080
www.precisionmedical.com
CONTINUOUS &
PS3400
PS3500
PS3600
Patent Pending
PS3100 (Shown)
Advertisement
Table of Contents
Related Manuals for Precision Medical PS3000
Summary of Contents for Precision Medical PS3000
- Page 1 U S E R M A N U A L CONTINUOUS & CONTINUOUS INTERMITTENT MODEL SERIES: PS3000 PS3400 PS3100 PS3500 PS3300 PS3600 Patent Pending PS3300 (Shown) PS3100 (Shown) SAVE THESE INSTRUCTIONS Federal (USA) law restricts this device to sale by or CAUTION on the order of a physician.
-
Page 2: Table Of Contents
SPECIFICATIONS ................3 OPERATING INSTRUCTIONS ............4 PARTS DESCRIPTION ..............5 REPAIR KITS ................6 DISASSEMBLY INSTRUCTIONS ..7 for PS3000, PS3100, PS3500 & PS3600 Series DISASSEMBLY INSTRUCTIONS .....7 for PS3300 & PS3400 Series ASSEMBLY INSTRUCTIONS ............7 VACUUM REGULATOR CLEANING ILLUSTRATION ....8 CLEANING / DECONTAMINATION ..........9 MAINTENANCE ................9... -
Page 3: Receiving / Inspection
RECEIVING / INSPECTION Remove the Precision Medical, Inc. Preset Vacuum Regulator from the packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. INTENDED USE The Preset Vacuum Regulator is intended to regulate and display the amount of vacuum from a central vacuum system used in various medical suctioning procedures. -
Page 4: Specifications
- Intermittent) Provides an adjustable vacuum level that cycles between ON and OFF FLOW RATES REG MODE @ 200 mmHg 48 l/min PS3000, PS3100 & PS3300 LINE MODE 55 l/min INT. MODE (PS3300 Only) 10 l/min REG MODE @ 300 mmHg 50 l/min PS3000HV, PS3100HV &... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS CAUTION Inspect the Preset Vacuum Regulator for visual damage before use, DO NOT USE if damaged. NOTE: • Overflow protection should be used with the Vacuum Regulator. (i.e. Filter, Vac Trap, Canister equipped with float shutoff). • The Digital / Analog Dual Gauges operate independently; if the digital gauge fails, the analog gauge will still function and vice versa. -
Page 6: Parts Description
PARTS DESCRIPTION CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc. PS3000, PS3100, PS3500 & PS3600 Series -Digital -Analog QTY - 6 These PLACES components must always be kept together as a matched set. QTY - 4... -
Page 7: Repair Kits
Back Case 1831 Battery for Dual Analog/Digital Gauge 8066 * HV Models ONLY (PS3300HV) REPAIR KITS Analog Part# Digital Part# PS3000 / PS3000D Vac Reg RKPS6000 RKPS6000D PS3000HV / PS3000DHV Vac Reg RKPS6000HV RKPS6000DHV PS3100 / PS3100D Vac Reg RKPS6100... -
Page 8: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS for PS3000, PS3100, PS3500 & PS3600 Series (Reference “PARTS DESCRIPTION”) 1. Loosen the Set Screw (Item# 11) in Selector Knob. Pull the Regulator Module/Control Knob Assembly (Item # 12) away from case. (The Regulator Module (Item # 10) is threaded onto the Control Knob Assembly. -
Page 9: Vacuum Regulator Cleaning Illustration
Preset Vacuum Regulator and will void the warranty. • If Preset Vacuum Regulator becomes internally contaminated, warranty is voided, DO NOT send back to Precision Medical, Inc. for repair. Follow the contaminated equipment protocol at your facility. • Ensure all connections are tight and leak free. -
Page 10: Cleaning / Decontamination
Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet, www.precisionmedical.com. Note: Federal Law prohibits shipping of BioHazard materials Via U.S. mail. -
Page 11: Disposal Instructions
DISPOSAL INSTRUCTIONS Dispose of the Preset Vacuum Regulator in accordance with local regulations. Please Recycle WARNING Biohazardous devices should be disposed of properly. TROUBLESHOOTING If the Preset Vacuum Regulator fails to function, consult the Troubleshooting Table below. If problem cannot be solved, consult your Provider. Problem Probable Cause Remedy... -
Page 12: Limited Warranty
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHER WARRANTY OF QUALITY, WHETHER EXPRESSED OR IMPLIED. Precision Medical, Inc. shall not under any circumstances be liable for special, incidental or consequential damages including but not limited to lost profits, lost sales, or injury to person or property. Correction of non-conformities as provided above shall constitute fulfillment of all liabilities of Precision Medical, Inc.
