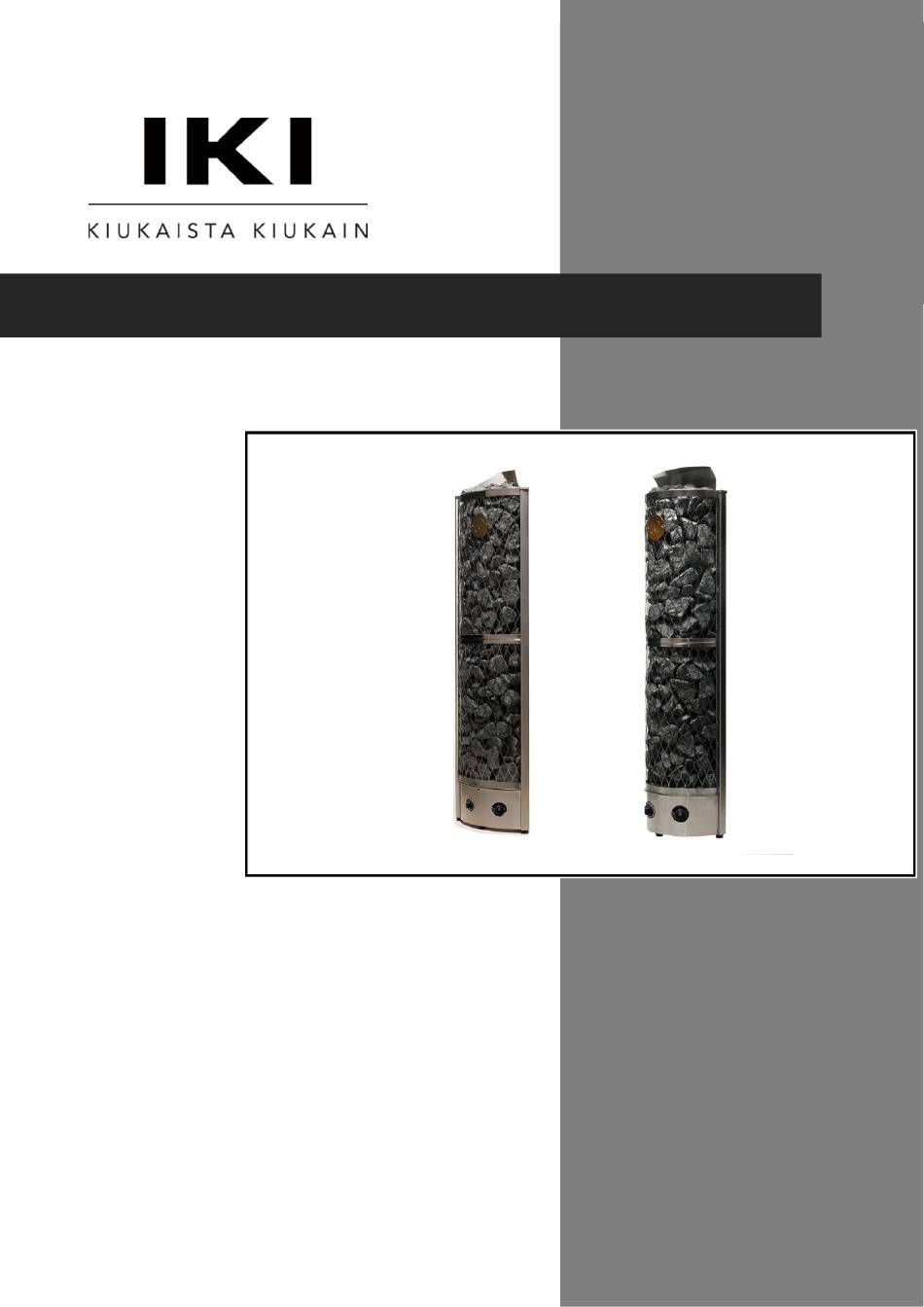

- Page 1 Instructions for installation and use Corner IKI and Wall IKI heaters with built‐in control unit Corner IKI 6 kW Wall IKI 6 kW Corner IKI 9 kW Wall IKI 9 kW 05/2015 ...
- Page 2 The warranty does not cover defects caused by faulty installation or misuse of the heater. CONTACTS Technical support IKI‐Kiuas Oy Vallila pick up & storage Production (Mon ‐ Fri 9‐16) Hakaniemenkatu 11 Pälkäneentie 5 Niilontie 10 + 358 (0) 600 550 133 00530 Helsinki 00510 Helsinki 76150 Pieksämäki (1,49 €/min + l.c.c.) ikikiuas@ikikiuas.fi vallila@ikikiuas.fi tuotanto@ikikiuas.fi tuki@ikikiuas.fi Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 1 ...
-
Page 3: Table Of Contents
9 Trouble‐shooting 10 Warranty 11 Mechanical ventilation 13 Warnings 14 Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 2 ... -
Page 4: Installation Of The Heater
Detach the two stainless steel mesh frames from one another using the key (2,5 mm hexagon socket). (Pic 2). Lift the upper mesh frame while pilig the stones to the bottom part (pic 3). Check that the heating elements stand up straight. If they have been bent, carefully straighten them. PILING OF THE STONES: Wash the stones before piling. Detach the two stainless steel mesh frames from one another using the key (2,5 mm hexagon socket). In the 9kW model, check that the guide for the resistors is in place at the top of the heater and keeps them upright. Pile stones to the lower part of the frame until the level reaches 10 cm from the middle part (pic4). This helps install the upper part within the lower frame. Pile stones to the fill the upper part. You may loosen the resistor guide to pile the stones in until half way done. To complete the piling, reattach the guide properly and leave in place. The heating elements should be carefully covered. Please make sure that elements make NOT contact with each other or with the heater frame. Olivine and olivine‐dolerite stones are recommended, in sizes smaller than 10 cm in diameter. The stones should not be placed too tightly together allowing for free airflow between the stones. In communally or publicly used saunas we recommend the use of ceramic Kerkes stones around the heating elements (www.kerkes.fi). Kerkes stones support and help preserve the resistors and they do not disintegrate prematurely due to high temperature changes. Note that the use of soapstone and natural stones is allowed only on the outer edges and on the top of the heater. Affix the heater to the wall using the steel supporters (pic 5). Check that the heater stands steady before use. Remember to also reaffix the frame attachers. Affix water guide to the upper part of the heater (pic 6). We recommend the use of safety railings around the heater. However, the stainless steel mesh frame does not over‐heat the way ordinary steel‐cased heaters do. The surface of the stones sinks in a little after the heater is in use. Frequently check that the heating elements do not become exposed. If this should happen, pile in more stones. The disintegration of the stones depends on the type of stones and the frequency of use. The condition of the stones should be checked yearly and broken stones must be replaced with new ones. Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 3 ... -
Page 5: Pictures Of Installation To The Corner
Pictures of installation – Corner IKI heater Pic 1 Pic 2 Pic 3 Pic 4 Pic 5 Pic 6 Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 4 ... -
Page 6: Pictures Of Installation Of The Wall
Pictures of installation – Wall IKI heater Pic 1 Pic 2 Pic 3 Pic 4 Pic 5 Pic 6 Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 5 ... -
Page 7: Connecting Heater To Electrical Network
Temperature restrictor The temperature restrictor switches off the power if the temperature in the sauna climbs dangerously high due to a malfunction. The temperature restrictor can be reset after the heater has cooled down, from the button located in the front panel. If the restrictor cuts the power off again, it is not due to a temporary malfunction. The cause of the malfunction needs to be determined by a qualified electrician before resetting. Thermostat To control the temperature of the heater use the knob in the control panel. When heating the sauna for the first time, rotate the knob to its maximum position for one hour. Check that the temperature in the sauna is approx. 50–60 degrees Celsius. Turn the temperature knob anti‐ clockwise until it clicks off. Adjust the temperature to whichever direction you wish. The new settings will take effect the next time you use the heater. Timer The timer can be preset to start heating in 1 to 8 hours. The heater's operating time is 1 to 4 hours. The timer operates as the main power switch of the heater and it switches the heater on and off according to your settings. The heater is on for 4 hours from the preset heating time unless it is manually switched off when no longer needed. To start heating immediately: Rotate the knob to the operating range (Section A in the image) to run for 0–4 hours. To pre‐set heating: Rotate the knob to the pre‐setting range (section B in the image), to begin in 1 to 8 hours. The heater switches on when the knob has rotated itself to the operating range. WARNING! Always make sure after you finish sauna‐bathing that the power is switched off and no longer powers the heat resistors when set to zero. Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 6 ... -
Page 8: Circuit Diagram
Circuit diagram 1 = Input 3*400V, N, PE 5x1,5 mm² – 5x2,5 mm² depending on heater model 2 = Timer 8+4 H 3 = Thermostat/over‐heat protector40‐95 °C 4 = Heating elements Corner IKI 6 kW 3x2000W Wall IKI 6 kW 3x2000W Corner IKI 9 kW 3x3000W Wall IKI 9 kW 3x3000W 5 = Input 33, power restrictor Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 7 ... -
Page 9: Safety Distances
Safety distances for the heaters Corner IKI: Wall IKI: NOTE! Safety distance upwards from the heater is measured from the surface of the stones, not from the water guide. . ... -
Page 10: Heater Models
Heater models Room size Heater Heater Stone Wattage height radius capacity Fuse Cable Corner IKI 6 kW 5‐9 m³ 139 cm 30 cm 80 kg 6 kW 3x10A 5x1,5 mm² Corner IKi 9 kW 8‐16 m³ 129 cm 38 cm 140 kg 9 kW 3x16A 5x2,5 mm² Room Heater Heater Stone Wattage ... -
Page 11: Troubleshooting
Troubleshooting If the heater or sauna room does not heat up, check that: The power is on. The timer is set to the operating range. The temperature knob is set to a higher temperature than the temperature in the sauna room. The fuses are intact. The temperature restrictor (overheat protector) has not gone off. If temperature restrictor has gone off, the reason for this must be solved before using heater again. The stones are piled correctly If the wooden walls / parts take on a darker shade, check safety distances and piling of the stones does not leave resistor exposed or touching one another. If the resistors are visible they emit excessive heat. protective cover for capillary sensors Timer Thermostat Reset button Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 10 ... -
Page 12: Warranty
Warranty IKI‐Kiuas Ltd (the manufacturer) assures a warranty to its products as stipulated here, guaranteeing the quality and functionality of the products during the warranty period. The warranty applies to heaters sold and used in Finland. The warranty requires that the buyer follow the instructions regarding the placement of the heater, its installation, use and maintenance as well as those regarding the qualities of the stones used in the heater. The length of the warranty period is 24 month from the day of purchase or from the day of purchase. The warranty period for spa saunas and other public‐use saunas is 6 months, or determined according to the frequency of use. Contact the manufacturer for more details. The warranty for electric heaters requires that: In case of defect or malfunction, the buyer must always contact the manufacturer or sales agent before searching for the cause or attempting to repair it. Any repairs must be agreed upon in writing with the manufacturer. In private apartment use, the heater’s stone space needs to cleaned out and re‐piled at least once a year and weathered stones need to be replaced with new ones. In institutional or professional use, the heater’s stones must be re‐piled at least three times a year during the warranty period. If this is not done, the warranty ceases to apply. In addition, the stones must be changed to new ones at least once a year. Proof, such as the product’s purchase receipt, must be presented at request. The use of ceramic heater stones (other than those form Kerkes) is prohibited. The warranty does not cover dismantlement or reinstallation on sauna benches, removal of sauna stones nor re‐piling them. IKI‐Kiuas recommends using for the lower levels sauna benches that can be moved without using tools to dismantle structures. The warranty for replacement parts is 12 months from the day of purchase. The replacement for the damaged part will be delivered to the sales agent cost free. The installation of the replacement part must be carried out by a mechanic that has been approved by the manufacturer. The manufacturer is not liable to reimburse any costs due to the removal of the faulty part or the installation of the replacement. The faulty part must be returned to the manufacturer at request and at their expense. The manufacturer will issue its freight contacts number for the delivery of the faulty part. Receipt from the reseller or certificate from a manufacturer’s authorized mechanic will function as a warranty certificate. Warranty based on the conditions set by The Electrical Contractors´ Association of Finland STUL. STUL‐warranty applies to electric heaters and control units if agreed upon in writing. In such cases, the conditions STUL has set are attached to these warranty conditions. When the use of STUL warranty has been agreed upon, they supersede these warranty regulations, if contradictory. Limitations to warranty: The product owner must take good care of the product. On receiving the product, the owner is expected to check that it does not show signs of ... - Page 13 Manufacturer’s actions regarding warranty, continuation of warranty: In receipt of a substantiated warranty claim, the manufacturer will repair or change the product. This is done in the manufacturer’s expense, and the manufacturer is free to select the most cost‐effective alternative. The warranty for replacement parts is outlined above. The replacement part is granted warranty according to specifications. The warranty for a repaired part continues as before. The manufacturer is not liable for reimbursing any expenses, business loss or other direct or indirect harm occurred to the buyer from damages or malfunction. Quality guarantee / Freight guarantee Guarantee of materials. The manufacturer guarantees the durability of the stainless steel parts (resistor platform and frame) in private home use for 10 years. During the warranty period any defects that appear in the heater's raw materials or are production‐based will be repaired free of charge. For example, the use of seawater on the heater is forbidden. Read through the requirements for water quality in the installations instructions. The warranty does not cover colour changes, slipping or hair‐line fractures, characteristic to natural stones, which do not affect the use or the safety of the heater. Damages occurred while shipping must to be recorded in the waybill when the product is received or within 7 days of delivery. Shipping damage must also always be reported to the shipping company’s last contact. The damaged part needs to be stored for inspection. Insurance compensates for the new part, which will be delivered by a public transporter. In all issues concerning warranty contact the store the product was bought from. Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 12 ...
-
Page 14: Mechanical Ventilation
Mechanical ventilation The ventilation in the sauna room needs to be considered. Proper air‐flow allows bathers to enjoy fresh, oxygen‐rich air. The air should fully change 6 times an hour. The supply air inlet should be installed on the wall or the ceiling at about 500 mm above the heater. The supply air vent should be 50‐100 mm in diameter. The outlet vent should be located as far away from the heater as possible, close to the floor. The outlet vent should be twice the size of the inlet vent. Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 13 ... -
Page 15: Warnings
Warnings 1. Staying in the hot sauna for long periods increases body temperature, which may be dangerous. 2. Keep away from the heater when it's hot. The stones and outer surface of the heater may burn. 3. Prevent children from getting close to the heater. 4. Do not leave children, handicapped or ill people to use the sauna without supervision. 5. Consult your doctor about any health concerns regarding sauna‐bathing. 6. Consult child welfare clinic about taking little babies to the sauna. 7. Always move carefully in the sauna, as the benches and floors may be slippery. 8. Never go to a hot sauna under the influence of alcohol, medication or narcotics. 9. Never sleep in a hot sauna. 10. Sea‐air and a humid climate may corrode the metal surfaces of the heater. 11. Do not hang clothes to dry in the sauna, as this may cause a risk of fire. Excessive moisture content may also cause damage to the electrical equipment. Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 14 ... - Page 16 Copyright IKI‐ Kiuas Ltd | We reserve the right to changes Instructions for installation and use | Corner and Wall IKI with built‐in control unit Page 15 ...
