Planet XGS3-PWR150-AC User Manual

1 Overview

Thank you for purchasing PLANET 150-watt AC power
supply.
Power Supply Unit
XGS3-PWR150-AC
Open the box of the Redundant Power Supply unit and
carefully unpack it. The box should contain the following
items:
 The AC Power Supply unit x 1
 User's Manual x 1
If any item is found missing or damaged, please contact
your local reseller for replacement.
3 Installing Redundant Power
Supply Unit
The XGS3-PWR150-AC is hot-swappable during
operation; there is no need to power off the
Switch before removing the module.
Note
Follow these steps to install the redundant power into the
Switch:
1. Place the Switch on a flat surface. Grasp the thumbscrew
on the sides of the blank bracket and turn counter-clock-
wise to unscrew them. You can also use a screwdriver
to remove the blank bracket. Do not discard the blank
bracket. Put the blank bracket back if you remove power
the module from the Switch.

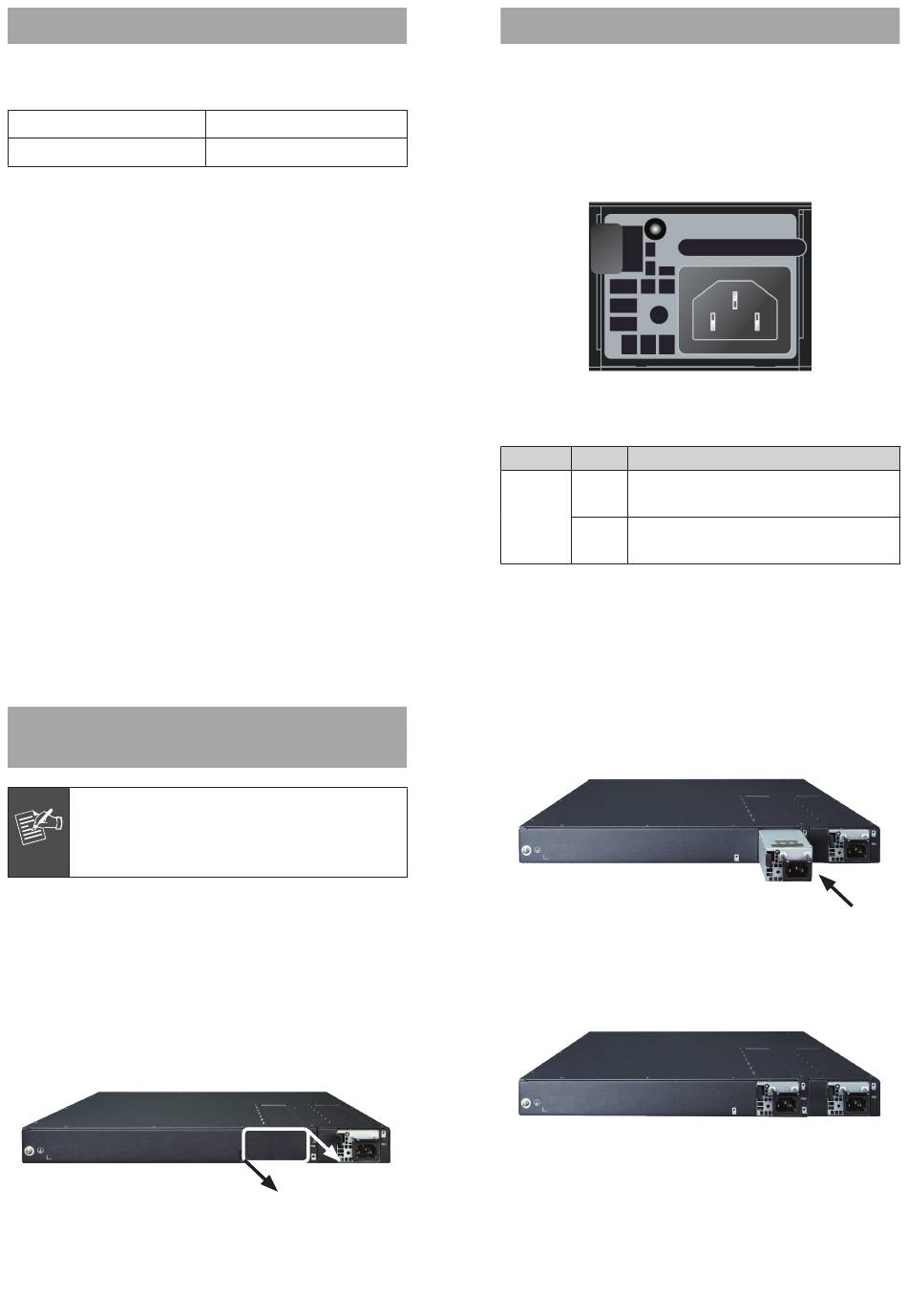

Figure 3-1 Removing the blank bracket
Input Range
100 to 240V AC
– 1 –
– 3 –

2 Introduction

Before installation, please be sure to read this user's
manual carefully to successfully complete the installation of
the machine. This manual shows how to quickly install the
power into the XGS3-24042/XGS3-24242.
The following figure illustrates the front panel of the XGS3-
PWR150-AC.
Figure 2-1 XGS3-PWR150-AC Front View
LED Color
Lights to indicate AC power input has
Green
power.
LNK/ACT
Blinks to warningly indicate AC power
Red
input has failed.
2. Install the redundant power by inserting it into the rails
and sliding it.
Figure 3-2 Inserting the XGS3-PWR150-AC
3. Hear the redundant power snap in place to finish inser-
tion.
Figure 3-3 Inserting the XGS3-PWR150-AC
Function
