Summary of Contents for Casals CEPHIRUS-2

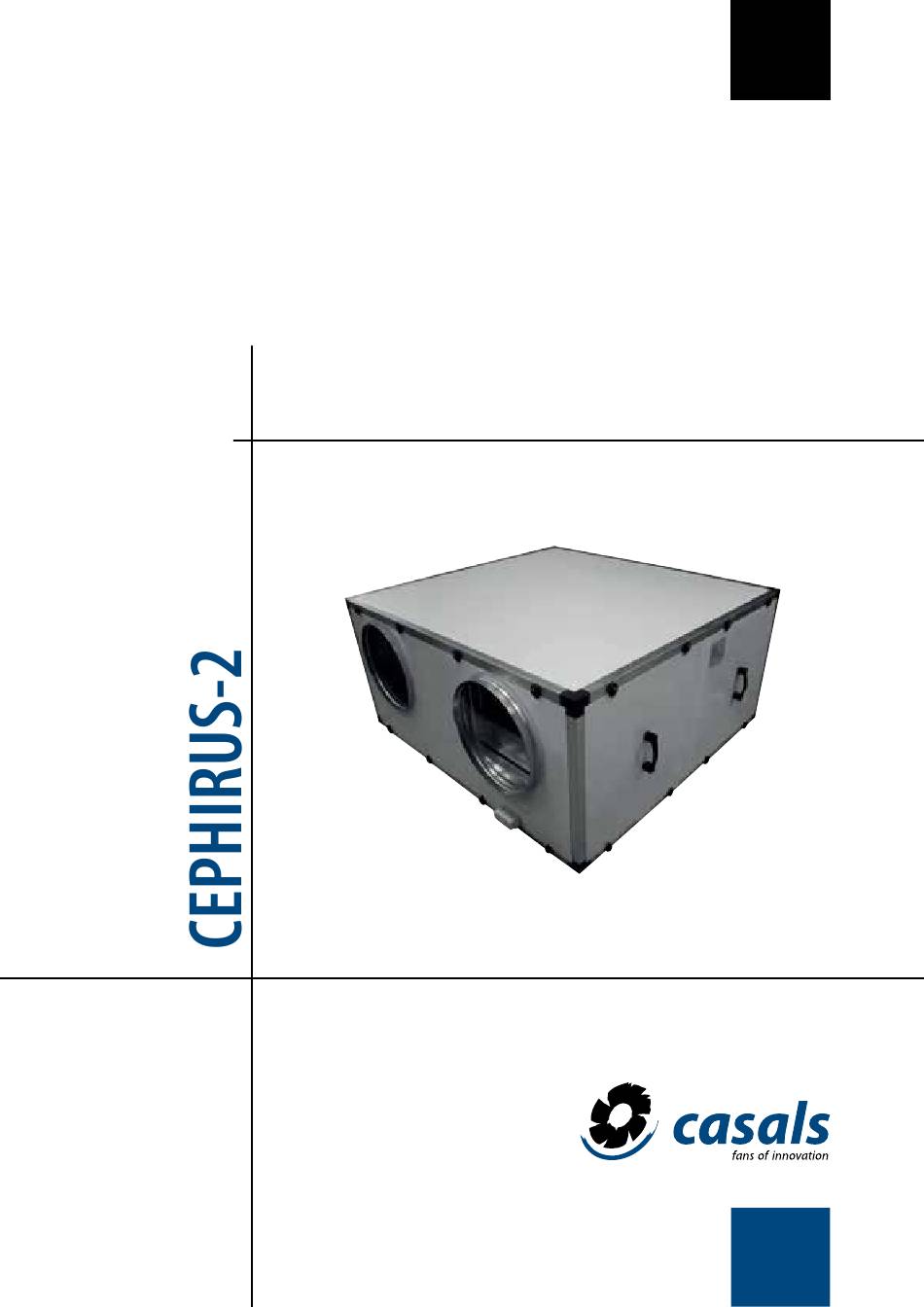

- Page 1 USER MANUAL AND INSTALLATION www.casals.com CV072018-1...
-
Page 2: Table Of Contents
INDEX SECURITY RULES AND MARKING CE p. 3 GENERAL RULES p. 3 MAINTENANCE p. 3 EQUIPMENT WARRANTY p. 4 CONDITIONS OF INSTALLATION p. 5 RESIDUAL RISKS p. 5 SIGNALS PLACED ON THE MACHINE p. 5 - Prohibition signs - warning information signs - identification signs RECEPTION OF THE MERCHANDISE p. -
Page 3: Security Rules And Marking Ce
Therefore, we strongly recommend all the people who manipulate the machine to follow the rules of accident prevention in their place and in their country. Casals ventilation is exempt from any liability for any damage caused to people or property arising from non-compliance with safety regulations, as well as any changes made to the product. -
Page 4: Equipment Warranty
If, during the guarantee period, the product resulting from recognizing the problems of manufacturing defects, Casals ventilation or its authorized technical services, shall, to the free repair on site or (according to the criteria of Casals ventilation) to replace the product or make available to the customer for the replacement of defective components according to the following conditions. -
Page 5: Conditions Of Installation
CONDITIONS OF INSTALLATION The installation inside or outside buildings with an ambient temperature between -15 ° and + 50 ° C It should be avoided: - Areas near heat sources, steam, gas or flammable liquids and / or explosives, especially dusty areas, proximity to water sources such as tanks, showers or swimming pools. -
Page 6: Reception Of The Merchandise
RECEPTION OF THE MERCHANDISE Each product is checked carefully before shipment. At the time of reception, check that the product has not been damaged during trans- port; otherwise, communicate the incident to the carrier. The carrier is responsible for possible damages derived from transportation. -
Page 7: Wiring Diagrams
WIRING DIAGRAMS The ventilators are one of the vital components for the correct functioning of Casals ventilaión recovery units, so their correct connection must be guaranteed in accordance with the following diagrams presented; CEPHIRUS-2 600 CEPHIRUS-2 900 Phase gray green/yellow... -
Page 8: Configurations
CONFIGURACIONES Aire nuevo Horizontal version with coil and Control CEPHIRUS-2 & CEPHIRUS-2 EEC HORIZONTAL Aire extraido Aire nuevo CEPHIRUS-2 & CEPHIRUS-2 EEC HORIZONTAL Aire extraido Aire nuevo Fresh air CEPHIRUS-2 & Exhausted air Aire extraido CEPHIRUS-2 EEC VERTICAL Vertical version with control (coil module mounted when purchased separately from the product catalogue, see for more information). -
Page 9: Condensate Board
The installation of a cut-off switch is of major importance in order to safeguard those who perform safety / maintenance interventions in ventilation equipment, and is obligatory to comply with the Machinery Directive 2006/42 / EC. Casals ventilación recovery units can be supplied with mounted cutting switches. In the images shown below, the cut-out switch connection diagram for single-phase and three-phase. -
Page 10: Accessories - Pressure Switch
The control of the flow rate is carried out using a relationship between the air flow that moves and the differential pressure as indica- ted in the images for single-phase fans and three-phase fans. Single phase - CEPHIRUS-2 600/900/1500/2100/3500/4600 Three phase - CEPHIRUS-2 6400/7000 A - Differential of the pressure sensor. - Page 11 The system uses a differential pressure sensor and a frequency converter (three-phase fans) or a voltage inverter (single-phase fans). The differential pressure sensor has different operating ranges, and the range of choice depending on the regulation to be performed. Range of values of the SPS differential sensor ACCESSORIES - CONSTANT AIR FLOW The adjustment of the constant current is made in the frequency converter (three-phase fans) or the voltage converter (single-phase fans)
-
Page 12: Accessories - Co Control
The system uses a carbon dioxide sensor and a frequency converter (three-phase fans) or a voltage inverter (single-phase fans). Single phase - CEPHIRUS-2 EEC 600/900/1500/2100/3500/4600 Three phase - CEPHIRUS-2 EEC 6400/7000 A - CO sensor. - Page 13 The regulation of the CO control is carried out in the frequency converter (three-phase fans) or the voltage converter (single-phase fans) being, in the case of inverter frequency, a percentage value of the reading range of the sensor, and if the inverter of voltage the value of the desired concen- tration of carbon dioxide (ppm).
-
Page 14: Accessories - Water Coil
For correct operation and to avoid damage to the coil, attention must be paid to the following warnings: • Make sure that the safety thermostat is installed correctly. • All connections must be made in accordance with good art practices. CEPHIRUS-2 600 - 3 kW CEPHIRUS-2 900 - 12 kW CEPHIRUS-2 2100 - 12 kW... - Page 15 CEPHIRUS-2 3500 – 18 kW CEPHIRUS-2 4600/6400 -27 kW CEPHIRUS-2 7000 - 36 kW TP- Thermal protection (Safety thermostat) CV072018-1...
-
Page 16: Resolution Of Problems
RESOLUTION OF PROBLEMS PROBLEMS POSSIBLE CAUSE CHECK POSSIBLE SOLUTION Different point of performance Check the flow rate and pressure drop; Reduce the rotation speed; High consumption of the predicted; The fan speed; Create a pressure drop in the insta- engine Excess flow;... -
Page 17: Declaration Of Conformity
DECLARATION OF CONFORMITY We hereby declare, under our only responsibility, that the CASALS brand products described in this manual comply with the directi- ves 2014/35/EU (Low Voltage),2006/42/EC (Machinery), 2014/30/EU (Electromagnetic compatibility), 2009/125/EC* (Ecodesign) and with all the standards mentioned in this instruction manual.
