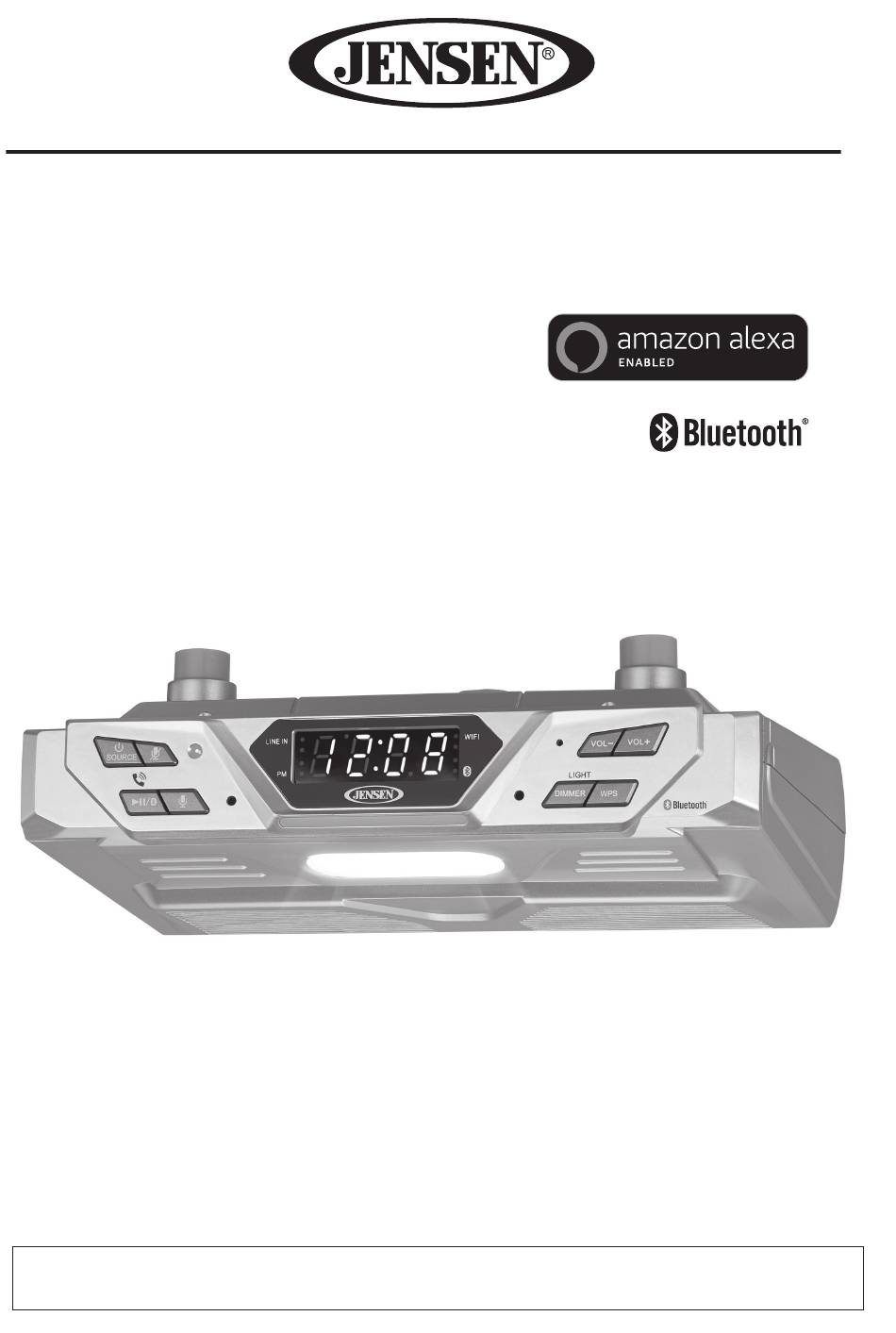

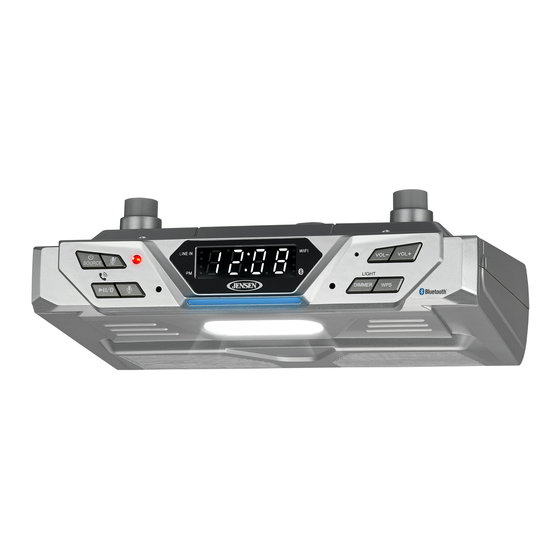

- Page 1 AMAZON ALEXA-ENABLED BLUETOOTH/WI-FI UNDER CABINET SMART MUSIC SYSTEM MODEL: JAS-725 USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. -
Page 3: Compliance With Fcc Regulations
ON PLACEMENT Do not use the unit in places, which are extremely hot, cold, dusty or humid. Install the JAS-725 as far as possible from a source of noise. (for example, refrigerator, microwave oven, fluorescent lamp, etc.) Do not restrict the airflow of the unit by placing it in a place with poor ventilation, by covering it with a cloth or by placing it on a carpet. -
Page 4: Dear Jensen® Customer
The serial number of this product is found on its top cover. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: JAS-725 Serial Number: ____________________... -
Page 5: Front View
PREPARATION FOR USE Installing the JAS-725 under a cabinet 1. Make the position of the 3 holes by using the supplied template. Use a drill to make the holes. 2. When the cabinet door overhangs the shelf and obstructs the unit, you can adjust the unit/shelf height. - Page 6 CONTROLS ALEXA MIC OFF Indicator POWER ON / OFF / SOURCE Button PLAY/PAUSE; BLUETOOTH PAIR; ANSWER CALL / END CALL BUTTON MIC ON/OFF/FACTORY DATA RESET BUTTON TAP TO TALK BUTTON CABINET MOUNTING POINT VOLUME+(UP) and VOLUME- (DOWN) BUTTONS WPS BUTTON (Wi-Fi Protected Setup) LIGHT ON/OFF;...
- Page 7 JAS-725 with your Wi-Fi network. Follow the instructions on the Jensen Wi-Fi Audio App. Play/Pause Tap to play or pause audio playing from the JENSEN Wi-Fi Audio app or from a Bluetooth connected device. Bluetooth Pair Press and hold to connect to a new Bluetooth device.
-
Page 8: Getting Started
CONNECTING THE JAS-725 TO A WI-FI NETWORK IMPORTANT: • The JAS-725 only operates on a single band (2.4 GHz) Wi-Fi network. If you are having problems connecting the JAS-725 to your network, check your router settings and make sure the 2.4 GHz signal is turned and you are accessing the correct band before proceeding. -
Page 9: Initial Wi-Fi Connection
App. Connecting to a Wi-Fi Network In order to use the Wi-Fi feature of the JAS-725, the unit and your mobile device must both be connected to the same Wi-Fi network. The JENSEN Wi-Fi Audio app will guide you through the process, just follow the on-screen instructions and have your network password ready. - Page 10 From the drop down menu, select the JAS-725 from the list and press “Next” (Image C, below). The app will direct you to your mobile device’s Wi-Fi Settings Menu to connect directly to the JAS-725. Press “Settings” (Image D, below) to go to your mobile device’s Wi-Fi settings menu, then select JAS-725_XXXX (Where XXXX is the last 4 digits of JAS-725 mac address) and return to the app when you are connected.
- Page 11 Connecting to Your Amazon Account When the JAS-725 Wi-Fi connection is completed, the app will prompt you to link the unit with the Amazon Alexa app on your device (Image G, below). If you do not have the Amazon Alexa app on your device, refer to the instructions in the “Downloading the Alexa App”...
-
Page 12: Playing Screen
Return to JENSEN Wi-Fi Audio App, you will see the JAS-725 now appears on the “DEVICE LIST” screen. PLAYING SCREEN DEVICE LIST JAS-725_XXXX Swipe left for Device List Swipe right for Playing Screen Pop Music To add more speakers touch the “+” icon in the top right corner of your smartphone screen and repeat the above steps. - Page 13 1. Turn on the unit and select Wi-Fi mode, press and hold the WPS button on the front panel of JAS-725. You will hear the “Internet setup mode, follow the instructions in the app to finish the setup” voice prompt.
- Page 14 MIC indicator LED will change to red while the microphones are muted. In this mode, the speaker’s audio will still work normally. Music Player Screen This is the default screen when you open the JENSEN app. 1. Music Directory JAS-725_XXXX 2.
-
Page 15: Device List Screen
Device List Screen 1. Add Device/Refresh List Add more speakers or refresh the list of available devices. 2. Speaker Settings Rename a speaker, set preset stations, and find additional information on a speaker. 3. Audio Channel Press to set audio channels for the speaker: L / R / LR (left/right/stereo). -
Page 16: Internet Music Services
PAIRING (LINKING) A BLUETOOTH ENABLED CELL PHONE OR OTHER BLUETOOTH ENABLED DEVICE to the JAS-725 1. With the JAS-725 in power ON Mode, tap the SOURCE button to select Bluetooth mode. The Bluetooth Indicator LED lights and flashing. The JAS-725 is now ready to pair (link) with your Bluetooth device. -
Page 17: Line-In Operation
2. Select the JAS-725 from the devices list on your cell phone for linking. The Indicator LED stops flashing and remains lit if the JAS-725 and your cell phone have been re-linked successfully. 3. You can also re-link the JAS-725 by using Bluetooth operation of your cell phone. Please refer to operation manual of your cell phone for more information. -
Page 18: Care And Maintenance
EXTERNAL DEVICE LINE IN DC 5V RESETTING THE JAS-725 In case of malfunction due to electrostatic discharge, the apparatus has to be reset by disconnecting it from mains supply. Unplug the AC adaptor from main power, wait at least for 60 seconds before reconnect the AC adaptor power. -
Page 19: Troubleshooting Guide
Uninstall then reinstall the App, turn the not installed properly speaker power Off, and then On again. Restart the setup using the WPS button. The JAS-725 is not on same Wi-Fi Use the same WiFi network for speaker & network as your smartphone. your smartphone. -
Page 20: Specification
Amazon Terms & Polices The JAS-725 is an Alexa- enabled device. Before using this speaker, please read all rules and policies for Alexa, including the Amazon.com Privacy Notice at www.amazon.com/privacy and the terms found in the Alexa App in Help > legal & Compliance. These terms, notices, and policies are, collectively, the “Agreements”... - Page 21 2. This warranty does not cover damage or equipment failure caused by electrical wiring not in compliance with electrical codes or SPECTRA user manual specifications, or failure to provide reasonable care and necessary maintenance as outlined in the user manual. 3.
