Roland R-26 Quick Start Manual

Contents

•

Introduction

• Parts And Functions
• Precautions
• Power
• Formatting The Sd Card
• Recording Settings
A. Rec Mode
B. Rec Source
C. Sample Rate and Recording Format
D. Input Settings
i. Internal Mic Settings
ii. Analog In Settings
iii. Phantom Power
E. Recording Level and Mic Directionality
i. Internal Mic Mode
ii. Input Sensitivity and Input Level
111. Autbmatically Setting Input Level
F. Recording
• Playback
•
Connecting To The Computer
• Quick Start Guide
Introduction
The Roland R-26 is a portable audio recorder that gives a professional quality sound
and is capable to record up to six channels. It has two types of internal microphones,
X/Y directional and omnidirectional. There are 2 XLR/TRS combo inputs with 48V
phantom power for external mies, and a 3.5mm mic input for small stereo mies with
plug-in power. This recorder allows six different types of mic directionality options as
well as manual or automatic sensitivity inputs, and a peak feature to help you with
distortion and clipping. The R-26 is capable of dual recording, and can simultaneously
record-WAV and MP3 files. This intuitive recorder has a large, grey scale, backlit
touchscreen display for viewing input levels and selecting menu options, no squinting
required.

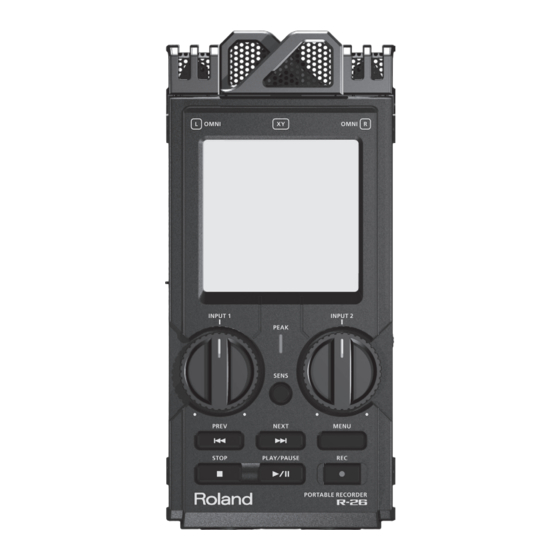

Roland R-26 Portable Recorder
