Introduction
Omni Antenna
The Omni Antenna (4214-M727) supports the following:
• Port 1
– 698-806 MHz (700 LTE)
– 1710-2170 MHz (AWS)
• Port 2
– 806-941 MHz (Cellular/SMR)
– 1850-1990 MHz (PCS)
• Port 3
– 2500-2700 MHz (WiMAX)

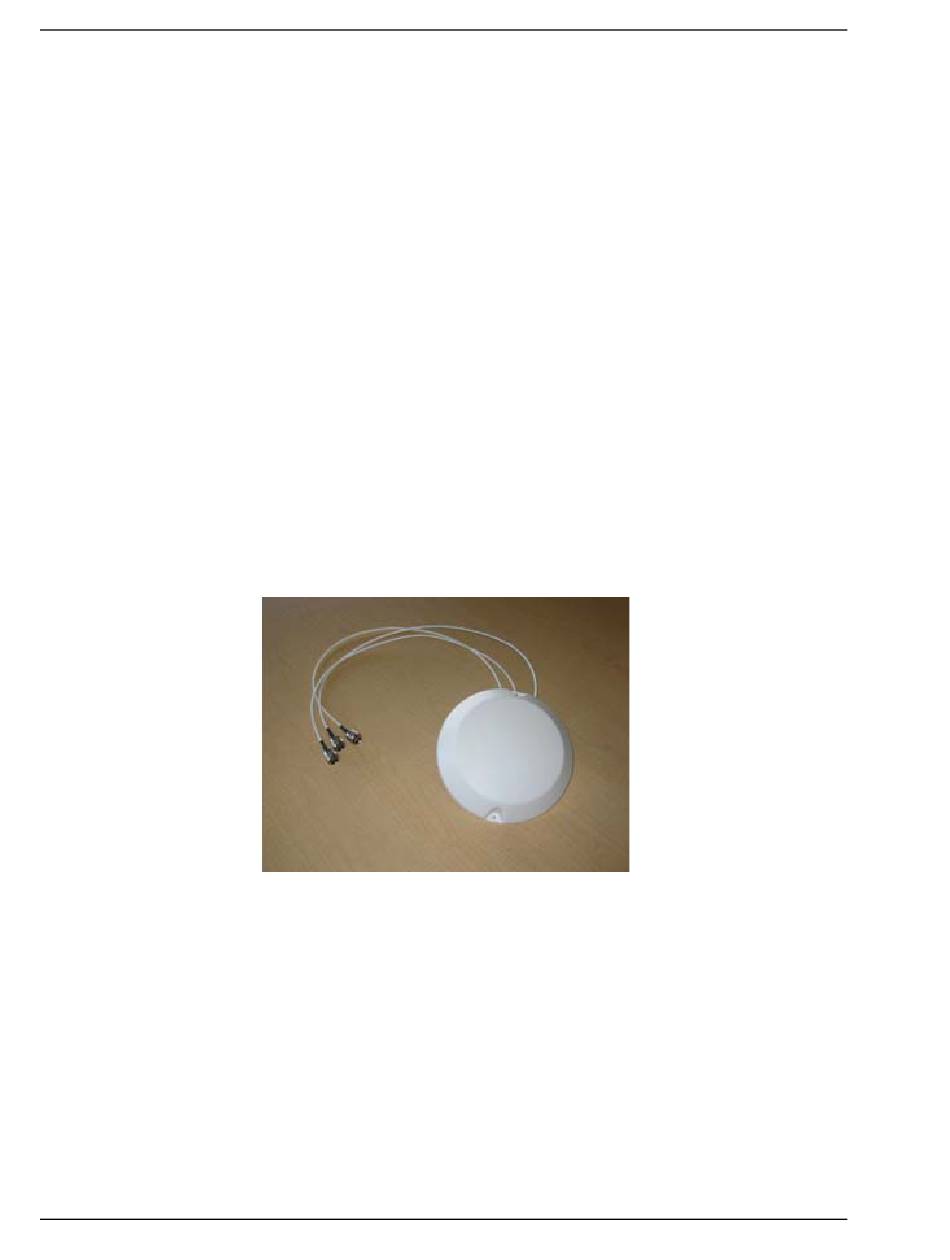

The Omni Antenna (see figure below) is a round radome with the following
specifications:
• 8.5-inch diameter
• 1.65-inch height
• 72-inch pigtails that are plenum-rated cables with N (male) connectors
NOTE:
Two antennas per RAU is required for MIMO performance.
Page 10
© 2009 ADC Telecommunications, Inc
FlexWave Prism Remote Unit Installation Guide
ADCP-77-072 • Issue 2 • 11/2009
