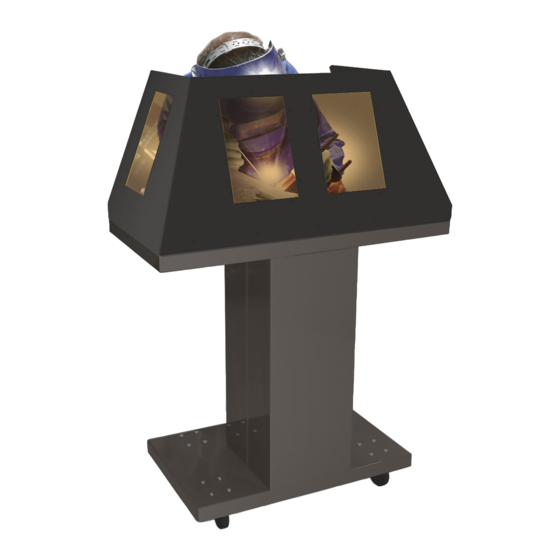

GYS WELDING BOOTH Assembly & Instruction Manual

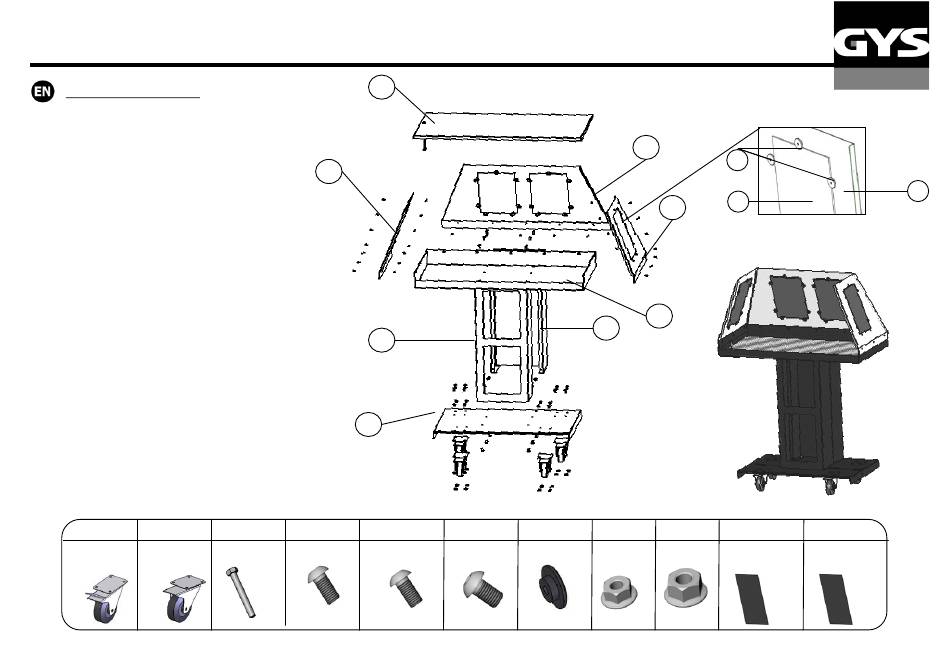

ASSEMBLY INSTRUCTION
▪ Totally unpack the product and check that no
parts are missing.
▪ Take the base (8) and fix 2 wheels with brake
(on the front) (a) using 8 screws (f) and 8 screw
nuts (i) then fix 2 wheels (b) using 8 screws (e)
and 8 screw nuts (f)
▪ Take the 2 halves of the column (5 and 6) and fix
them together using 4 screws (e) and 4 screw
nuts (i), then fix them to the base (8) using 6
screws (e)
▪ Take the plate (7) and fix it on the column using
6 screws (e).
▪ Fix a screw (c) and a screw nut (i) on the
punched working table (1) then position it on the
plate.
▪ Take the Flanks (4; 3; 2) and fix them on the
plate using the screws (d) and screw nuts (h).
▪ Take the glass panels (j) and fix them on the
front flank (2) using the supports (g) and screws
(d)
▪ Take the glass panels (k) and fix them on the
side flanks (3 and 4) using the support (g) and the
screws (d)
A B
d100 d100
X2 X2
WELDING BOOTH /CABINE DE SOUDURE /
CABINA DE SOLDADURA / СВАРОЧНЫЙ СТОЛ
1
4
5
8
C D E
M5 x 10 M8 x 16
M8 x 60
X1
X47 X16
6
F G H
Support
M5
M8 x 12
X28 X19
X16
2
g
k
3
7
I J
M8 N11
320x220
X2
X21
3
K
N11
320x200
X2
D6 - 03072015
