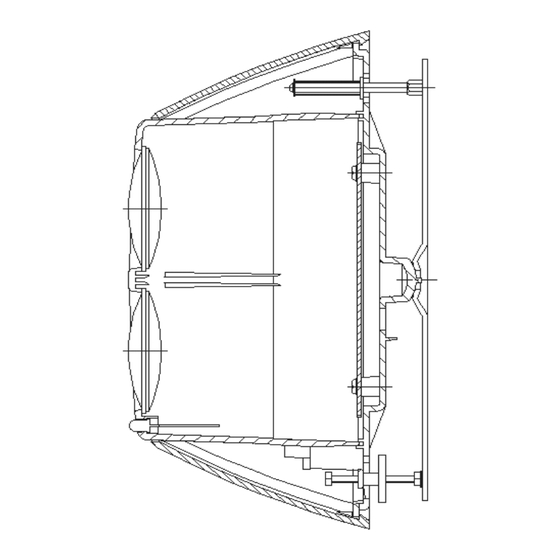

MAB50R & MAB100R

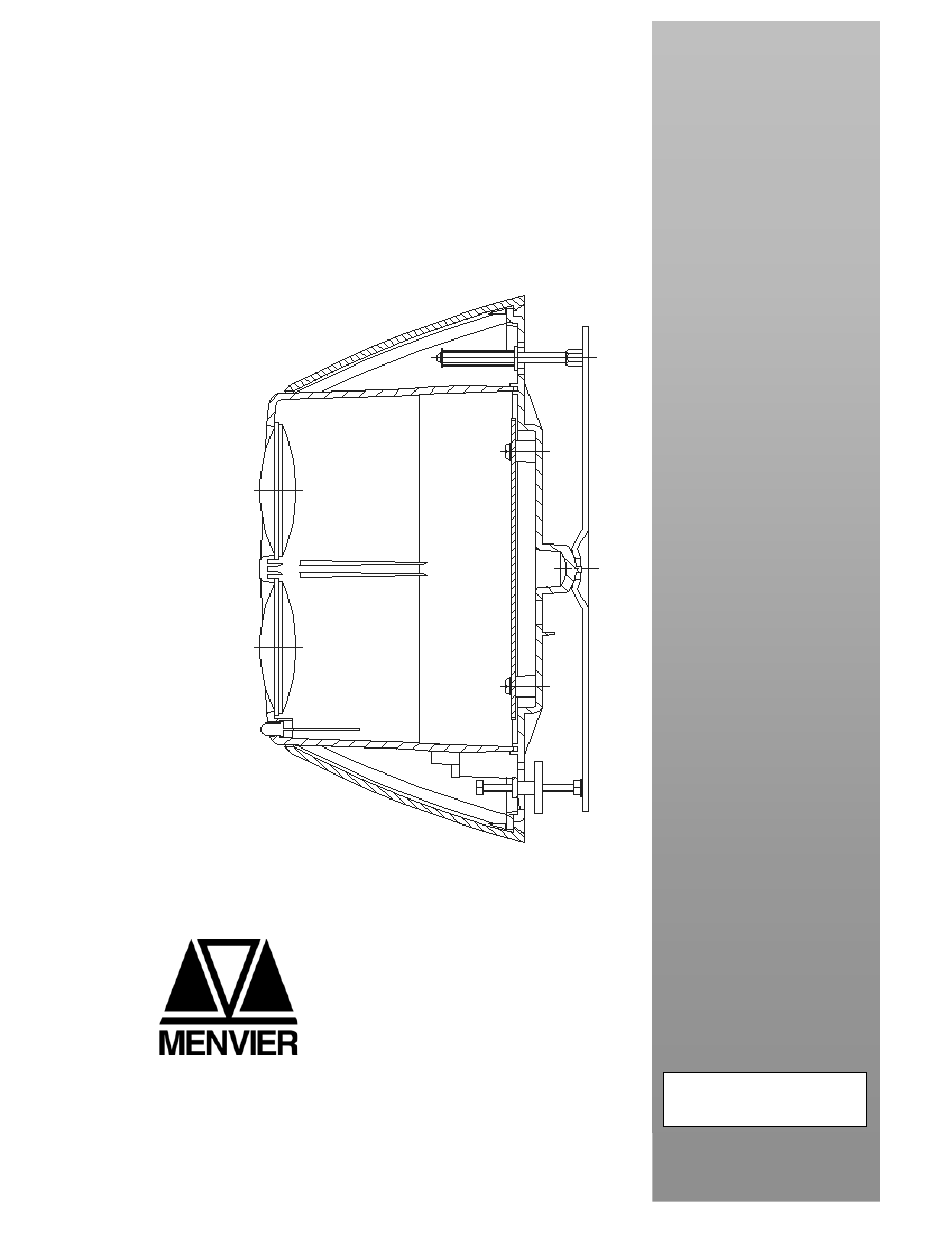

Reflective Beam Detectors
22318.37.01
15.09.05
www.acornfiresecurity.com
www.acornfiresecurity.com
FEATURES
•
Microprocessor
controlled
•
Range 5 – 50 Metres
•
Range 50 – 100 Metres
•
Unique simple alignment
•
Loop powered
•
Selectable alarm
thresholds
•
Low current
consumption
•
Automatic contamination
compensation
Addressable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAB50R and is the answer not in the manual?

Questions and answers

Summary of Contents for Menvier Security MAB50R

  • Page 1 MAB50R & MAB100R Reflective Beam Detectors FEATURES • Microprocessor controlled • Range 5 – 50 Metres • Range 50 – 100 Metres • Unique simple alignment • Loop powered • Selectable alarm thresholds • Low current consumption • Automatic contamination...

  • Page 2: Table Of Contents

    www.acornfiresecurity.com Installation Guide Index Section 1. System Description (page 2) 2. System Operation (page 2) 3. Detector Positioning (page 2 to 4) 4. Installation (page 4 & 5) 5. Prism Targeting (page 5) 6. Alignment (page 5 to 7) 7. System Testing (page 7) 8.

  • Page 3: System Operation

    0.7dB/Hour are corrected automatically. 3. Detector Positioning. It is important that the MAB50R / MAB100R detectors are positioned correctly to minimise the detection time. Experiments have shown that smoke from a fire does not rise directly upwards, but fans out or mushrooms due to air currents and heat layering effects.

  • Page 4: Detector Positioning

    www.acornfiresecurity.com Typical Minimum Beam Spacing Beam Distance Beam Spacing Beam Distance Beam Spacing 0.87m 5.25m 1.75m 6.12m 2.62m 7.00m 3.50m 7.87m 4.37m 8.75m In all installations the latest national fire standards must be consulted. If there is any doubt on the correct mounting height, positioning may be determined by smoke tests.

  • Page 5: Installation

    Due to the principle of the detector i.e. reflective, the prism must NOT be mounted on glass or a polished reflective surface. Mount the Prism on a solid structure, 90º to the beam path, between 5 to 50 metres (MAB50R), and 50 to100 metres (MAB50R) directly opposite the Detector.

  • Page 6: Prism Targeting

    Ensure that there is a clear line of sight to the Detector, taking care that no moving objects i.e. doors, mechanical lifting equipment etc, will interfere with the beam path between the Detector and Prism. Note: On ranges of ≥5 metres and ≤50 metres use a MAB50R. On ranges of >50 metres and ≤100 metres use a MAB100R.

  • Page 7: Alignment

    www.acornfiresecurity.com 6.3. Alignment Process Flow Diagram. After selecting alignment mode wait until both LED’s stop flashing Slowly adjust a thumbwheel in one direction and observe the LED’s Stop turning the Amber thumbwheel and flashing? wait for the Red LED to stop flashing.

  • Page 8: System Testing

    www.acornfiresecurity.com 6.4. Exiting Alignment Mode. Do not remove the detector from the wall during this action. Using the mode switch (See fig. 4) select Run Mode (Switch will be in the down position). On exiting alignment mode the Detector will perform an internal calibration check. If this fails, which would be due to bad alignment or either electrical or optical noise, the power level will try to compensate.

  • Page 9: Connection And Configuration Settings

    Access to the configuration settings is through the back plate of the Detector Head (See Fig 4). The 4-way DIP is used to select the beams sensitivity. 8.3. Typical Single Zone Wiring. MAB50R & MAB100R Connections Fire Panel Loop OUT...
  • Page 10 www.acornfiresecurity.com 9. Detector Interface Assembly Configuration Settings. Fig. 4. 22318.37.01 15.09.05 www.acornfiresecurity.com...

  • Page 11: Beam Clearance

    First 20 metres 1 metre diameter 0.5 metre diameter clearance down rest of beam path clearance Reflector(s) Beam 11. Technical Data. • Operating Range MAB50R 5 to 50 metres • Operating Range MAB100R 50 to 100 metres • Supply Voltage 18-30Vdc •...

  • Page 12: Parts List

    13. Parts List. • 1 off: Detector Head Assembly • 1 off: Prism for the MAB50R • 4 off: Prisms for the MAB100R • 1 off: Dual Test Filter •...
