SPECIFICATIONS:
RANGE
RESOLUTION
ACCURACY (@25°C)
ALARM
active when the measure is
lower than setpoint
OUTPUT POWER SOCKET
active when the measure is
lower than setpoint
ORP ELECTRODE
MA921B/2 (included)
ENVIRONMENT
0 to 50°C, 95% RH max.
POWER SUPPLY
12 VDC (included)
POWER DRIVERS
115VAC, 2A, 60Hz or 230VAC, 1A, 50Hz
DIMENSIONS
160 x 80 x 40 mm
WEIGHT
220 g (meter only)
OPTIONAL ACCESSORIES:
MA921B/2
ORP Electrode with BNC connector and 2m cable
M10000B
Electrode rinse solution, 20 mL sachet (25 pcs)
MA9015
Electrode storage solution, 220 mL bottle
MA950
Portable meter wall fixing kit
WARRANTY:
This instrument is warranted from all defects in materials and manufacturing for
a period of two years from the date of purchase.
The electrode is warranted for a period of 6 months.
If during this period, the repair or replacement of parts is required, where the
damage is not due to negligence or erroneous operation by the user, please return
the parts to either dealer or our office and the repair will be effected free of
charge.
Note:
We reserve the right to modify the design, construction and appearance
of our products without advance notice.
M ilw a ukee
SMS510
±1000 mV
1 mV
±5 mV
0 to 600 mV
M ilw au ke e

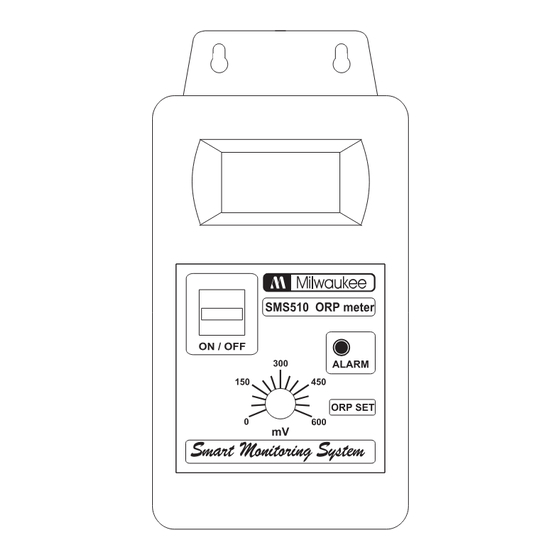

PORTABLE
ORP METER
SMS510
MODEL:
Smart Monitoring System
USER MANUAL
Advertisement
Table of Contents
Related Manuals for Milwaukee SMS510
Summary of Contents for Milwaukee SMS510
- Page 1 SPECIFICATIONS: M ilw a ukee M ilw au ke e USER MANUAL SMS510 RANGE ±1000 mV RESOLUTION 1 mV PORTABLE ACCURACY (@25°C) ±5 mV ORP METER SETPOINT 0 to 600 mV ALARM active when the measure is SMS510 MODEL: lower than setpoint...
- Page 2 • Connect the ORP electrode • The selectable range for to the BNC socket on the SMS510 is from 0 to 600 mV. bottom of the meter. • Always remove the electrode protective cap before taking any measurement.
