AXIS INDUSTRIES PUBLIC LIMITED LIABILITY COMPANY
The water meters conform to the Rules on Management of WEEE adopted pursuant to the Directive
2012/19/EU of the European Parliament and of the Council.
Meters marked with this label must not be disposed into the litter container together
with other waste materials!
It shall be delivered to the respective collection point, in order to allow processing of the
electrical and electronic equipment. By taking due disposal actions of this product you will
contribute to protection of the environment and human health against possible adverse impact,
which may be caused by inappropriate disposal.
Information on the operating electrical and electronic equipment collection points is available on the
website
www.epa.lt
or you can contact your municipality.
WATER METERS
QALCOMATIC FLOW C
QALCOMATIC FLOW H
Technical description
Installation and operation guide
IMPORTANT INFORMATION ON WASTE MANAGEMENT
PLMATICF01
Advertisement
Related Manuals for Axis Industries QALCOMATIC FLOW C
Summary of Contents for Axis Industries QALCOMATIC FLOW C
- Page 1 AXIS INDUSTRIES PUBLIC LIMITED LIABILITY COMPANY WATER METERS QALCOMATIC FLOW C QALCOMATIC FLOW H Technical description Installation and operation guide PLMATICF01 IMPORTANT INFORMATION ON WASTE MANAGEMENT The water meters conform to the Rules on Management of WEEE adopted pursuant to the Directive 2012/19/EU of the European Parliament and of the Council.
-
Page 2: Application And Description

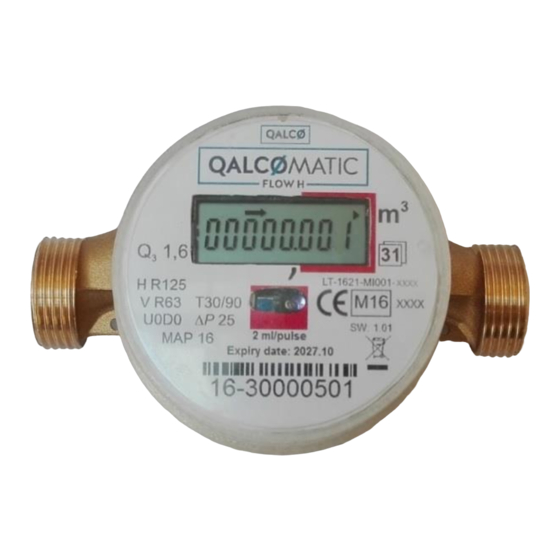

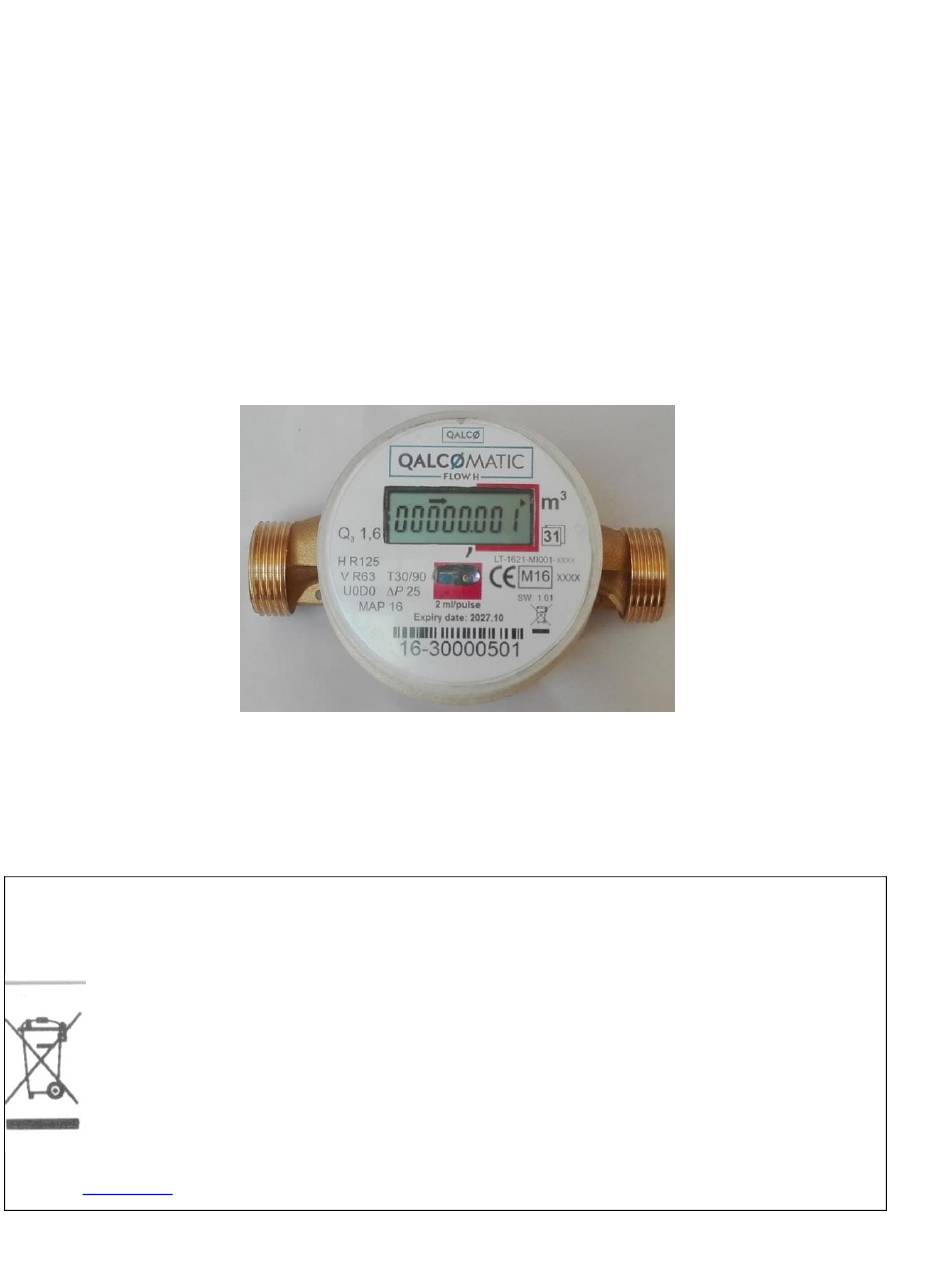

1. APPLICATION AND DESCRIPTION The electronic water meter with autonomous power supply, designed for metering of cold water (0.1 - 30) °C (QALCOMATIC FLOW C - marked in blue) and hot water (30 - 90) C (QALCOMATIC FLOW H - marked in red) flowing in pipelines used in apartments, single family houses or other premises of similar type. -
Page 3: Technical Specifications
G ¾“ , G 1“ Connection diameter G ¾“ : 80 mm, 110 mm; G 1“: 130 mm Connection length (0.1...30 °C) Temperature class QALCOMATIC FLOW C T30/90 (30...90 °C) Temperature class QALCOMATIC FLOW H Pressure class (maximum allowable pressure) - Page 4 L=130 mm - 0.62 kg Dimensions and connection measurements: Picture 2. Meter installation length 80 mm, Picture 3. Meter installation length 110 mm, connection thread G ¾ B“ connection thread G ¾ B“ Picture 3. Meter installation length 130 mm, connection thread G1B“ PLMATICF01 31/05/2016...
-
Page 5: Installation Procedure
The counter can be rotated at up to 360 degrees in respect of the frame. 4. KIT Quantity, units Water meter QALCOMATIC FLOW C or QALCOMATIC FLOW H Technical description. Installation and operation guide. Installation accessories, kit: connection nozzles (external thread ½, connection nut ¾ ) * Included in the kit according to special request of clients 5. - Page 6 Accumulated water volume Main parameters Segment test Reporting day of the last month Volume of water used before the reporting day of the last month Reporting day of the month before the last (5) Volume of water used before the reporting day of the month before the last Annual reporting date Volume of water used before...
- Page 7 indication window is displayed. 3) reporting day of the last month Indicator “1” and the last day of the reporting date (month, day) are displayed. When the results of the last reporting day data are inaccessible, the display shows “1 --.---.---“. 4) volume of water used before the reporting day of the last month The volume of water used before the last reporting day is displayed.
- Page 8 7.1. The manufacturer shall grant a 24-month warranty commencing from the start of operation of the meter, given the user complies with the operation and technical maintenance requirements. 7.2. Manufacturer's address: Axis Industries AB, Kulautuvos 45a, Kaunas LT-47190, Lithuania. Tel.: (+370-37) 360234, fax.: 360358. PLMATICF01...
