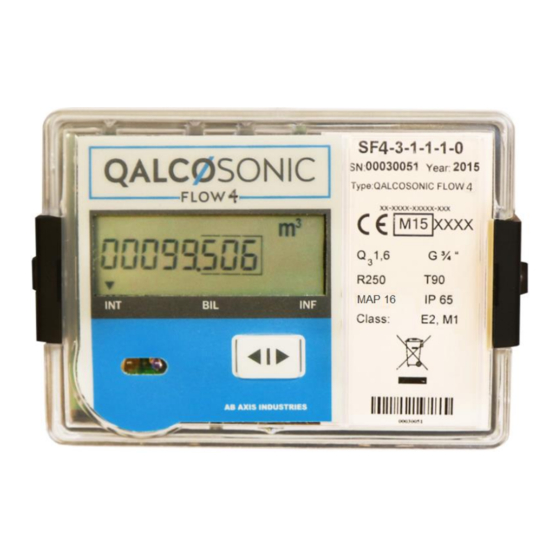

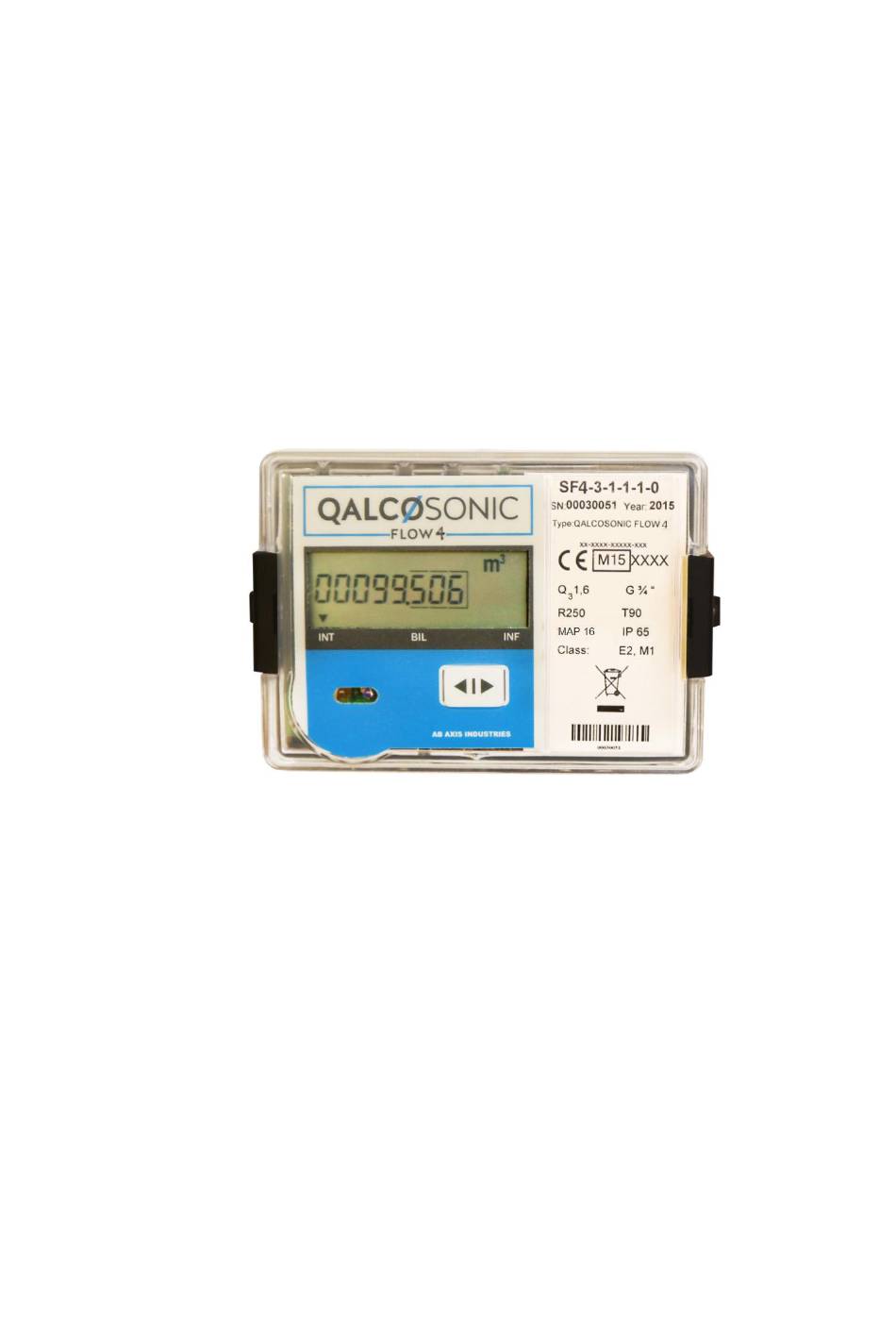

- Page 1 AKCINĖ BENDROVĖ “AXIS INDUSTRIES” ULTRASONIC WATER METER QALCOSONIC FLOW 4 TECHNICAL DESCRIPTION, INSTALLATION AND USER INSTRUCTIONS PESF4V01 KAUNAS...
-
Page 2: Table Of Contents
Annex A.Wiring diagram........................Annex B. Sizes and dimensions......................Annex C. Sealing diagrams and mounting recommendations............EC DECLARATION OF CONFORMITY AB „Axis Industries“ herewith declares, that this product complies with the relevant requirements of the following directives: - 2004/22/EC Measuring instruments Directive... -
Page 3: Safety Information
- relative humidity up to 98 %. 1. APPLICATION FIELD Ultrasonic water meter QALCOSONIC FLOW 4 is desighed for measurement of cold and hot water consumption in households and blocks of flats well as industry. The meter corresponds to essential requirements of the Technical Regulation requirements Annexes I and MI 001. - Page 4 Type number (order code) combination of the meter : SF4 – Meter QALCOSONIC FLOW 4 - - - - - Type Temperature class: Code T30/90 Connection type and overall length (L): Code G ¾ L =110mm G ¾ L =165mm...
-
Page 5: Technical Data
2. TECHNICAL DATA Permanent flow rate , flow rate ratio (R), overload flow rate , minimum flow rate transitional flow rate , threshold value in m /h , end connections type, overall length ( L) and pressure ΔP losses class are presented in 1.1 table. - Page 6 Reverse flow: allowed, displayed, but not measured Firmware version 0.07 Behavior of the meter, when the flow rate exceeds the maximum Q value Q ≤ 1,2Q linear The error „Maximum allowable value Q > 1,2Q limit 1,2Q of flow rate is exceeded“ is registered and duration of error is calculated.
- Page 7 Data logger capacity: up to 1480 h – for hourly records. up to 1130 days - for daily records, up to 36 last months - for monthly records, Archive data storage time not less than 36 months Storage time of measured integrated parameters even if device is disconnected from power supply not less than 15 years.
-
Page 8: Operation Principle
Dimensions of flow sensors According to Annex B Weight: End connections (overall length) Weight of meter, not more than, kg G3/4“ (110 mm) G3/4“ (165 mm) G1“ (130 mm) G1“ (190 mm) DN20 (190 mm) G1 ¼“ DN25 G2“ DN40 DN50 DN65 10,5... -
Page 9: Installation
4.2.Security seals The following water meter calculator sealing is provided: Manufacturer’s adhesive seal-sticker on the access to the adjustment activation jumper (see Annex C, Fig.C1, pos.1). Manufacturer’s adhesive seal-sticker on the fixer of the cover protecting electronic module (see Annex C, Fig.C1, pos.2). The following flow sensor sealing is provided: Manufacturer’s adhesive seal-sticker on the bolts of protective cover of flow sensor (see Annex C, Fig.C2a;b;c). - Page 10 5.3 Mounting 5.3.1. Mounting of calculator Water meter calculator may be installed in heated premises, working ambient temperature shall be not more than 65 ° C. It may not be exposed to direct sunlight. Calculator can be mounted in several different ways: - Direct mounting on ultrasonic flow sensor housing (turning every 90º): On the flow sensor with a thread connection On the flow sensor with flange connection...
- Page 11 5.3.2. Mounting of flow sensors Sizes and mounting dimensions of flow sensors are provided in Annex B. Requirements for flow sensor installation in pipeline: - For water meters with flow sensors DN65…DN100 necessary straight pipelines lengths are: upstream straight pipeline length must be not less 5DN and downstream straight pipeline length must be not less 3DN ( flow profile sensitivity class U5 D3) - For water meters of other sizes no requirements for straight pipeline length in upstream and downstream directions ( flow profile sensitivity class U0 D0)
-
Page 12: Operation
6. OPERATION 6.1. Control The information can be displayed using control button which is on the top of the calculator Control button 6.2. Display function The calculator of water meter is equipped with 8-digits LCD (Liquid Crystal Display) with special symbols to display parameters, measurement units and operation modes. - Page 13 Fig. 6.1. The menu structure. 6.3.1. Viewing the readings in normal mode (Users menu) Remark: Here the full list of shown parameters is represented. For the specific meter it can be reduced Parameter Value Description Error code with data stamp of All three displays, will be starting of error displayed in turns in one second...
- Page 14 Integrated quantity of consumed water Integrated quantity of consumed water 1 (input 1) Integrated quantity of consumed water 2 (input 2) Segment test Changes each 1 second Working hours without calculation error Customer number Corresponds to a wire transmission via MBus protocol Control number Volume of liquid on set day with Changes each 1 second...
- Page 15 Volume of liquid 2 on set day of The same as in p 2.6. previous month with date stamp Changing with date stamp every 1 second Maximum flow rate of previous Changing with date stamp every month with date stamp 1 second Maximum temperature of previous Changing with date stamp every...
- Page 16 3.7* Monthly set day 3.8* 1st pulse input/output configuration Input: Inputs/outputs: Can be configured for a quantity of water (m ) only. Maximum pulse resolution is displayed Output: 0.00001 m 3.9* 2nd pulse input/output configuration Similarly to 3.8, only „1“,changes in the „2“...
- Page 17 Viewing the readings in verification (test) mode ( Service menu): Parameter Value Description High-resolution integrated volume It is updated every second if the test mode is made active Number of pulses of 1st pulse input Number of pulses of 2nd pulse input Actuation of flow simulation During test, the value of flow is constantly displayed.
- Page 18 Active error codes are added and simultaneously displayed, if it is detected more than one error 3 - corresponds errors 2 + 1 5 - corresponds errors 4 + 1 7 - corresponds errors 4 + 2 + 1 9 - corresponds errors 8 + 1 A - corresponds errors 8 + 2 B - corresponds errors 8 + 2 + 1 C - corresponds errors 8 + 4...
-
Page 19: Verification
6.1 table Permanent flow rate Q Volume pulse value, l/pulse 0,002 0,004 0,005 6,3; 10 0,02 16; 25; 40 0,05 63; 100 Ending of verification mode Remove jumper J to leave test mode and return to normal mode. After leaving test mode, previously recorded integral parameter values are displayed. -
Page 20: Warranty
Warranty period - 12 months from bringing into operation, but not more than 18 months from manufacturing date. Manufacturer’s address: AB “Axis Industries ”, Kulautuvos g. 45a, Kaunas LT-47190, Lithuania tel. +370 37 360234; fax. +370 37 360358. PESF4V01 2015 09 08... -
Page 21: Annex A.wiring Diagram
Annex A Fig.A1. Electrical wiring diagrams V1-additional pulse input / output 1, V2 –additional pulse input / output 2, additional temperature sensor (if used) PESF4V01 2015 09 08... - Page 22 Annex A A2 fig. External power supply electrical wiring diagram A1 table. Numbering of terminals Terminal no: Description 2nd additionl pulse input/output GND 2nd additionl pulse input/output (In/Out2) (Volume output for TEST mode) 1st additionl pulse input/output GND 1st additionl pulse input/output (In/Out1) Terminal for temperature sensor (If temperature sensor is used) Terminal for temperature sensor (If temperature sensor is used) Terminal no:...
-
Page 23: Annex B. Sizes And Dimensions
ANNEX B B1. Mechanical dimensions of calculator B2. Sizes and dimensions of water meter QALCOSONIC FLOW 4 Fig.B2.1. Flow sensor Q = 1,6/2,5m B2.2. Flow sensor Q = 2,5/4m Fig. G3/4“ , G1“, Threaded end connections Threaded end connections mounting length L=110 mm. - Page 24 ANNEX B (continuous) Fig.B2.3. Flow sensor Q = 1,6/2,5/4/6,3 m /h; L =190 mm a) Tread G1“; b) Flange DN20 PESF4V01 2015 09 08...
- Page 25 ANNEX B (continuous) Fig.B2.4. Flow sensor Q = 6,3/10,0/ m L=260 mm a) Tread G1 1/4“; b) Flange DN25 PESF4V01 2015 09 08...
- Page 26 ANNEX B (continuous) Fig.B2.5. Flow sensor Q = 10,0/16 m L=300 mm G2“; b); c) a) Tread Flange: DN40 (two construction alternatives) PESF4V01 2015 09 08...
-
Page 27: Dn50
ANNEX B (continuous) Fig.B2.6. Flow sensor Q = 16,0/25,0 m /h; L Flange DN50 =270 mm; a) Dimensions of flow sensors DN50 (MAP16/MAP25), DN65 (MAP16) Brass housing PESF4V01 2015 09 08... -
Page 28: Dn65
DN65 (MAP25), DN80 (MAP16/MAP25), DN100 (MAP16/MAP25) Brass housing DN65 DN80 DN100 a) Dimensions of flow sensors DN65 (MAP16/MAP25), DN80 (MAP16/MAP25), DN100 (MAP16/MAP25) Steel housing Fig.B2.7. Flow sensors of the water meters QALCOSONIC FLOW 4 Flanged connections DN50, DN65, DN80, DN100 PESF4V01 2015 09 08... -
Page 29: Annex C. Sealing Diagrams And Mounting Recommendations
Sealing of flow sensor with end connections d) Sealing of flow sensor (steel housing) G2, DN40, DN50, DN65, DN80, DN100 with end connections DN65, DN80, DN100 Fig.C2. Sealing of the flow sensors of the water meter QALCOSONIC FLOW 4 PESF4V01 2015 09 08...
