QUICK SETUP GUIDE

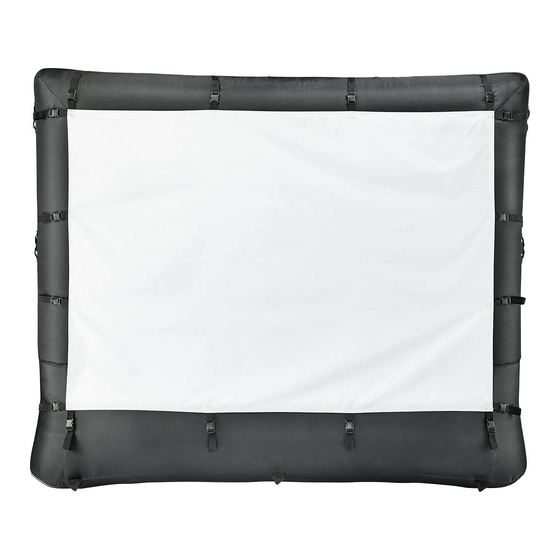

96" Outdoor
Inflatable
Screen
NS-SCR116
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS
• Projector screen • Tethers (4 long, 4 short)
• Inflatable frame • Pump stakes (2)
• Pump • Storage bag
• Tether stakes (14) • Quick Setup Guide
YOU'LL NEED
• Hammer
• Projector
• Sound system (Built-in projector speakers may not provide loud
enough audio outdoors.)
FEATURES
Frame
Screen
Tethers
Pump
Tether stakes
Pump stakes
SETTING UP YOUR SCREEN
Attaching the pump
1 Lay out the deflated frame on a flat surface that is clear of debris.
Make sure that the side with the clips faces up.
Note: Select a location where the pump is well-ventilated and the power cord
can reach a power outlet.
Intake tube
Top Bottom
2 Align the intake tube on the back of the frame with the mouth
of the inflator pump, then wrap the attached strap around the
mouth of the pump and attach tightly.
Attaching the screen
• Connect the clips along the edges and corners of the frame to
the screen.
Inflating the screen
1 Make sure that the air intake is clear of obstructions and that
the frame's zipper is closed completely.
2 Plug the pump's power cord into a power outlet to inflate the
frame.
Note: The pump must be left running while screen is in use.
3 Attach the four long tethers to the upper X-shaped straps on
each side of the frame (two on each side).
Top Bottom
Long tethers
4 Attach the four short tethers to the lower X-shaped straps on
each side of the frame (two on each side).
Top Bottom
Short tethers
5 Stand the inflatable screen upright, then insert the yellow
tether stakes through the tethers and into the ground. Make
sure that the tethers are taut.
Tether stakes
6 Insert the two orange pump stakes through the plastic legs of
the pump to secure the pump to the ground.
Pump stakes
