Insignia NS-SCR115 Quick Setup Manual

PACKAGE CONTENTS

• 75" Tripod Projector Screen
• Quick Setup Guide

FEATURES

• Durable, high-contrast material
• Easy to operate
Before using your new product, please read
these instructions to prevent any damage.

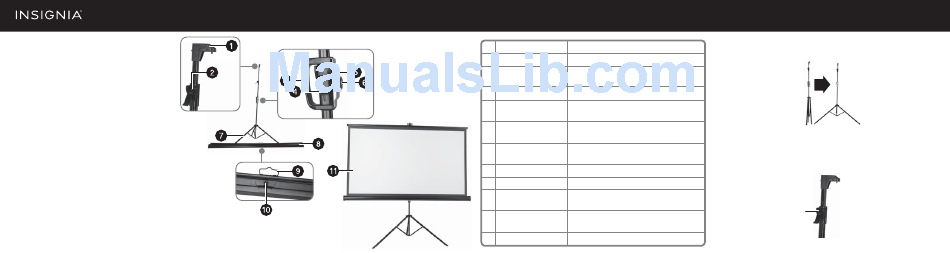

# ITEM DESCRIPTION
1 Screen hanger notch Provides a notch to hang the projector screen.
2 Flip-lever center column Locks or unlocks the first section of the tripod center
lock column.
3 Screen height handle Hold this handle to raise or lower the center column.
4 Flip-lever for the screen Locks or unlocks to slide up or down the screen height
height handle lock handle.
5 Positioning pin release Push this release lever to insert or release the
lever positioning pin in the positioning hole.
6 Positioning hole Attaches to the positioning pin on the back of the
projector screen.
7 Tripod leg Supports the tripod and projector screen.
8 Screen enclosure Enclosure for the screen when not in use.
9 Projector screen hanging Hang the projector screen using this bracket.
bracket
10 Positioning pin Position projector screen by inserting it into
positioning hole.
11 Projector screen Displays pictures from the projector.
Quick Setup Guide |
NS-SCR115
75" Tripod Projector Screen

USING YOUR TRIPOD PROJECTOR SCREEN

1 Open the three legs of the tripod and stand the tripod up.
2 Loosen the flip-lever center column lock, then raise the center column so
that the screen hanger notch is just below your eye-level (this position
makes it easier to attach the projector screen hanging bracket), then fasten
the flip-lever center column lock to secure the column in place.
Flip-lever center
column lock
