Summary of Contents for Vdwall DS4-8

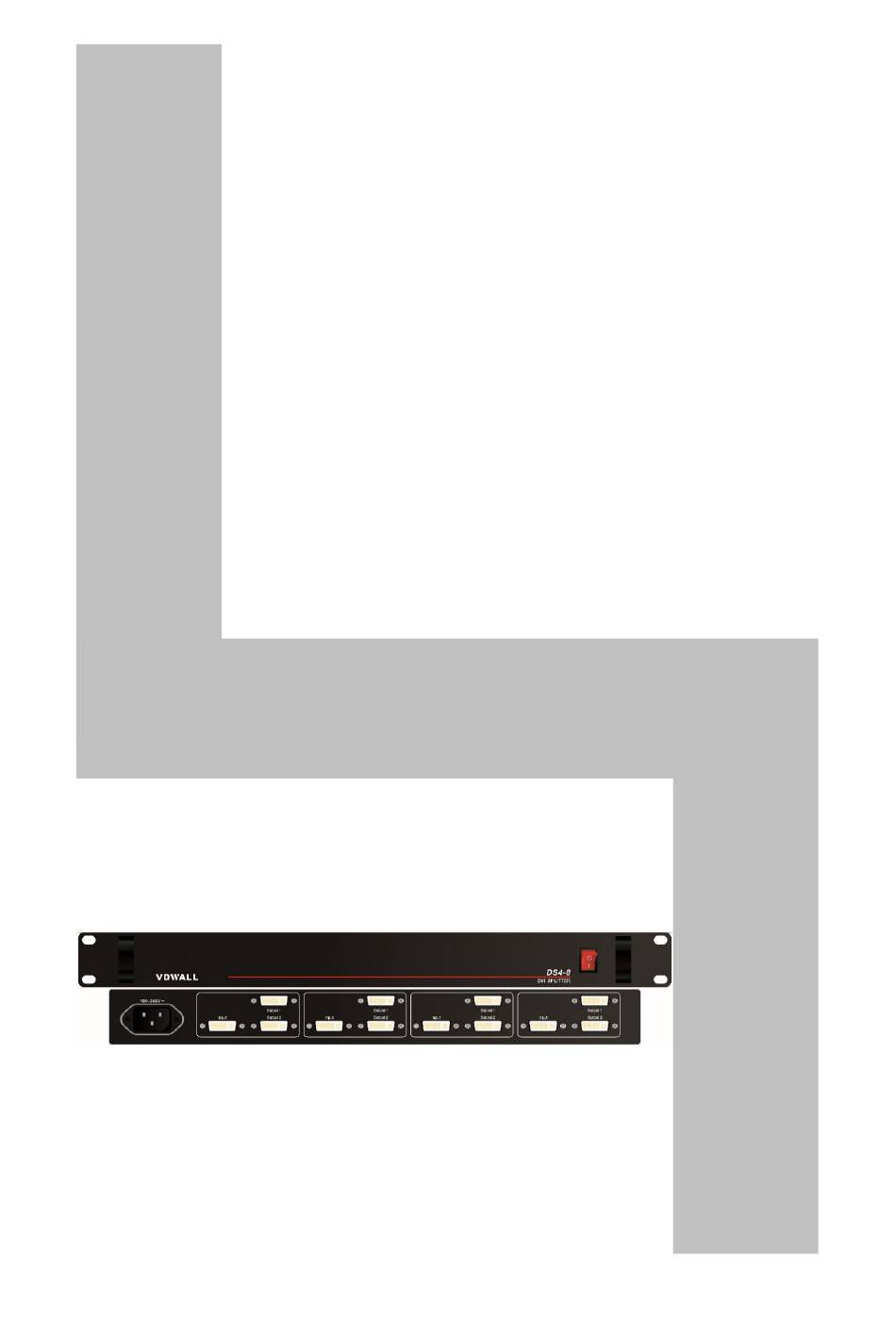

- Page 1 DS4-8 1 input 2 outputs DVI distributorx4 User Manual...
-
Page 2: Table Of Contents
DS4-8 user manual Contents Chapter1 Safety Precautions..........03 Chapter2 Item List..............04 Chapter3 Product Introduction...........05 Chapter4 Hardware Connections.........05 4-1 Rear panel buttons schematic.........05 4-2 Typical Application Connection Diagram....06 4-4 Specifications..........07 4-5 Product Dimensions...........08... -
Page 3: Chapter1 Safety Precautions
DS4-8 user manual Chapter1 Safety Precautions Danger There is high voltage in the device, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. Warning 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device. -
Page 4: Standard Accessories
DS4-8 user manual The device is dropped down or cabinet is damaged. Obvious malpractice is found or performance degrades. Chapter2 Item List Please unpack the product carefully, then check whether all the following things are included in the package. If anything is found missing, please contact the dealer. -
Page 5: Chapter3 Product Introduction
DVI signal for the dual transmitter card cascade. It is very suitable for using with VDWALL LVP8601, LVP909 and other mosaic devices. Each DVI input of DS4-8 includes DVI EDID which can be used for DVI signal distribution of graphic card. -
Page 6: Typical Application Connection Diagram
DS4-8 user manual Typical Application Connection Diagram Pic 4-2 Typical Application Connection Diagram... -
Page 7: Specifications
DS4-8 user manual 4-3 Specifications Inputs number / type 4×DVI（VESA） DVI format PC（VESA standard） Dot frequency＜165MHz Input connectors DVI：24+5 DVI_I Signal Amplitude TMDS= 0.5 V（p_p）/ 75Ω Impedance 640x480_60/72/75 1280x1024_60/75 800x600_60/72/75 1366x768_60 1024x768_60/70/75 1440x900_60 DVI EDID format 1152x870_75 1600x1200_60 1280x720_60 1680x1050_60... -
Page 8: Product Dimensions
DS4-8 user manual 4-4 Product Dimensions Pic 4-4 product dimensions...
