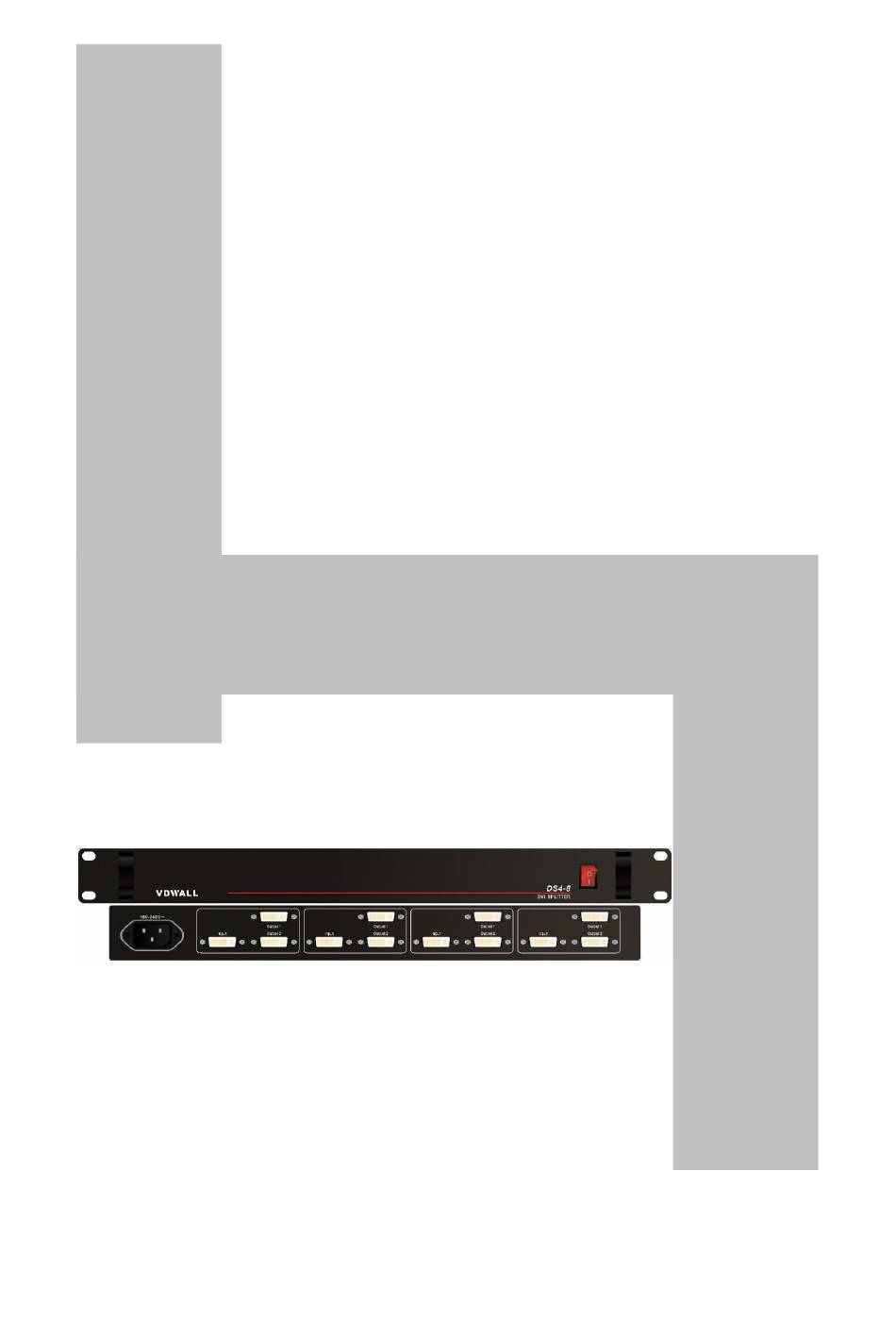

- Page 1 DS4-8 1 in 2 out DVI spliter x4 Profile...
-
Page 2: Product Introduction

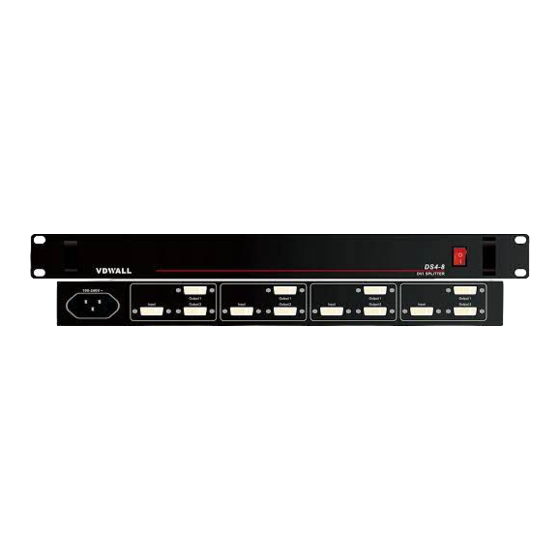

DS4-8 is a FHD DVI input split product, supporting any DVI input below 165 MHz. DS4-8 has 4 “1 in and 2 out” spliter, very suitable for working together with VDWALL splicers like LVP7000, LVP909 and etc to provide stable DVI signals to double sending cards cascading. -
Page 3: Typical Application Connection Diagram
4-2 Typical application connection diagram LED Screen 4-2 application connection diagram... -
Page 4: Specifications
4-3 Specifications Inputs Quantity / Type 4×DVI（VESA） DVI Format PC（VESA standard） ≤1920×1200_60Hz Input connectors DVI：24+5 DVI_I Signal TMDS= 0.5 V（p_p）/ 75Ω Amplitude/Impedance 640x480_60/72/75 1280x1024_60/75 800x600_60/72/751024x 1366x768_60 768_60/70/751152x870_ 1440x900_60 DVI EDID Format 1600x1200_60 1280x720_601280x800_ 1680x1050_60 1920x1080_50/60 1280x960_60 1920x1200_60 Outputs Quantity / Type 8×DVI DVI format PC（VESA standard）... -
Page 5: Product Dimension
4-4 Product dimension 4-3 product dimension...
