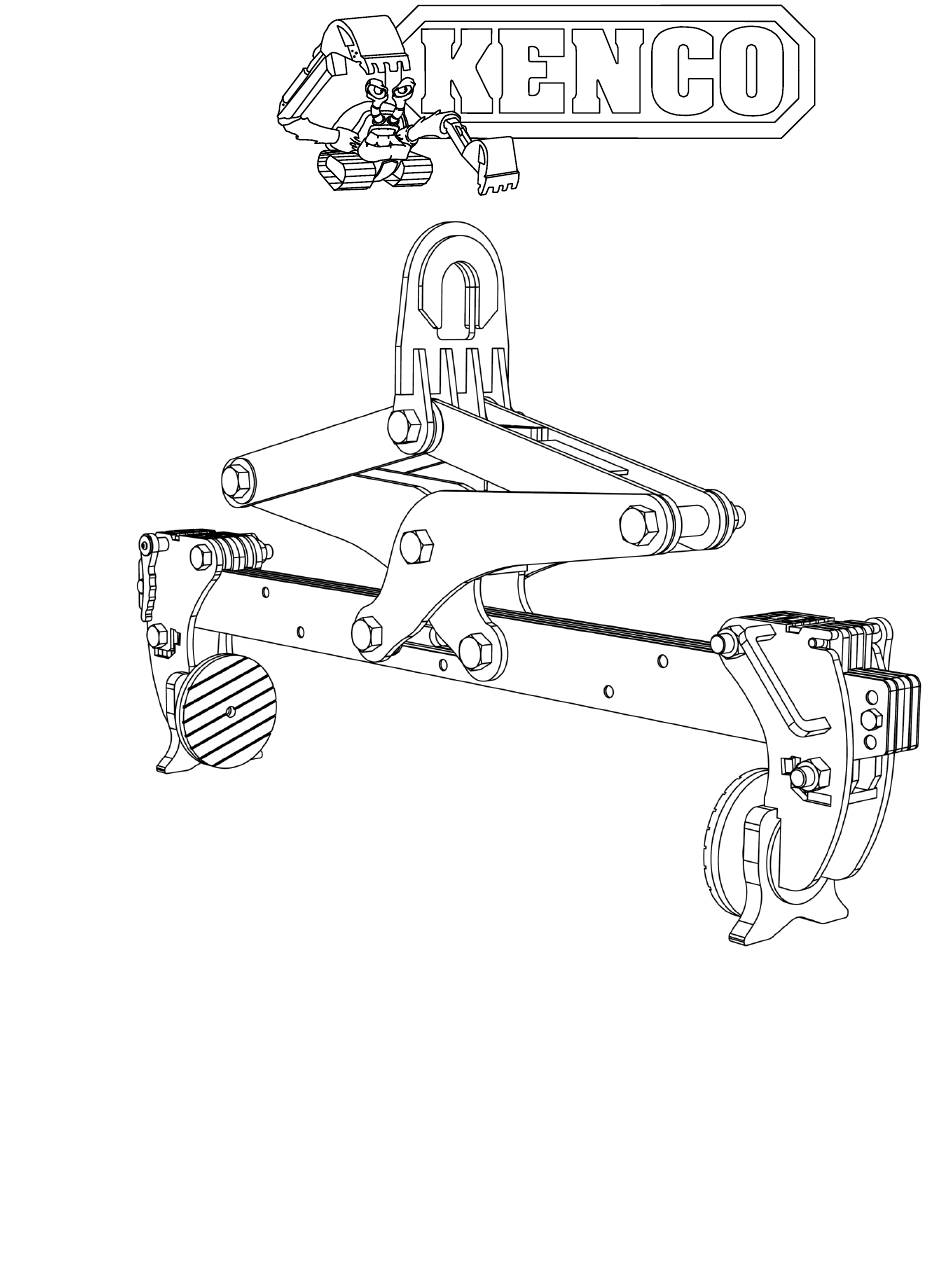

- Page 1 Attachment Solutions Multi-Lift System ® Operator’s Manual Conforms to ASME B 30.20, BTH-1 Design Category B, Service Class 3...
-
Page 2: Table Of Contents
Section X. Warranty.....................16 RECORD INFORMATION HERE FOR REFERENCE MODEL ATTACHMENT SERIAL NUMBER ATTACHMENT BODY SERIAL NUMBER ATTACHMENT ATTACHMENT SERIAL NUMBER ATTACHMENT ATTACHMENT SERIAL NUMBER ATTACHMENT ATTACHMENT SERIAL NUMBER ATTACHMENT ATTACHMENT SERIAL NUMBER SERIAL NUMBER ATTACHMENT ATTACHMENT KENCO Multilift® Operation Manual... -
Page 3: Section I. General Information
Safety practices described in this manual are intended as guidelines for safe operation under most conditions and are supplementary to any and all rules and/or laws governing any aspect of the KENCO Multilift® operation that are in force in your area. - Page 4 3. DO NOT USE A KENCO MULTILIFT® THAT HAS BEEN ALTERED ACCIDENTALLY OR INTENTIONALLY, IN ANY WAY WITHOUT INSPECTION BY QUALIFIED PERSONNEL. 4. DO NOT USE A KENCO MULTILIFT® FOR ANY TASK OTHER THAN THE INTENDED PURPOSE OF THE DESIGN. KENCO Multilift® Operation Manual...
- Page 5 3. AT NO TIME SHALL ANYTHING OTHER THAN THE HANDLES OF THE LIFTER BE USED TO CONTROL THE ALIGNMENT, LOADED OR UNLOADED, OF THE LIFTER. 4. USE ONLY THE HANDLES PROVIDED TO ADJUST THE LEGS OF THE LIFTER. KENCO Multilift® Operation Manual...
-
Page 6: Section Iii. Identification Of Major Components
170 State Route 271 Ligonier, PA 15658 1-800-653-6069 Section II. Identification of Major Components LIFT BAIL LIFT ARM GRIP HANDLE ADJ. HANDLE OUTER CORE(S) BALL PAD INNER CORE TOOTH BLOCK KENCO Multilift® Operation Manual... -
Page 7: Section Iv. Setup
Service personnel and operators must be fully conversant with the maintenance and operating procedures. A. Place Multilift® on object to be lifted to determine grip. 1. Pads should have a minimum of ½’’ and maximum of 3’’ clearance with object. KENCO Multilift® Operation Manual... - Page 8 3. Lift assembly can be positioned to either side of the leg assemblies to handle “L’’ shaped objects.* 4. Custom leg and pad configurations available (extended legs, hardened points, ball joint, etc).* 5. Custom core lengths available.* *Required additional hardware not included with standard unit. KENCO Multilift® Operation Manual...
-
Page 9: Section Vi. Opperation
KEEP ALL HANDS AWAY FROM MULTILIFT® DURING OPERATION. Surfaces of the load that come into contact with the gripping DANGER surfaces must be free of any foreign material or coating that could compromise the grip. KENCO Multilift® Operation Manual... - Page 10 Multilift® into open position to prolong actuator life.) 11. Remove Multilift® (Multilift® is latched in open position automatically). 12. Refer to Kenco.com for videos and tutorials on usage of the Multilift®. Tip: The majority of wear on the Multilift® will result from shock loading, impacting, and poor alignment of the Multilift®...
-
Page 11: Section Vii. Maintenance
(see ill.) e. Ensure pads are clean and free of any foreign material or substance. BACKING PLATE PAD MOUNTING CHANNEL OR ANGLE Min. 3/32’’ KENCO Multilift® Operation Manual... -
Page 12: Section Viii. Inspection Criteria
10% loss in cross-sectional area from the original member(s) can be demonstrated. Note: cross section of welds, “mushroomed” wear faces, and burrs are not accounted for as cross-sectional area. 3. Pins/Bolts a.Any visible deformation of a pin, shaft or bolt shall require replacement of that part. KENCO Multilift® Operation Manual... -
Page 13: Section Ix. Parts/Drawings
170 State Route 271 Ligonier, PA 15658 1-800-653-6069 Section IX. Parts/Drawings KENCO Multilift® Operation Manual... - Page 14 *Due to the modular nature of the ML series lifters the decals are listed on the next page and should be located in high visibility areas on the lifter. NOTE: MODEL AND SERIAL NUMBER OF LIFTER MUST ACCOMPANY PART ORDERS. KENCO Multilift® Operation Manual...
- Page 15 INSPECT LIFTER PRIOR TO EACH USE. WARNING Read and understand operator’s manual before using this equipment. Failure to follow operating and maintenance procedures could result in death or serious injury. DANGER DO NOT STAND UNDER OR NEAR WHILE MACHINE IS OPERATING KENCO Multilift® Operation Manual...
-
Page 16: Section X. Warranty
1. KENCO Corporation (KENCO) warrants the KENCO Pipe Lift™ lifting device (not including pads or consumable items) sold by KENCO to be free from proven defects in material and workmanship for a period of six (6) months from the delivery date to the original customer.
