Blue Seal SG 4 E2 Instructions For Use And Maintenance Manual

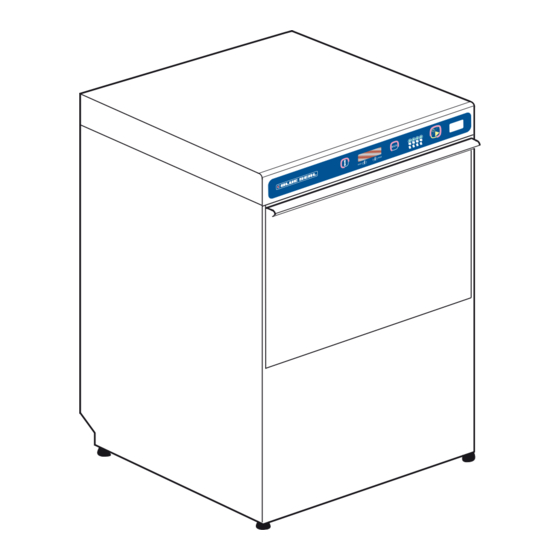

Dishwashing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instructions for use and maintenance
Ed. 03/2017
SG-SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG 4 E2 and is the answer not in the manual?

Questions and answers

Stella Kisob knowles
May 27, 2025

My dish washer is not draining.

0
1 comments:
Mr. Anderson
May 27, 2025

For a Blue Seal SG 4 E2 dishwasher that is not draining, follow these troubleshooting steps:

1. Detach and clean the drain hose (4 Fig. 6/7).
2. Clean the filter (15 Fig. 9).
3. Remove the overflow (14 Fig. 9).
4. Select the SELF-WASHING function on the display.
5. Touch the SCROLL key, then the START key to begin the cycle.
6. After self-washing, select the DRAIN function and press START.
7. Wait for the cycle to complete; the display will show OFF when done.

These steps help remove water and ensure proper drainage.

This answer is automatically generated

0
Nigel Ball
April 16, 2025

Quite often the machine wont drain

0
1 comments:
Mr. Anderson
May 8, 2025

The Blue Seal SG 4 E2 machine may often not drain because the drain operation requires specific steps that must be followed. For machines without a drain pump, the user must switch off the dishwasher, release the overflow, and extract and clean the tank filter. Failure to perform these steps correctly or regularly can prevent proper draining.

This answer is automatically generated

0
Steve Miinter
January 24, 2025

What colour tubes connect to the detergent and rinse aid - red or blue?

0

Subscribe to Our Youtube Channel

Related Manuals for Blue Seal SG 4 E2

Summary of Contents for Blue Seal SG 4 E2

  • Page 1 Instructions for use and maintenance Ed. 03/2017 SG-SD...
  • Page 4 This page intentionally left blank...
  • Page 5 DISHWASHING MACHINE mod. SG 4 E2 SG 45 E2 SG 5 EC2 SD 5 EC2 SD 5 EC BT2 The illustrations concerning these instructions are on the inside of the back cover 900891...
  • Page 6 EN.................... INFORMATION FOR USERS In accordance with the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) The “crossed out wheeled bin” symbol on the dishwasher serial number plate indicates that at the end of its useful life the product must be collected separately from other waste.
  • Page 7 Become thoroughly familiar with the contents of this manual before installing, setting up, adjusting and servicing dishwasher machine mod. SG-SD EC2. Only contact an authorized technical center or BLUE SEAL in the event of breakdowns or faulty machine operation. The manufacturer reserves the right to modify the products whenever necessary, without affecting their main features.
  • Page 8 INDEX RAEE..............pag. 4 Important............. pag. 5 Overall dimensions..........pag. 8 Technical data ............ pag. Description of the controls.........pag. 10 ENGLISH...............pag.
  • Page 9 Left space white intentionally...
  • Page 10 OVERALL DIMENSIONS Model (mm) (mm) (mm) (mm) (mm) SG 4 E2 SG 45 E2 SG 5 EC2 1005 SD 5 EC2 1005 SD 5 EC BT2 1005...

  • Page 11: Technical Data

    TECHNICAL DATA SG 4 E2 30/20/15/7 230V ~ 50Hz 2,66kW 2,4kW 0,26kW SG 45 E2 30/20/15/7 230V ~ 50Hz 3,78kW 3,3kW 0,45kW SG 5 EC2 30/20/15/7 230V ~ 50Hz 3,78kW 3,3kW 0,45kW SD 5 EC2 30/20/15/7 230V ~ 50Hz 3,78kW...
  • Page 12 CONTROL PANEL Fig. 1 Power (ON/OFF) Start selected cycle Scroll/Selection Key Back Key Display...
  • Page 13 Left space white intentionally...
  • Page 14 ENGLISH Part 1: General description and safety device Part 2: For the Operator Part 3: For Authorized and Qualified Technicians ENGLISH...
  • Page 15 Traslation from the original instructions ENGLISH SPECIAL WARNINGS FOR THE OPERATOR PAY THE UTMOST ATTENTION TO THE RATING PLATES ON THE MACHINE WHENEVER OPERATING ON IT OR ITS - Before commissioning the machine, the operator must have VICINITY. carefully read this publication and acquired an in depth knowledge of the technical specifications and of the machine controls.
  • Page 16 ENGLISH Part 1: Use and safety instructions 1.1 GENERAL DESCRIPTION 1.5 UNPACKING (Figg. 2-3-4) Single stainless steel wall construction. Counterbalanced To remove the machine from the packaging, proceed as double wall moulded door. Moulded tank bottom with follows: multiple filtering (collection filter and micro-filter). Incor- 1.
  • Page 17 ENGLISH Part 2: Reserved for Operator WASH OPERATIONS WASH PHASES Dispensing of detergent and rinse agent is managed 2.1.a Switching on and Preparing machine (Fig. 1) both in the regulation phase and in the restore phase. The amount of detergent/rinse agent is found To switch the machine on, keep by an authorised technician during installation and the START (ON/OFF) key pres-...
  • Page 18 ENGLISH Part 2: Reserved for Operator 2.1.c STARTING WASH CYCLE 2.1.d Interruption of the cycle The wash cycle can be interrupted temporarily in two ways IMPORTANT The selection of starting MANUAL or AUTOMATIC cycle must be made by an authorised technician. 1) by opening the door acting STARTING AUTOMATIC WASH CYCLE as EMERGENCY.
  • Page 19 ENGLISH Part 2: Reserved for Operator 2.1.f SELF-WASHING (and DRAIN) MANUAL DRAIN CYCLE A SELF-WASHING (and DRAIN) cycle can be carried out 2.1.e.2 Draining water from tank for machines with drain at the end of the day pump IMPORTANT The tank can be emptied by starting the manual drain The cycle can only be carried out by leaving the machi- cycle during which only the drain pump keeps running.
  • Page 20 ENGLISH Part 2: Reserved for Operator 2.1.h Switching off the machine at the end of the day At the end of the work day, switch off the machine by pressing the START key. OFF appears on the display. Disconnect the main switch upstream of the machine and close the water supply valves.
  • Page 21 ENGLISH Part 2: Reserved for Operator 2.2. CLEANING (Fig. 9) 2.3. PREVENTIVE MAINTENANCE (Fig. 9) 2.2. a Overview Preventive maintenance operations to be carried out with Strict observance of the maintenance rules in this section the machine OFF, the main switch disconnected, the water guarantees good preservation and satisfactory operation supply valve closed and the wash tank empty..
  • Page 22 ENGLISH Part 2: Reserved for Operator 2.4. DESCALING In the presence of hard water, limestone deposits are formed inside the machine and on the dishes which, for hygienic and operational purposes, must be removed by descaling. The operating procedures and their frequency are usually recommended by the supplier of the descaler who has ap- propriate products.
  • Page 23 ENGLISH Part 2: Reserved for Operator 2.8 REGENERATION CYCLE SG4E2 ATTENTION Resin regeneration is only possible with the door f the above operation is not performed, at the end of the CLOSED and the tank EMPTY. time initially set for the drain phase, the VASPIE alarm, i.e.
  • Page 24 ENGLISH Part 2: Reserved for Operator 2.9 REGENERATION CYCLE 2.9.c MANUAL REGENERATION OPERATIONS (at the user’s discretion) SG45EC2-SG5EC2-SD5EC2-SD5ECBT2 With the machine ON, perform the following operations: Resin regeneration is only possible with the door CLOSED and the tank EMPTY Touch the SCROLL key 2.9.a FILLING THE SALT TANK IMPORTANT The tank is to be filled when alarm F4 appears on...
  • Page 25 ENGLISH Part 2: Reserved for Operator SUMMARISED TABLE OF DISPLAYED ALARMS WARNING ALARM DESCRIPTION CYCLE NOT COMPLETED ANOMALOUS OVERHEATING TEMPERATURE PROBE DISCONNECTED FILLING TIMEOUT (RCD) BOILER HEATING TIMEOUT WATER DRAINING TIMEOUT REGENERATION INSUFFICIENT RINSE WATER TEMPERATURE WATER MISSING INSUFFICIENT WASH WATER TEMPERATURE...
  • Page 26 Part 2: Reserved for Operator ENGLISH SUMMARISED TABLE OF DISPLAYED WARNINGS WARNING STATUS DESCRIPTION DOOR OPEN WATER FILLING in TANK...
  • Page 27 ENGLISH Part 2: Reserved for Operator SUMMARISED TABLE OF START KEY WARNINGS MACHINE STATUS START KEY COLOUR Machine OFF none Machine ON in REGULATION phase BLUE (steady) CYCLE in PROGRESS TANK WATER LEVEL GREEN (flashing) reached BOILER and TANK WATER TEMPERATURE GREEN (steady) reached...

  • Page 28: Troubleshooting

    ENGLISH Part 2: Reserved for Operator TROUBLESHOOTING FAULT CAUSE SOLUTION The machine does not switch on. Main switch disconnected. Connect switch. Water does not fill Water valve closed. Open the valve. Drain hose filter dirty. Detach the drain hose (4 Fig.6/7) and clean the filter. Un- Rinse nozzles clogged.
  • Page 29 ENGLISH PART RESERVED FOR AUTHORISED AND QUALIFIED TECHNICIAN...
  • Page 30 ENGLISH Part 3: Reserved for technician 3.1.c Electric connection (Fig. 5) IMPORTANT Any installation, electric or hydraulic connection, PERICOLO programming, maintenance operation etc. must be - Before performing the electrical connection, make carried out by SUITABLE qualified personnel authori sure that the data on the power line correspond to sed by the manufacturer;...
  • Page 31 ENGLISH Part 3: Reserved for technician DISPLAYED ALARMS and WARNINGS: SELF-DIAGNOSTICS BOILER HEATING TIMEOUT If an ALARM or WARNING condition occurs, the relative code will be displayed. This alarm is displayed if the boiler is not heated within 30 minutes. The START key turns RED until The alarm can be reset by pressing the START key normal conditions are restored...
  • Page 32 ENGLISH Part 3: Reserved for technician PERISTALTIC DETERGENT/RINSE CORRECT TANK FILTER POSITION This warning is displayed when the filter is not fixed AGENT DISPENSER PUMP (Fig.8) properly in place. The machine is equipped with an automatic detergent and rinse agent dispenser pump. Dispensing of detergent and rinse agent is managed both during the regulation and restoration phases.
  • Page 33 Left space white intentionally...
  • Page 34 Fig. 2 Fig. 3 Made In Italy Birmingham 0121-3275575 Mod. kW max. Pressione dinamica alimentazione idraulica Calda / Fredda 200 kPa (2 bar) Pression dynamique arriveè d'eau Chaude / Froid 55° / 12° C Dynamic pressure water supply Warm / Cold 400 kPa (4 bar) Dynamischer Druck Wassereinlauf Warm / Kald...
  • Page 35 Fig. 8 Fig. 9...
  • Page 36 ELECTRICAL DIAGRAM...
  • Page 40 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO SCHEDA COMANDI FICHE COMMANDES CONTROL CONSOLE TASTATURPLATINE FICHA DE MANDOS SCHEDA POTENZA FICHE PUISSANCE PRINTED CIRCUIT BOARD HAUPTPLATINE FICHA DE POTENCIA TIMER ELETTRONICO...
  • Page 41 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO RESISTENZA VASCA RESISTANCE CUVE TANK HEATER TANKHEIZKÖRPER RESISTENCIA CUBA FUSIBILE DI LINEA FUSIBLE DE LIGNE MAIN FUSE HAUPT SCHMELTZSICHERUNG FUSIBLE DE LINEA...
  • Page 42 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO H7a LAMPADA SPIA AVVIAMENTO MANUALE LAMPE TEMOIN DEMARRAGE MANUEL MANUAL START INDICATOR LAMP KONTROLLAMPE MANUELLER START LUZ PILOTO INICIO CICLO MANUAL LAMPADA SPIA ALZO/ABBASSO CAPOT LAMPE TEMOIN DE MONT.ET DESC.CAPOT...
  • Page 43 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO KM2 TELERUTTORE POMPA RISCIACQUO CONTACTEUR SURPRESSEUR RINÇAGE RINSE PUMP CONTACTOR SCHALTSCHUTZ FÜR NACHSPÜLPUMPE CONTACTOR BOMBA ACLARADO KM3 TELERUTTORE POMPA LAVAGGIO CONTACTEUR POMPE LAVAGE KM3aWASH PUMP CONTACTOR...
  • Page 44 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO POMPA SALITA CAPOT POMPE OUVERTURE CAPOTE LIFT HOOD PUMP PUMPE FÜR HAUBENÖFFNUNG BOMBA APERTURA CAMPANA M12 ASPIRATORE R.C VENTILATEUR RECUPERATEUR/CONDNSEUR HEAT RECOVERY FUN...
  • Page 45 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO REGULACION TIEMPO ACLARADO REGOLAZIONE TEMPO DI SCARICO REGLAGE TEMP VIDANGE DRAIN SET TIME REGULATOR EINSTELLUNG ABLAUFZEIT REGULACION TIEMPO DESAGUE R12 REGOLAZIONE TEMPO DI PRERISCIACQUO REGLAGE TEMP PRE RINÇAGE...
  • Page 46 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO PULSANTE SELEZIONE CICLO BOUTON SELECTEUR CYCLE CYCLE SELECT PUSH BUTTON ZYKLUSWÄHLER PULSADOR SELECTIVO CICLO S11 GALLEGGIANTE A REED LIVELLO MINIMO BREAK TANK FLOTTEUR A REED NIVEAU MINIMUM BREAK TANK BREAK TANK MINIMUM LEVEL FLOAT REED SCHWIMMER MIKROSCHALTER FÜR MINDESTWASSERSTAND B.T.
  • Page 47 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO Y1s ELETTROVALVOLA ACQUASTOP ELECTROVANNE ACQUASTOP WATER STOP SOLENOID VALVE MAGNETVENTIL FÜR WATER STOP ELECTROVALVULA ACQUASTOP ELETTROVALVOLA CARICO VASCA/RISCIACQUO ELECTROVANNE POUR CHARG.CUVE/RINÇAGE TANK FILL/RINSE SOLENOID VALVE...
  • Page 48 LEGENDA SCHEMI MACCHINE A CICLO COMPONENT LEGEND FOR UNDERCOUNTER MACHINES LgBFCG LEGENDA SCHEMA MACHINES A CYCLE LEGENDE SCHEMA FÜR PROGRAMM-AUTOMATEN LEGENDA ESQUEMAS MAQUINAS A CICLO CONTENITORE BRILLANTANTE BAC PRODUIT DE RINÇAGE RINSE AID CONTAINER GLANZMITTELBEHÄLTER DEPOSITO DE ABRILLANTADOR 2Ca CONTENITORE SANITIZZANTE BAC DESENFECTANT SANITIZER CONTAINER SANITISIERUNGSBEHÄLTER...
  • Page 51 Left space white intentionally...

This manual is also suitable for:

Sg 45 e2Sg 5 ec2Sd 5 ec2Sd 5 ec bt2
