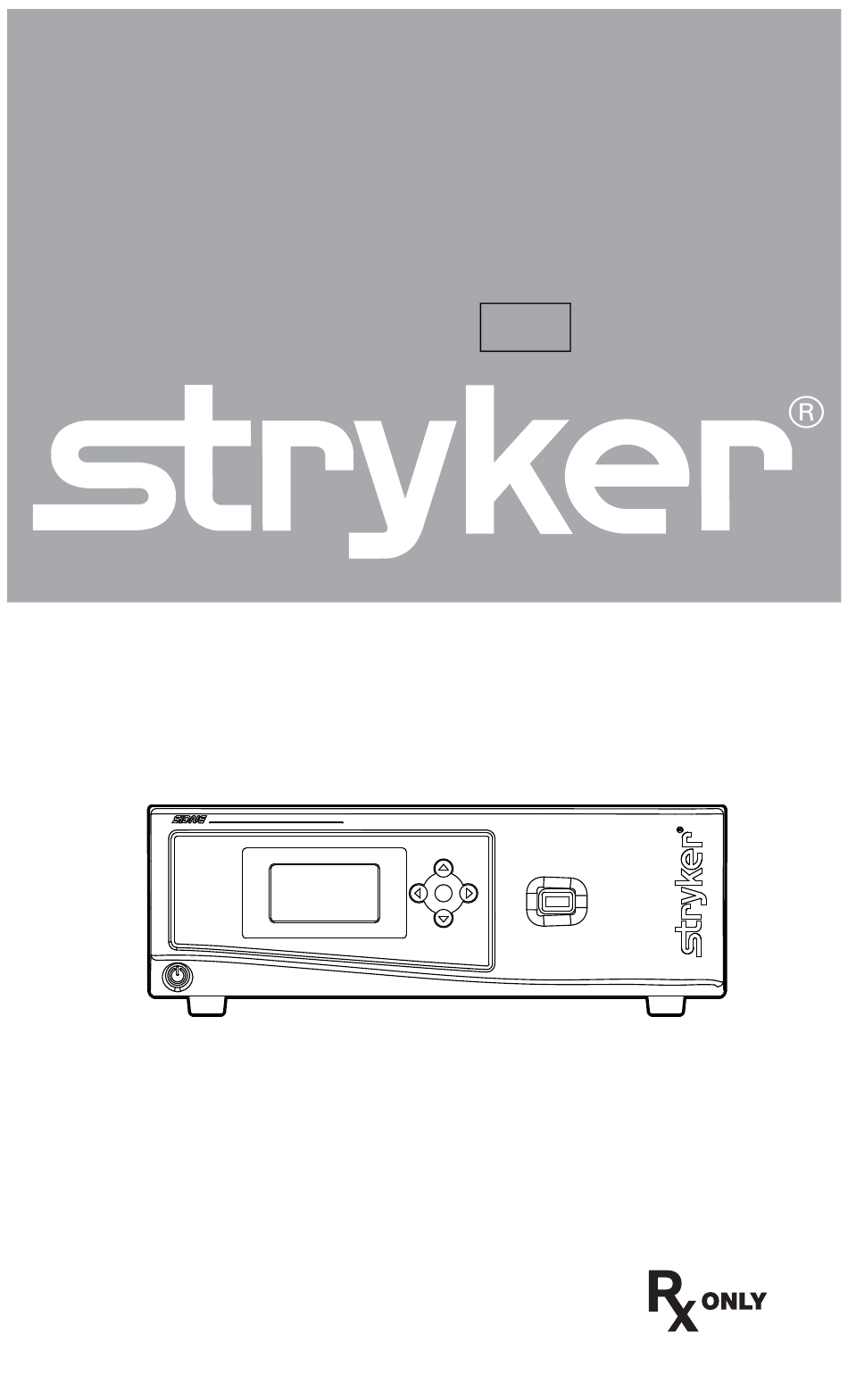

- Page 1 ® SIDNE Berchtold ® ChromoVision Overhead Camera REF 240-020-839 User Guide...
-
Page 3: Table Of Contents
SIDNE Berchtold ® ® ChromoVision ® Overhead Camera User Guide Contents Warnings and Cautions ........EN Product Description ..........EN Intended Use ................EN-4 Package Contents ..............EN-4 Setup and Interconnection .......EN Quick Startup Guide ..............EN-5 Connecting SIDNE to the Berchtold ChromoVision Camera ..EN-5 Mounting the EDAM .............. -
Page 5: Warnings And Cautions
Warnings and Cautions Please read this manual and follow its instructions carefully. The words warning, caution, and note carry special meanings and should be carefully reviewed: Warning The personal safety of the patient or physician may be involved. Disregarding this information could result in injury to the patient or user. - Page 6 Before and after each use, inspect the cord insulation for cracks, nicks, cuts, dents, or depressions. Any irregularity will decrease the insulation effectiveness and may result in shocks to the patient and/or operating room personnel. Ensure that the SIDNE® Berchtold® ChromoVision Overhead Camera EDAM (hereafter referred to as "EDAM") is securely mounted to the Berchtold Camera control box or cart as damage may occur.
-
Page 7: Product Description
Product Description/Intended Use The SIDNE® Berchtold® ChromoVision Camera system is a hardware/software interface between the SIDNE® voice-activation system and the Berchtold® ChromoVision Camera system. This enables the physician to have voice-activated or touch-screen control of the Berchtold® Camera system. The SIDNE® Berchtold® Camera Driver 1.0 upgrade allows the SIDNE® console to communicate with the Berchtold®... -
Page 8: Setup And Interconnection
Setup and Interconnection Quick Startup Guide This section outlines the startup instructions for experienced users. Refer to the relevant section(s) of this manual for further details. Power off the Berchtold® Camera and SIDNE®. Connect the Berchtold Camera to SIDNE. • Connect the device adapter cable to the Berchtold ChromoVision® Camera. - Page 9 Connect the device adapter cable to the serial port of the Berchtold® ChromoVision Camera (see below). Connect the female end of the of the device adapter cable to the nine-pin connector on the EDAM (see below). Connect the SIDNE® interface cable to the USB connector on the EDAM (see below).
-
Page 10: Mounting The Edam
Mounting the EDAM Stryker recommends securing the EDAM in a secure location on a cart. Remove the velcro strips from the kit. Carefully peel the protective paper backing covering the adhesive side of the velcro strips. Attach one velcro strip to the underside (side without label) of the EDAM and the other velcro strip to the desired location. - Page 11 Note After installation, the driver dongle will work only with the system to which it has been installed. It can be reinstalled on that system, but it will not work with other systems. Caution To avoid equipment damage, please do not remove the dongle card before SIDNE®...
-
Page 12: System Operation
System Operation The tablet touchscreen commands for the Berchtold® ChromoVision Camera are displayed in the image below and described in the following table. For more information on how to operate the SIDNE® Tablet, refer to the SIDNE Operating and Maintenance Manual (P/N 1000400988). Device Control Selection Description... - Page 13 Device Control Selection Description Level Selection SIDNE® Ovrhd White Balance Initiate White Balance Camera Zoom Out Zoom out continuously Zoom In Zoom in continuously Shutter Automatic Set shutter to automatically control brightness Manual Turn off automatic control of brightness Brighter Increase light level Darker Decrease light level...
-
Page 14: Sidne Feedback Messages
SIDNE Feedback Messages SIDNE® Voice Definition Message “Connected” Berchtold ChromoVision Camera is powered on and connected to SIDNE “Disconnected” Berchtold ChromoVision Camera is connected to SIDNE and then disconnected or turned off “White Balance The Berchtold ChromoVision Camera has completed a white Complete”... - Page 15 The White Balance Command • The Berchtold ChromoVision Camera takes approximately eight seconds to complete the white balance command. During this period, all commands on the tablet and voice interfaces, except “Stop, ” are disabled. When the camera completes the white balance action, all commands on the voice and tablet interfaces will be enabled.
-
Page 16: Troubleshooting
No access to device This problem has several possible causes. Please see through SIDNE® below: EDAM LED stays flashing Contact Stryker Endoscopy or your local Stryker sales red (it should flash green representative for a firmware upgrade. when functioning normally) -
Page 17: Electromagnetic Compatibility
Electromagnetic Compatibility Like other electrical medical equipment, the SIDNE® Berchtold® ChromoVision Camera package requires special precautions to ensure electromagnetic compatibility with other electrical medical devices. To ensure electromagnetic compatibility (EMC), the SIDNE Berchtold ChromoVision Camera package must be installed and operated according to the EMC information provided in this manual. - Page 18 Guidance and Manufacturer’s Declaration: Electromagnetic Emissions SIDNE® Berchtold® ChromoVision Camera package is intended for use in the electromagnetic environment specified below. The customer or the user of SIDNE Berchtold ChromoVision Camera package should ensure that it is used in such an environment. Electromagnetic Environment - Emissions Test Compliance...
- Page 19 Guidance and Manufacturer’s Declaration: Electromagnetic Immunity SIDNE® Berchtold® ChromoVision Camera package is intended for use in the electromagnetic environment specified below. The customer or the user of SIDNE Berchtold ChromoVision Camera package should ensure that it is used in such an environment. Electromagnetic IEC 60601 Compliance...
- Page 20 Guidance and Manufacturer’s Declaration: Electromagnetic Immunity SIDNE® Berchtold® ChromoVision Camera package is intended for use in the electromagnetic environment specified below. The customer or the user of SIDNE Berchtold ChromoVision Camera package should ensure that it is used in such an environment. Power frequency 3 A/m Power-frequency...
- Page 21 Guidance and Manufacturer’s Declaration: Electromagnetic Immunity SIDNE Berchtold ChromoVision Camera package is intended for use in the electromagnetic environment specified below. The customer or the user of SIDNE Berchtold ChromoVision Camera package should ensure that it is used in such an environment. Radiated RF 3 V/m 3 V/m...
- Page 22 NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people. Berchtold® and ChromoVision® are registered trademarks of the Berchtold Corporation. © Stryker and Stryker Endoscopy are registered trademarks of Stryker Corporation. EN-19...
- Page 24 Manufacturer Stryker Endoscopy 5900 Optical Court San Jose, CA 95138 USA 1-408-754-2000, 1-800-624-4422 www.stryker.com P11545 B 2010/01...
