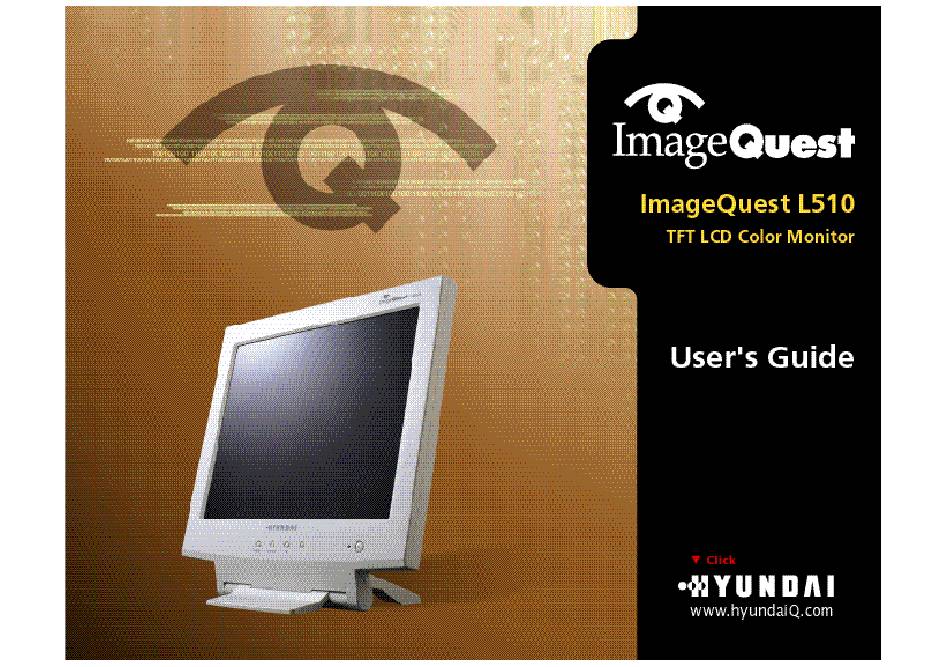

ImageQuest L510 User Manual

Tft lcd color monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NEXT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L510 and is the answer not in the manual?

Questions and answers

Related Manuals for ImageQuest L510

Summary of Contents for ImageQuest L510

  • Page 1 NEXT...
  • Page 2 BACK NEXT...
  • Page 3 BACK NEXT Kind of equipment COLOR MONITOR Type-Designation L15A0C060 Safety : EN 60950 : 1992 + A1, A2, A3, A4 : EN 55022 : 1998, EN 55024 : 1998 EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998 EN 61000-3-3 : 1995 Accredited testlaboratory: TÜV Rheinland Am Grauen Stein...

  • Page 4: Table Of Contents

    BACK NEXT Contents 1. Introduction .......1/17 2. Safety Information ....1/17 3. Installing the monitor ....4/17 3-1. Packing List ........4/17 3-2. Selecting a suitable location ..5/17 3-3. Connecting the monitor ....5/17 3-4. Setting the re f resh rate ....7/17 Preset Timing Table .......8/17 4.

  • Page 5: Introduction

    BACK NEXT 1. Introduction This manual contains instructions for installing and operating ImageQuest L510. ImageQuest L510 is a highly ergonomic color display unit. • 15" viewable XGA LCD • Supporting full scan flicker-free picture quality • With On Screen Display menus for user control •...
  • Page 6 BACK NEXT Be sure to turn the monitor off before plugging the power cord into the socket. Make sure that the power cord and the other cords are securely and rightly connected. Overloaded AC outlets and extension cords are dangerous, as are frayed power cords and broken plugs, which may cause electric shock or fire.
  • Page 7 BACK NEXT Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The unit is not user-serviceable. Remember to unplug the display unit from the power outlet before cleaning. • Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not use thinner or benzene, abrasive cleaners or compressed air.

  • Page 8: Installing The Monitor

    BACK NEXT 3. Installing the The following items should be found in the packaging. monitor 3-1. Packing List Power Cord Signal Cable DVI-D Cable Compact Disc AC/DC Power adapter Above power cord can be changed upon different voltage areas. Please contact your dealer if anything is missing or damaged.

  • Page 9: Selecting A Suitable Location

    BACK NEXT 3-2. Selecting a suitable location • Place the monitor at least 30cm from other electrical or heat-emitting equipment and allow at least 10cm on each side for ventilation. • Place the monitor in a position where no light shines directly onto or is reflected on the screen.
  • Page 10 BACK NEXT Turn on the power to the computer. The picture will appear within about 10 seconds. Adjust the picture to obtain optimum picture quality. See section Adjusting the picture in this guide for more information. 6/18...

  • Page 11: Setting The Refresh Rate

    BACK NEXT 3-4. Setting the refresh Follow the instructions below to set your refresh rate in Windows 98. rate Go to the configuration window(Start-Settings-Configuration window). Double click on the ‘Display’ icon. Click on the ‘Settings’ tab. Click on the ‘Advanced’ button. Click on ‘Adapter’...

  • Page 12: Preset Timing Table

    BACK NEXT Preset Timing Table If the signal from the system doesn't equal to the preset timing mode, adjust the mode with reference to the user guide of videocard because the screen may not be displayed. The recommended setting is a resolution of 1024x768 and a refresh rate of 60Hz. Resolution Horizontal Frequency Refresh rate...

  • Page 13: Adjusting The Picture

    BACK NEXT 4. Adjusting the picture You can adjust the screen display by using the buttons located below the screen. 9/18...

  • Page 14: Using The On Screen Display

    BACK NEXT 4-1. Using the On Screen Push the MENU button to call the OSD to the screen. The resolution and Display frequency are displayed at the top of the menu box for your information. The resolution is displayed only when the monitor works in the preset mode.

  • Page 15: Osd Adjustments

    BACK NEXT 4-3. OSD Adjustments The OSD adjustments available to you are listed below. • ANALOG R.G.B INPUT BRIGHTNESS Adjust the brightness of the screen. You can play the movie file to see how to adjust CONTRAST the picture image by clicking each icon or title Adjust the contrast of the screen.
  • Page 16 BACK NEXT MISCELLANEOUS RECALL Recall the saved color data. OSD TIMER You can set the displayed time of OSD Menu window on the screen by using this adjustment. OSD POSITION Adjusts the OSD menu’s horizontal or vertical position on the screen. AUTO ADJUST You can adjust the shape of screen atomatically at the full screen pattern.
  • Page 17 BACK NEXT CLOCK PHASE PHASE Adjust the noise of the screen image. CLOCK Adjust the horizontal size of the entire screen image. INPUT SELECT This menu used to choose the desired input signal source. There are two available signal source. •...

  • Page 18: Display Power Management

    BACK NEXT 5. Display power If the power management function of your computer is enabled, your monitor management turns on and off automatically. You can control power management features from your computer. Reducing power Your computer may have power management features which enable the computer consumption or monitor to enter a power saving mode when the system is idle.

  • Page 19: Troubleshooting

    BACK NEXT 6. Troubleshooting If your monitor is not functioning properly, you may be able to solve the problem by reading followings. Problem Possible solution Blank screen If the power LED is not lit, push the Soft power switch or check the AC cord to turn the monitor on.
  • Page 20 BACK NEXT Problem Possible solution Color defects Check that the signal cable connector is properly connected and that the connection pins are not bent or damaged. Try another color temperature. Size, position, Adjust the picture characteristics as described in the section shape or quality Adjusting the picture.
  • Page 21 BACK NEXT Contacting service If the above troubleshooting hints do not help you find a solution to the problem, contact an authorized service agent. If the monitor is sent for service, use the original package if possible. Unplug the display unit from the power outlet and contact a service agent when: •...

  • Page 22: Specifications

    BACK 7. Specifications 15"viewable, Diagonal Pixel pitch 0.297 mm, AM-TFT Brightness 35msec, 250cd/m Response Time 35msec Display area 304 X 228 mm Number of color 16,7 million colors Input signals R.G.B Analog, Digital signal(DVI-D), Frequency rate Horizontal : 31.0 to 60.0KHz Vertical : 56 to 75Hz Maximum bandwidth 80 MHz...
