Lorex LW2100 Series Quick Start Manual

COLOR DIGITAL WIRELESS SURVEILLANCE SYSTEM
WITH INDOOR/OUTDOOR NIGHT VISION CAMERA
LW2100 SERIES - QUICk START GUIDE

Getting Started

The Digital Wireless Surveillance System
comes with the following components:
• Digital Wireless Color Cameras*
• Camera* Stands
*
• Slim Wireless Receiver
• Wireless Antenna's for cameras*
and receiver
• Power Adaptors for cameras* and
receiver
• Battery Adaptor Cases for cameras*
• RCA/BNC Adaptor
• RCA Audio/Video Cable
• Instruction Manual
*Number of cameras may vary by model. Check your package for specific
content information.
B. Connect the Receiver for Viewing on a TV or Surveillance System
Attach the included
1 2
Wireless Antenna to the
receiver by screwing it on.
www.lorexcctv.com
The LW2100 series product is expandable.
To order additional cameras please visit our website
at www.lorexcctv.com

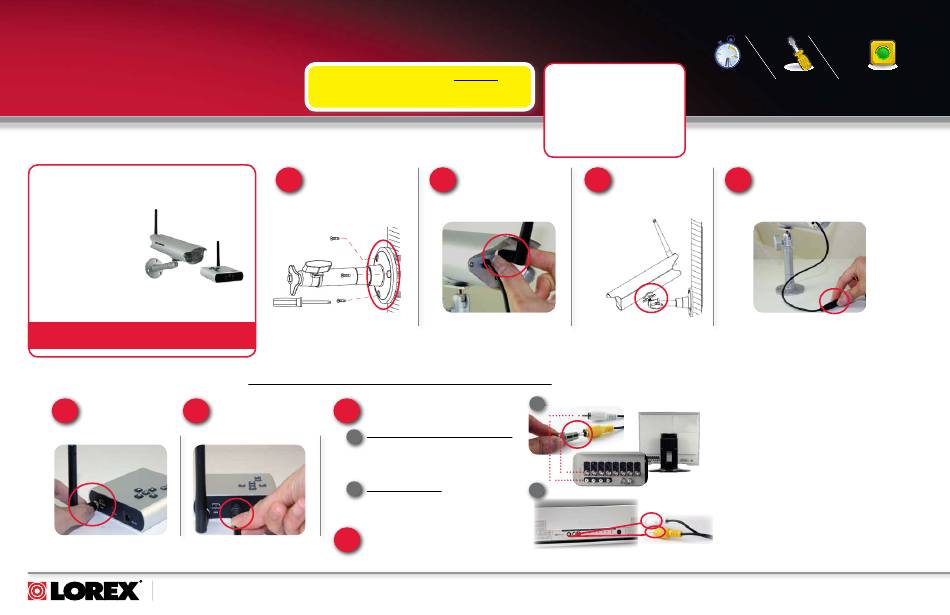

A. Connect the Camera
1 Mount camera stand to
the wall
Connect one end of the RCA View your Camera on any Observation Monitor
3
with BNC inputs or TV with RCA inputs**.
Audio Video Cable to the
Receiver.
Observation Monitor or DVR with BNC:
1
Attach included RCA/BNC adaptor to RCA cable
and plug into Observation Monitor or DVR.
Connect the Audio end of the RCA cable to the
Audio input of the Observation Monitor or DVR.
TV with RCA Inputs:
2
Connect the RCA Video and Audio ends of the
RCA Audio/Video cable to the Video and Audio
inputs on your TV.
4
Connect one end of the Receiver Power Adaptor
to the receiver and the other end to an electrical
outlet.
NOTE: AVOID INSTALLING IN
A LOCATION WHICH REQUIRES
THE WIRELESS SIGNAL TO PASS
THROUGH CEMENT, CONCRETE AND
METAL STRUCTURES. THIS WILL
REDUCE THE
TRANSMISSION RANGE.
2 Connect the Wireless 3 Secure Camera to the
Antenna to the camera. Stand.
1
2
** Requires viewing/recording device with RCA Video or BNC Video
input. Viewing/Recording device sold separately.
under 15 minutes under 30 minutes under 60 minutes
Hand Tools Hardware
Time Tools Skills - Easy
utes*
Under 15 Min Router
Plug & Play connections,
Hand Tools
* Installation time may vary based on On screen set up
application and camera location
Skill Level
Intermediate
easy
4 Connect one end of the Camera Power
Adaptor to the camera and the other
end to an electrical outlet.
Connect power adaptor to local 120V AC power outlet
NOTE: Before you install a camera, carefully plan
where and how it will be positioned, and where you
will route the cable that connects the camera to the
power adaptor or battery adaptor. Before starting
permanent installation, verify its performance by
observing the image on a monitor when the camera
is positioned where it will be permanently installed.
NOTE: Wireless cameras require a power source to
operate (either an electrical outlet or battery power).
If you plan to permanently mount the camera it is
recommended to use the included Camera Power
adaptor to prevent interruptions in the image, as the
battery adaptor is intended for a temporary power
solution.
NOTE: When adding cameras that were not included
in the original box, you will need to pair up the
camera with the receiver. Please refer to the Camera
Pairing Section of the User Manual.
LW2100 Series Quick Start Guide_R2
over 60 minutes Route
Skill Level
Hi Speed
Intermediate
easy
advanced
Page 1
