T-BAR GUTTERMOUNT INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
KIT CONTAINS
1 x Crossbar
2 x Leg
2 x Clamp
2 x U Section
4 x M6 Knob
4 x M6x35 Carriage Bolt

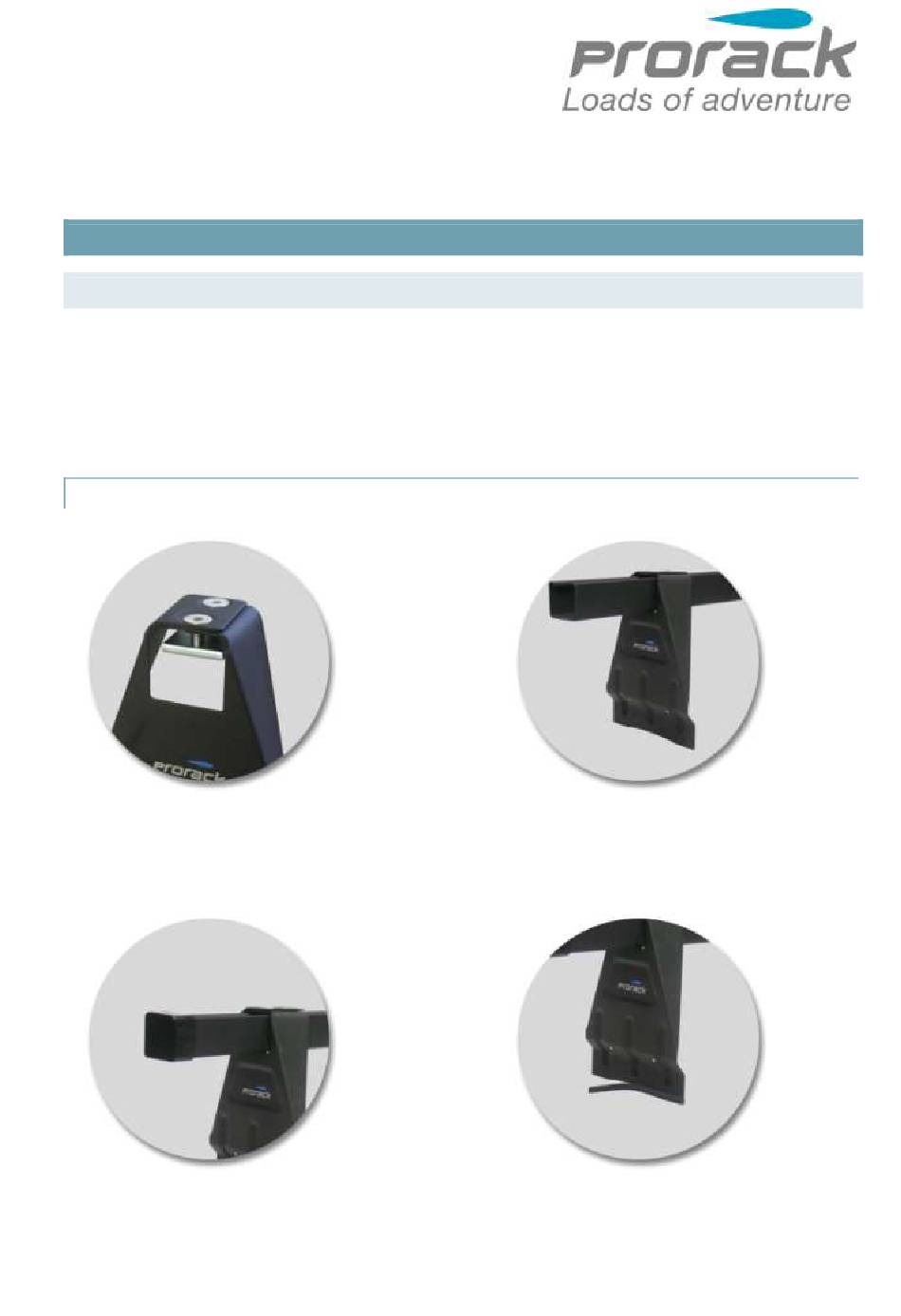

1. CROSSBAR ASSEMBLY
Fit two M8x20 CSK screws through
the top of each leg and start threads
into the threaded plate.
Tap end caps into place on ends of
crossbar.
Contact your Prorack dealer if any parts are missing.
T84HALF | T85HALF | T86HALF
4 x M8x20 CSK Screw
2 x End Plug
2 x Threaded Plates
1 x Allen Key
1 x Rubber Infill
Slide legs onto crossbar.
Attach U section protector strip to base
of each leg
Advertisement
Related Manuals for Prorack T84HALF
Summary of Contents for Prorack T84HALF
- Page 1 1 x Allen Key 4 x M6 Knob 1 x Rubber Infill 4 x M6x35 Carriage Bolt Contact your Prorack dealer if any parts are missing. 1. CROSSBAR ASSEMBLY Fit two M8x20 CSK screws through Slide legs onto crossbar. the top of each leg and start threads into the threaded plate.
- Page 2 T-BAR GUTTERMOUNT INSTRUCTIONS 2. MOUNT CROSSBAR ONTO ROOF Insert two M6x35 carriage bolts through each leg. Fit clamps. Place assembled bar on roof of the vehicle and position legs in gutter ensuring that the crossbar is positioned evenly across the vehicle, i.e. similar length of crossbar protruding from each leg.
-
Page 3: Important Warnings
IMPORTANT WARNINGS Rack Installation Vehicle Driving and Regulations Inadequately secured loads and incorrectly mounted roof The speed driven must be suited to the load transported racks and accessory racks can come loose during travel and to official speed limits. In the absence of any speed and cause serious accidents! Therefore, installation, limits, we recommend a maximum speed of 130 km/h. - Page 4 20 km 50 km 20 km 50 km 11-13-568-Rev1...
- Page 5 XX kg XX kg MAX. MAX. Note: High winds may need additional precautions! Cargo Cargo 17 kg Cargo X,X kg (37 lbs.) (X.X lbs.) Cargo MAX. Cargo 11-13-568-Rev1...
- Page 6 Note: High winds may need XX m XX m additional precautions! 11-13-568-Rev1...
-
Page 7: Warranty And Disclaimer
If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at:...
