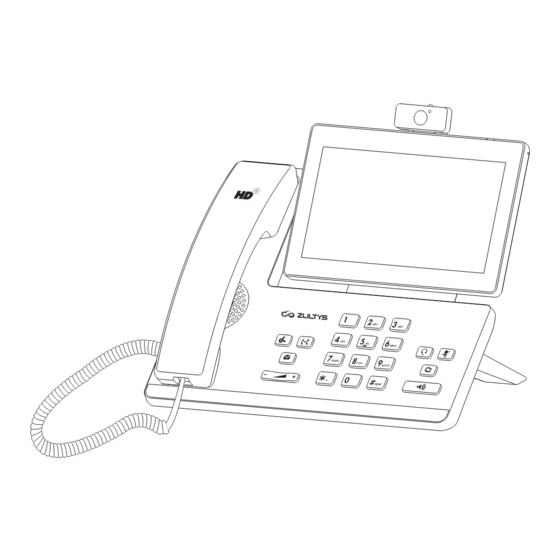

Smart Media Phone
ZIP 49G
Quick Start Guide
WWW.ZULTYS.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Media Phone and is the answer not in the manual?

Questions and answers

Summary of Contents for Zultys Smart Media Phone

  • Page 1 Smart Media Phone ZIP 49G Quick Start Guide WWW.ZULTYS.COM...
  • Page 2: Packaging Contents

    (Optional) Note: The USB camera is an optional accessory for the ZIP 49G IP phone. We recommend that you use the accessories provided or approved by ZULTYS. The use of unapproved third-party accessories may result in reduced performance or damage.
  • Page 3 3. Attach the optional wall mount bracket, as shown below: D C 5 V P C I n t e r n e t D C 5 V P C I n t e r n e t Note: The reversible tab has a lip which allows the handset to stay on-hook when the phone is mounted vertically.
  • Page 4 IEEE 802.3af compliant PoE Switch Note: The IP phone should be used with a ZULTYS original power adapter (5V/2A) only or connected to an IEEE 802.3af compliant PoE switch. The use of a third-party power adapter may cause damage. 7. Connect to the network, as shown below: There are two options for network connection.
  • Page 5: Hardware Components

    Hardware Components D C 5 V P C I n t e r n e t Item Item Item TRANSFER Key Hookswitch Camera Camera Lens Power Indicator LED HOLD Key Camera Indicator LED MESSAGE Key Touch Screen HEADSET Key Volume Key Shutter Switch MUTE Key Keypad...
  • Page 6: Using Your Phone

    Startup After the IP phone is connected to the network and supplied with power, it automatically begins Welcome a process of initializing on the network and downloading its configuration information. nitializing... Please wait Register status icons on the touch screen: (Gray) Register Failed (Green and Flashing)
  • Page 7 Using the Touch Screen By default, the IP phone supports three idle screens. The home screen displays as below: Status Bar Digital Clock Widget Phone Dialer Directory History Tap to expand key display Android Keys Screen Indicator To navigate the touch screen: Swipe left or right to switch among different idle screens.
  • Page 8: Basic Call Features

    Entering and Updating Data To use onscreen keyboard: 1.Tap the input field, the onscreen keyboard will display on the touch screen: Tap to backspace. Label automatically to identify the context-sensitive features. Tap Next to go to next field. Tap Done to confirm the settings. Tap Send to dial out the number.
  • Page 9 Ending a Call Using the handset: Hang up the handset or tap the EndCall soft key. Using the speakerphone: Press or tap the EndCall soft key. Using the headset: Tap the EndCall soft key. Redial to enter the Placed Calls list, and then tap the desired entry. Press Press twice when the phone is idle to call the last dialed number.
  • Page 10: Customizing Your Phone

    Call Conference 1. During an active call, swipe left on the soft keys then tap Conference. The call is placed on hold. or tap Conference. 2. Enter the number of the second party, and then press 3. Tap the Conference soft key again when the second party answers. All parties are now joined in the conference.
  • Page 11 My Details Name Extension ZAC/MXIE Login Credentials Login Name (case sensitive) Password Host/URL Assigned Phone ID Support Contact Phone Email Notes...
  • Page 12 Zultys is the global provider of a true all-in-one unified communications solution. Innovative, reliable and scalable, Zultys IP phone systems integrate voice, video, data and mobility in a single premise based appliance or in the cloud - to optimize collaboration for businesses of all sizes.
