Remaco PLT-416 Installation Manual

C COPYRIGHTS 1998
Warning

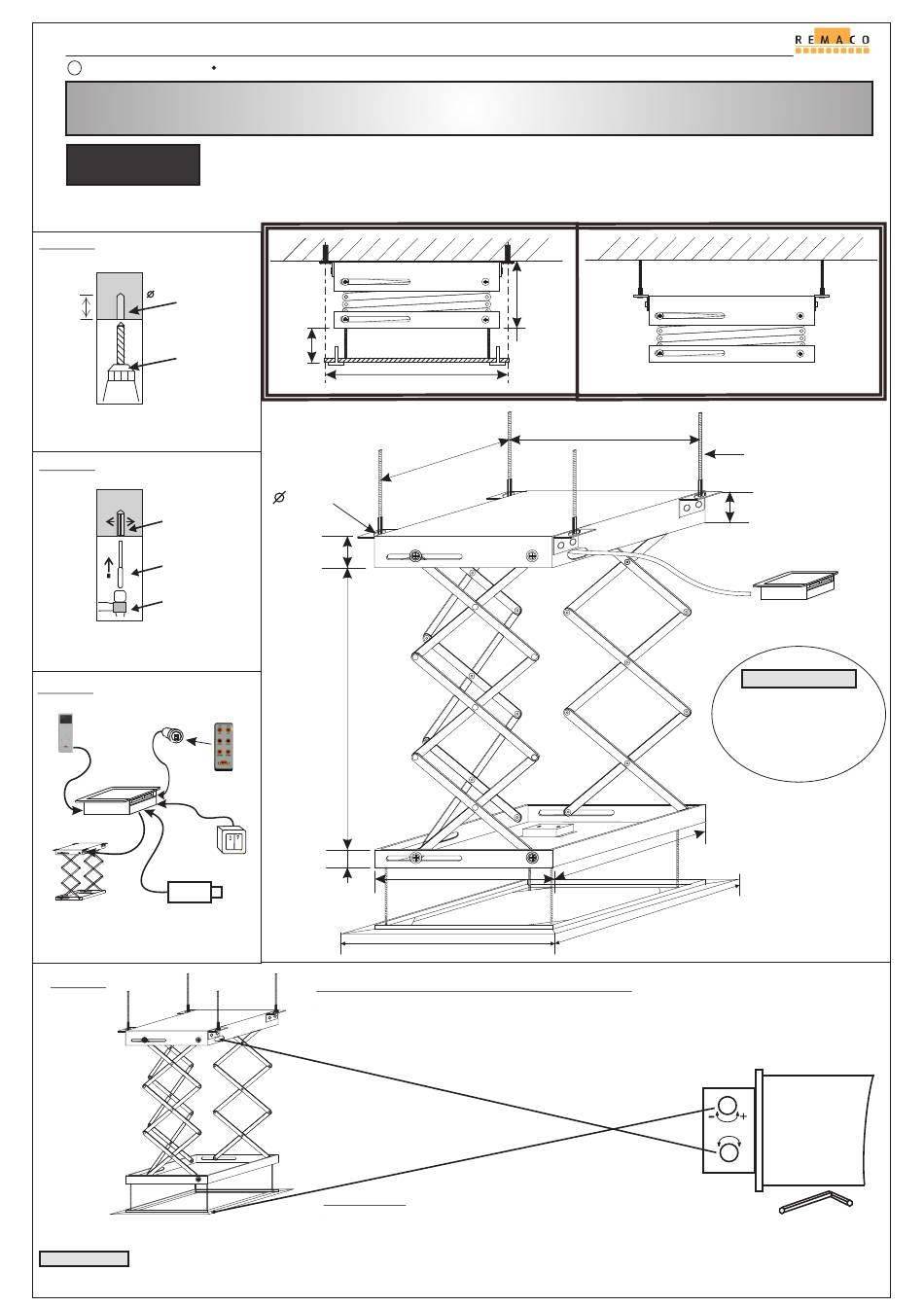

Steps for Installation
Step 1
10mm Drill
35
Power Drill
A) Drill Dia. 10mm holes to a depth of 35mm.
(Note: Do not drill too deep)
Step 2
M8 Anchor
Pin Punch
Hammer
B) Insert M8 anchor into the hole.
C) Use pin punch to expand the anchor.
Step 3
AVA-210A
Sensor
AVA-316
15-Channel
RF Remote
AVA-301
2-Channel
Infrared Remote
MPC-851
Motor Power Control
Projector Lift Projector
D) Connection of all cables to the MPC-851
(Refer to Installation Guide for MPC-851)
Step 4
Important Note
Do not adjust the Upper Limit of the lift higher than the original factory preset position. If adjusted, the lift will move into the frame and be stopped by force and not the Upper
Limit Switch. This will cause overheating of the motor, rendering the lift to being unable to operate properly.
REMACO TECHNOLOGIES PTE LTD
Installation Guide (PLT-416)
Caution with main supply and live wires. Install with qualified technician or trained
personnel.
Back
Adjustable
Ceiling Mount
20-32cm
12 x 4 Nos.
10.0cm
Adjustable
24cm
to
320cm
DOWN STOP UP
5.50cm
AVA-200
Wall Switch
Upper Limit (no need adjust unless required)
Frame
Press "UP button" and adjust motor upper limit " - " (lift move away
from the frame) Then adjust upper limit " + " and let the lift move
more into the frame until reaches maximum height (scissor bars just
about fully close)
Lower Limit
Press "Down button" and adjust motor lower limit "-" to have
less drop first. Adjust lower limit "+" to let lift have more drop
to required height.
Types of Installation Mount
Front
39.0 cm
55.0cm
c m
6 4 . 5
50.8cm
55.0cm
Website: www.remacotech.com
Back
Ceiling Suspension
55.0cm
M8 Threaded
(Optional)
10.00cm
Motor Power Control
Important Note
All connections
are to the MPC
For connection details,
please refer to the
Installation Guide
0 c m
7 0 .
0 c m
8 2 .
-
+
Alen Key Adjusting Tool
(to set knob limit switch)
V: 4.4
PLT
Front
Connect
to the MPC
MPC-851
provided
Bottom View
(Motor)
White Knob
(lower limit)
Yellow Knob
(upper limit)
