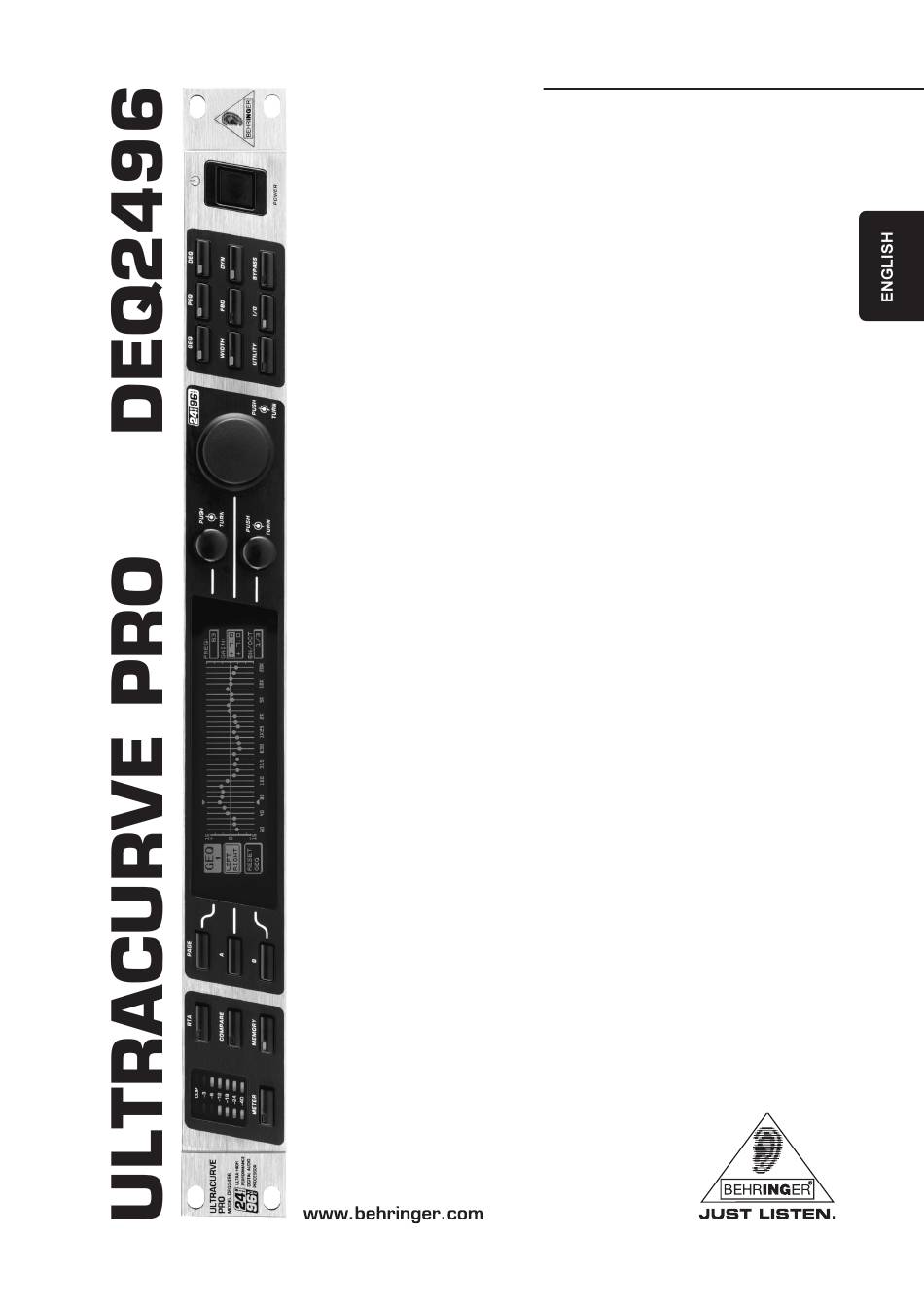

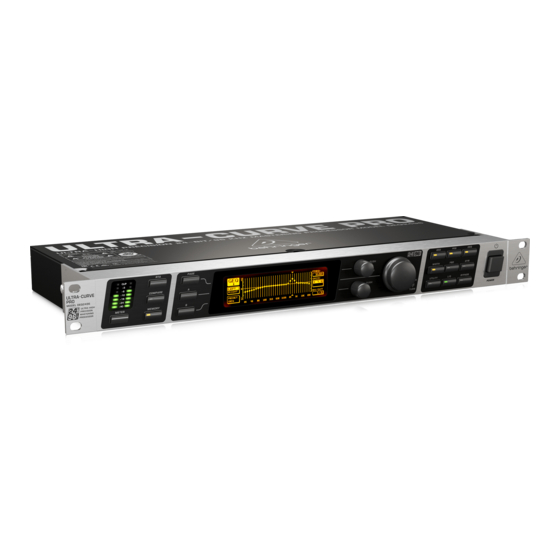

  • Page 1 User’s Manual Version 1.1 July 2003...
  • Page 2 ULTRACURVE PRO DEQ2496 IMPORTANT SAFETY INSTRUCTIONS...
  • Page 3 ULTRACURVE PRO DEQ2496 MENU STRUCTURE MENU STRUCTURE...
  • Page 4 ULTRACURVE PRO DEQ2496 ULTRACURVE PRO Ultra high-precision digital 24-bit/96 kHz EQ/RTA mastering processor s Ultra high-resolution processor for all EQ, RTA and dynamic applications, especially for PA and audiophile mastering s 4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer...

  • Page 5: Table Of Contents

    ULTRACURVE PRO DEQ2496 FOREWORD TABLE OF CONTENTS 1. INTRODUCTION ............6 2. CONTROL ELEMENTS ..........6 3. MENU STRUCTURE AND EDITING ......8 4. APPLICATIONS ............17 5. CONNECTIONS ............19 6. OPERATING SOFTWARE .......... 20 7. SPECIFICATIONS ............. 20...

  • Page 6: Introduction

    ULTRACURVE PRO DEQ2496 2. CONTROL ELEMENTS 1. INTRODUCTION 2.1 Front panel Fig. 2.1: LED meter and menu keys METER METER 1.1 Before you get started 1.1.1 Shipment COMPARE COMPARE COMPARE (complete (module only) preset) 1.1.2 Initial operation WIDTH UTIL BYPASS...
  • Page 7 ULTRACURVE PRO DEQ2496 PAGE DATA WHEELS Fig. 2.5: Digital interfaces and RTA microphone input AES/EBU AUX OUT RTA/MIC IN Fig. 2.3: The menu keys of the DEQ2496 POWER Fig. 2.6: Input and output connectors 2.2 Rear panel Fig. 2.4: Mains, MIDI and wordclock connectors...

  • Page 8: Menu Structure And Editing

    ULTRACURVE PRO DEQ2496 3. MENU STRUCTURE AND EDITING currently selected 3.1 General operation and display structures 3.2.2 PEQ menu Fig. 3.2: PEQ menu (page 1) 3.2 Equalizer modules 3.2.1 GEQ menu Fig. 3.3: PEQ menu (page 2) Fig. 3.1: GEQ menu...
  • Page 9 ULTRACURVE PRO DEQ2496 high-shelving band-pass Fig. 3.5: DEQ menu (page 2) 3.2.3 DEQ menu Explanation: Fig. 3.6: DEQ menu (page 3) HWWLQJV Fig. 3.4: DEQ menu (page 1) 02'( )5(4 1.00 kHz 0*$,1 +15 dB > continuous line 0 dB > broken line -15 dB >...
  • Page 10 ULTRACURVE PRO DEQ2496 Fig. 3.7: Filter curves with signal above/below the threshold 3.2.4 FBD menu Fig. 3.8: FBD menu (page 1) Ï Fig. 3.10: FBD menu (page 3) Fig. 3.9: FBD menu (page 2) 3.MENU STRUCTURE AND EDITING...
  • Page 11 ULTRACURVE PRO DEQ2496 < 3.4 DYN menu 3.3 WIDTH menu Fig. 3.13: DYN menu (page 1) Explanation: compressor expander Fig. 3.11: WIDTH menu (page 1) Fig. 3.12: WIDTH menu (page 2) Fig. 3.14: DYN menu (page 2) 3. MENU STRUCTURE AND EDITING...
  • Page 12 ULTRACURVE PRO DEQ2496 3.4.1 LIMITER menu Fig. 3.15: LIMITER menu Fig. 3.17: Graphic equalizer without frequency response correction (UNCORRECTED) 3.5 UTILITY menu Fig. 3.18: Graphic equalizer with frequency response correction (TRUE RESPONSE) Fig. 3.16: UTILITY menu (page 1) 3. MENU STRUCTURE AND EDITING...
  • Page 13 ULTRACURVE PRO DEQ2496 3.6 I/O menu Fig. 3.20: I/O menu (page 1) Fig. 3.19: UTILITY menu (page 2) Fig. 3.21: I/O menu (page 2) Fig. 3.22: I/O menu (page 3) 3. MENU STRUCTURE AND EDITING...
  • Page 14 ULTRACURVE PRO DEQ2496 3.8 RTA menu (Real-Time Analyzer) Fig. 3.23: I/O menu (page 4) Fig. 3.25: RTA menu (page 1) 3.7 BYPASS menu Fig. 3.24: BYPASS menu Fig. 3.26: RTA menu (page 2) 3. MENU STRUCTURE AND EDITING...
  • Page 15 ULTRACURVE PRO DEQ2496 Fig. 3.27: RTA menu (page 3) Fig. 3.30: AEQ menu (page 3) 3.8.1 AUTO EQ function (AEQ) Fig. 3.28: AEQ menu (page 1) 3.9 MEMORY menu Fig. 3.31: MEMORY menu (page 1) Fig. 3.29: AEQ menu (page 2)
  • Page 16 ULTRACURVE PRO DEQ2496 Fig. 3.34: METER menu (page 2) Fig. 3.32: MEMORY menu (page 2) Fig. 3.35: METER menu (page 3) 3.10 METER menu 3.11 RTA/MIC input 3.11.1 Connecting a measurement microphone Fig. 3.33: METER menu (page 1) 3.11.2 Connecting a line signal...

  • Page 17: Applications

    ULTRACURVE PRO DEQ2496 4. APPLICATIONS 4.1 Sum-signal equalizer for live applications Fig. 4.1: The ULTRACURVE PRO as sum-signal equalizer Fig. 4.2: Positioning the measurement microphone 4. APPLICATIONS...
  • Page 18 ULTRACURVE PRO DEQ2496 Fig. 4.3: Several ULTRACURVE PROs in a monitor system 4.2 Equalizer in the monitor path 4.3 Using the ULTRACURVE PRO in the studio 4.4 Using the ULTRACURVE PRO as a delay unit 4. APPLICATIONS...

  • Page 19: Connections

    ULTRACURVE PRO DEQ2496 Fig. 5.1: XLR connectors Fig. 4.4: Run-time correction in a sound reinforcement system using the ULTRACURVE PRO 5. CONNECTIONS 5.1 MIDI connections Fig. 5.2: 1/4" TS connector 5.2 Analog connections Fig. 5.3: 1/4" TRS connector 5.3 Digital connections (AES/EBU and S/PDIF) 5.

  • Page 20: Operating Software

    ULTRACURVE PRO DEQ2496 5.4 WORDCLOCK connection Ω Ω 6. OPERATING software Ω 7. SPECIFICATIONS ® Ω Ω Ω Ω 7. SPECIFICATIONS...
  • Page 21 ULTRACURVE PRO DEQ2496 7.1 MIDI implementation XQFWLRQ 6HQG 5HFHLYH 1RWHV Midi Channel 1...16 1...16 Mode Note Number Velocity After Touch Pitch Bender Control Change 1-31 Y (Range: 0-61) Y (Range: 0-61) GEQ Left (20Hz…20kHz) 33-63 Y (Range: 0-61) Y (Range: 0-61) GEQ Right (20Hz…20kHz)

  • Page 22: Warranty

    ULTRACURVE PRO DEQ2496 8. WARRANTY ® ® BEHRINGER is a BEHRINGER. 8. WARRANTY...
