Seastar Solutions HH4311 Installation Instructions

Mounting the Helm
Drilling the Hole
WARNING

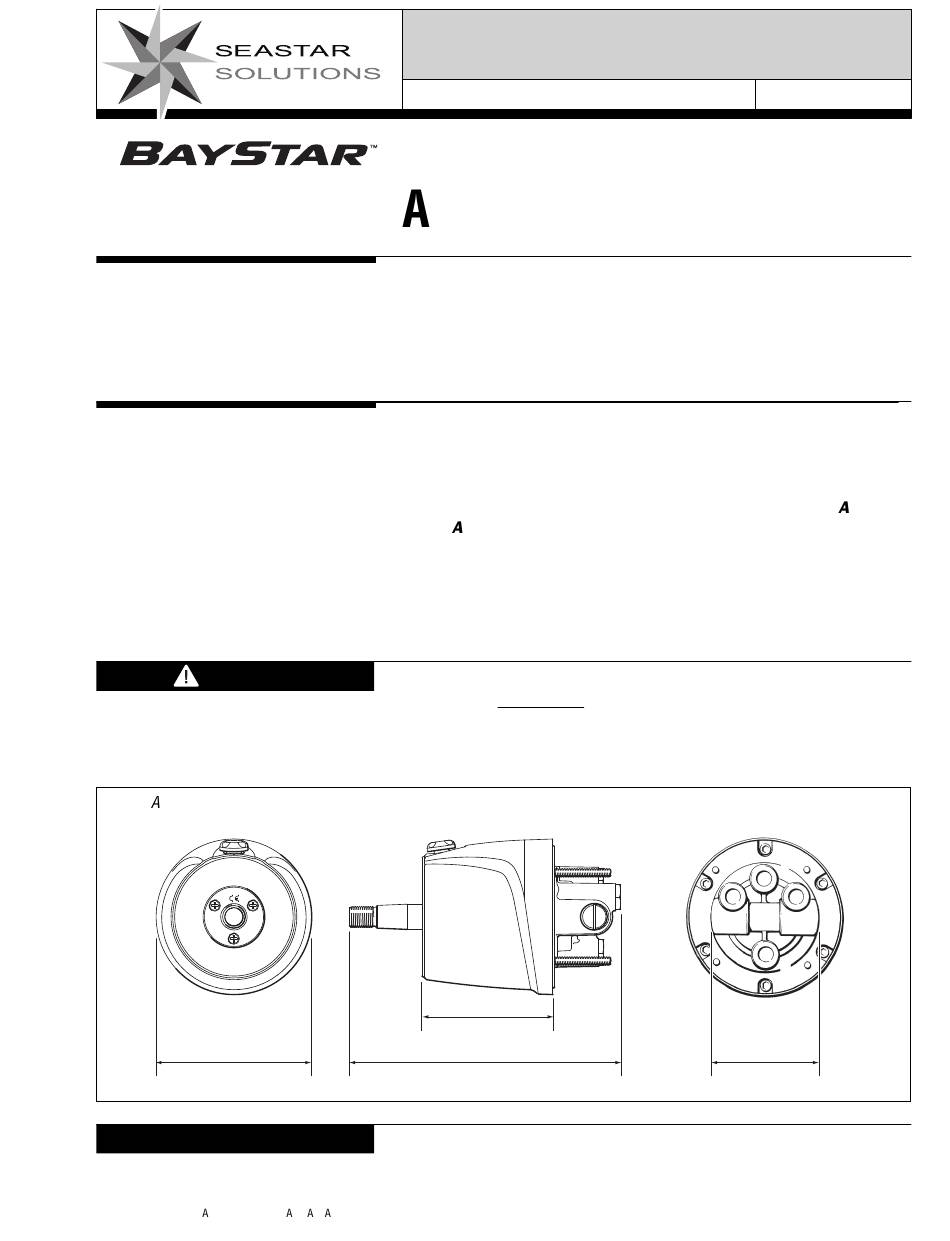

Figure .
4-5/8"
(118 mm)
NOTICE
© 2007 Marine Canada cquisition Inc. DB SE ST R SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6

INSTALLATION INSTRUCTIONS

Copy Part# 764608, Rev. D, 09/2013
HELM PUMPS HH4311
ND HH4314
Determine desired mounting position of the BayStar Helm pump.
Ensure that the steering wheel will not interfere with any other
functional equipment. Check for adequate space behind the
dash. The BayStar Helm Pump can be installed with the shaft in
the horizontal, vertical or any angle in between. The filler plug
must always be in the uppermost position.
Using the mounting plate on page 2, use the following steps to
make an accurate and clean cut into the dash.
1. Tape the template to the dash and use a center punch for
locating the holes on dash, or photocopy if required to use as
a drilling template. If a photocopy is required check LL
ME SUREMENTS as per the template to ensure that the
photocopied template is true and correct.
2. Before drilling the holes, check that the helm location will allow
unrestricted movement of the steering wheel.
3. Drill the 3" diameter center hole and the four 5/16" diameter
mounting holes, positioned as shown.
Cleaning fluids containing ammonia, acids or any other corrosive
ingredients MUST NOT be used for cleaning any part of this
Hydraulic Steering System. Failure to comply will cause serious
damage to the steering system, resulting in possible loss of
steering, causing property damage, personal injury and/or death.
3-15/16"
(100 mm)
7-15/16" (200 mm)
To ease installation, it is recommended that you install the hose
fittings into the rear of the helm pump prior to mounting. See NPT
fitting installations on page 2.
Page 1 of 2
3" DIA.
(76 mm)
