U-Prox HE Installation Manual

Features


Power:
o
Micro USB B
o
IEEE 802.3af PoE: power class 1, up to 3,84W

Direct operation with U-Prox IP500 repeaters
o
ISM band (
o
Guaranteed range of 20 m
o
U-Prox HE connection interface - Ethernet

One micro USB B port for network settings configuring and firmware upgrade

Isolated Ethernet port, 10BASE-T/100BASE-TX, 802.3af PoE

U-Prox HE adjusted with U-Prox IP software and supports automatic configuration for one-range
network.

Temperature range: 0 - +55

Maximum relative humidity 80% without condensation

Panel

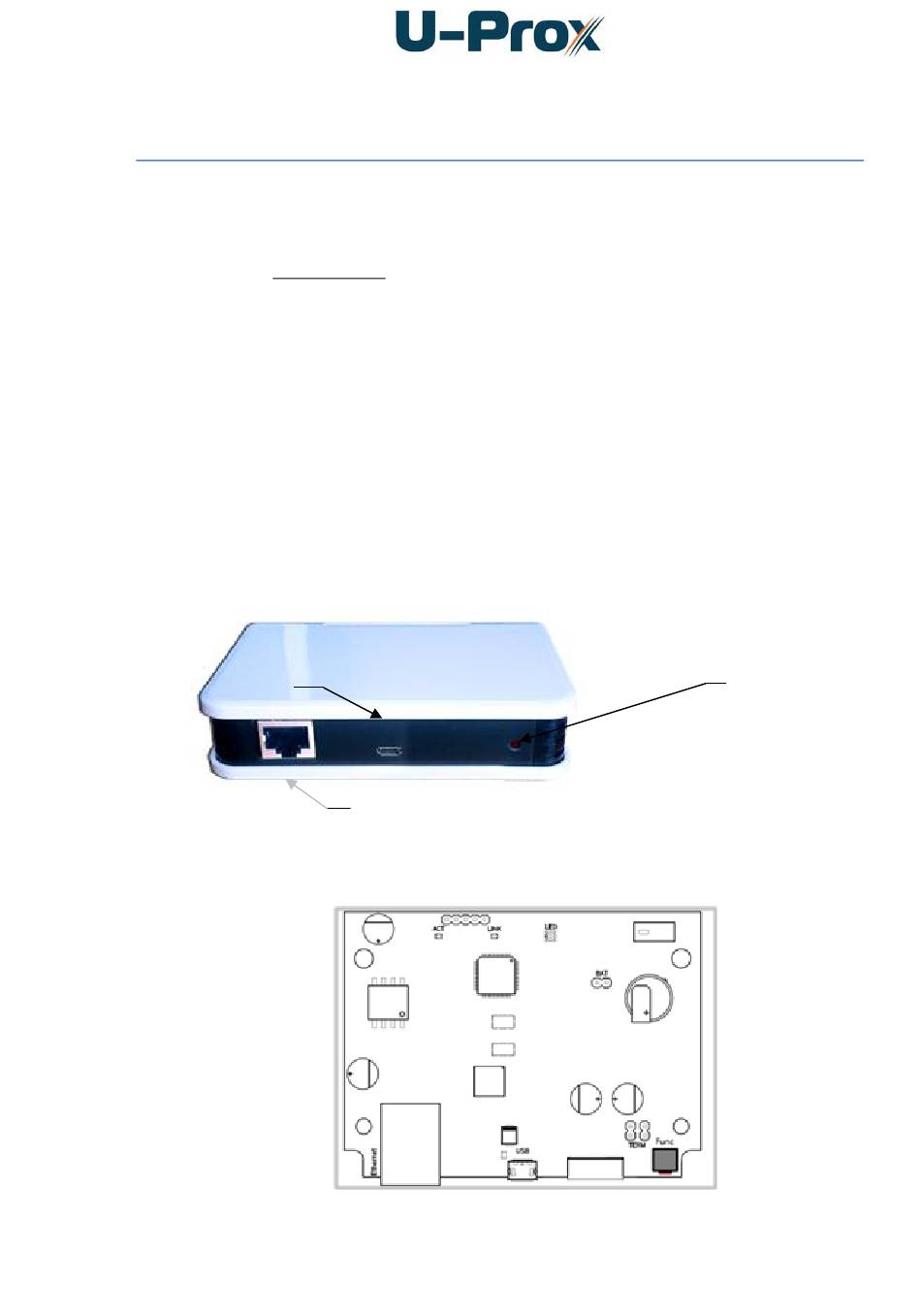

The view of the Device is shown in Fig. 1
2
Location of jumpers and connectors on Device board and their function shown on Fig. 2:
U-P
ROX
I
NSTALLATION MANUAL
915.5-927.5 MHz ) device with bi-directional communication
0
C at 80% relative humidity.
1
Figure 1. U-Prox HE
Figure 2. U-Prox HE board
HE
3
1. Ethernet port
2. Micro USB B port
3. Reset button
